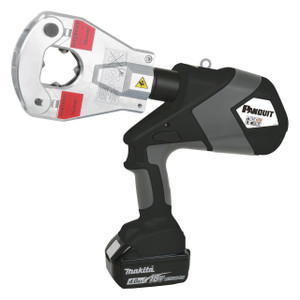

Panduit CT-2600/LBT BlackFin™ Hydraulic Crimp Tool
The Panduit CT-2600/LBT is a professional-grade hydraulic crimping tool engineered for high-volume battery, UPS, and power distribution installations where consistent, code-compliant terminations are non-negotiable. Part of Panduit's BlackFin™ tool family, this hydraulic crimper delivers 12 tons of controlled compression force to seat lugs and connectors with repeatable precision—eliminating the fatigue, inconsistency, and safety risks of manual ratchet crimpers on large-gauge conductors. Built to OSHA-mandated UL 60745-1 and CSA C22.2 No. 60745-1 standards for handheld motor-operated tools, the CT-2600/LBT is the reference crimper for datacenter battery strings, industrial UPS arrays, and mission-critical 2/0–750 MCM copper terminations where a single cold joint can cost six figures in downtime.
Key Features
- Hydraulic Compression System — 12-ton controlled force ensures full 360° connector compression with zero operator variability, meeting NEC 110.14(A) torque and pull-test requirements on every crimp
- BlackFin™ Professional Series — Panduit's contractor-grade tool line built for 10,000+ crimp duty cycles with field-serviceable hydraulic cartridges and hardened steel dies
- OSHA-Compliant Safety — UL 60745-1 and CSA C22.2 No. 60745-1 listed for electrical and mechanical product safety; anti-kickback valve and two-stage trigger prevent accidental actuation
- Panduit Connector Ecosystem — Factory-matched to Panduit LCD/LCC compression lugs, reducing installer liability from mismatched tooling on critical power circuits
- Ergonomic 14.2" Design — Balanced 360mm handle length and 3" width reduce wrist strain during repetitive battery-string work; 4.9" head profile fits tight cabinet interiors and switchgear deadfronts
- Field-Proven Reliability — Sealed hydraulic reservoir and corrosion-resistant finish survive job-site dust, humidity, and the thermal cycling of unfinished mechanical rooms
Installing battery banks for a 200 kVA UPS means terminating forty or more 2/0 AWG cables to bus bars and breaker lugs—work that destroys hands and shoulders with manual crimpers and invites cold joints when installer fatigue sets in after the fifteenth crimp. The CT-2600/LBT's hydraulic system applies consistent 12-ton compression across the entire connector barrel in under three seconds, delivering uniform contact resistance and pull strength regardless of operator strength or experience level. The tool's two-stage trigger requires deliberate actuation to prevent accidental crimps in crowded cabinets, while the hydraulic anti-kickback valve locks the ram at full compression until you release—no partial crimps, no tool chatter, no do-overs with a new lug after you've already cut and stripped six feet of welding cable.
BlackFin™ tools are Panduit's answer to integrators who've blown through consumer-grade crimpers on their third data hall build. The CT-2600/LBT uses a field-replaceable hydraulic cartridge and hardened steel die sets rated for 10,000+ compression cycles before requiring factory service—compare that to disposable ratchet tools that lose calibration after 500 crimps. The tool's 14.2" overall length and 3" width provide leverage and control without the bulk of benchtop hydraulic presses; you can work inside 24" APC NetShelter cabinets, reach battery terminals in tight Eaton 9395 UPS enclosures, and crimp feed lugs on Schneider Electric switchgear without pulling the entire bus assembly. The 4.9" head length keeps the die jaws clear of adjacent terminals and cabinet walls—critical when you're landing six parallel 4/0 cables on a single breaker lug and can't afford to nick insulation or short phases.
Code compliance on power distribution work isn't optional, and inspectors know the difference between a hydraulic crimp and a hand-crimped "good enough." The CT-2600/LBT meets NEC 110.14(A) requirements for conductor termination integrity by delivering manufacturer-specified compression ratios on Panduit LCD and LCC series lugs—documentation you'll need for AHJ signoff on commercial battery rooms and utility interconnects. UL 60745-1 and CSA C22.2 No. 60745-1 listings confirm the tool itself meets OSHA mandates for electrical and mechanical safety on handheld motor-operated equipment, protecting both the installer and the GC's liability policy. When you're crimping 1/0 AWG battery interconnects twelve inches from 480V bus bars in an energized switchgear lineup, you want tooling that's been drop-tested, insulation-tested, and EMI-tested by a third-party NRTL—not a no-name import with a CE mark sticker.
This tool is factory-matched to Panduit's compression connector family, which matters more than most installers realize. Lug barrel dimensions, die geometry, and compression force are interdependent variables—swap in a off-brand crimper and you might under-compress (high resistance, failed pull test) or over-compress (deformed conductor strands, reduced ampacity). Panduit publishes crimp charts that pair specific CT-series tools with specific LCD/LCC lug part numbers for each wire gauge, giving you a defensible paper trail if a termination ever fails. That traceability is why mission-critical sites—hospital battery plants, 911 dispatch UPS systems, wastewater lift-station controllers—specify Panduit end-to-end rather than mixing tooling from three vendors and hoping for the best.
Real-world deployment: datacenter battery strings (fifty-two 12V 100Ah blocks wired series-parallel), commercial UPS installations (parallel 4/0 AWG feeds from transfer switches), industrial motor control centers (breaker lug terminations on 480V feeders), and renewable energy combiner boxes (solar array home-runs to charge controllers). The CT-2600/LBT handles the entire 2/0 through 750 MCM range with die set changes, making it the one hydraulic crimper you need for everything from access control power supplies (10 AWG pig-tails) to main electrical room bus duct taps (500 MCM aluminum). Integrators running multiple battery jobs keep a CT-2600/LBT in every service van; the tool pays for itself in labor savings after the second UPS retrofit when you're not hand-pumping a ratchet crimper 80 times per lug.
The CT-2600/LBT ships as a single-unit package with operator manual and factory calibration certificate. Panduit's North American service network provides die set upgrades, hydraulic cartridge replacement, and recalibration services with documented traceability to NIST standards—critical for contractors working under ISO 9001 quality systems or government DCAA audits. This is a tool you'll use for a decade across hundreds of jobs, not a disposable commodity that ends up in the scrap bin after the warranty expires. When your contract requires "compression terminations per manufacturer specifications" and the inspector wants to see your tooling calibration records, the CT-2600/LBT delivers the documentation and performance that keeps projects on schedule and out of litigation.
