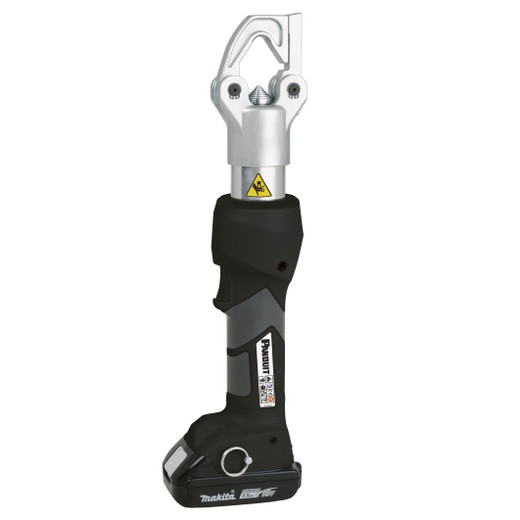

Panduit CT-3980/BT BlackFin™ Hydraulic Crimp Tool

The Panduit CT-3980/BT BlackFin hydraulic crimp tool delivers repeatable, spec-compliant compression terminations for power distribution, grounding, and battery interconnect in datacenters, UPS rooms, and critical infrastructure. Designed for Panduit compression connectors across wire gauges commonly deployed in rack PDU feeds, building entrance grounding electrodes, and standby-power systems, this battery-powered hydraulic unit eliminates the fatigue and inconsistency of manual ratchet tools while meeting OSHA-mandated electrical and mechanical safety requirements under UL 60745-1 and CSA C22.2 No. 60745-1. When you're terminating dozens of lugs on a multi-rack deployment or bonding conductors in a telecommunications grounding busbar, hydraulic precision matters—under-crimped connections fail IR testing or create hot spots under load; over-crimped terminations crack strands and violate NEC 110.14. The CT-3980/BT applies controlled, calibrated force cycle after cycle, so every crimp seats fully without deforming the barrel or stressing the conductor.

Key Features

• Hydraulic compression precision — battery-powered pump delivers consistent force across the full crimp cycle, eliminating operator variance and ensuring gas-tight connections that meet NEC and manufacturer torque specs
• OSHA-compliant handheld electric tool — certified to UL 60745-1 and CSA C22.2 No. 60745-1 for electrical and mechanical safety; required for jobsites subject to OSHA 1926 Subpart K and NFPA 70E arc-flash protocols
• Compact field-service dimensions — 16.3" overall height, 4.9" length, 3" width (413.5 × 124.5 × 75 mm); fits in standard tool bags and allows access to crowded terminal blocks, busbar stacks, and recessed UPS battery posts
• BlackFin platform compatibility — engineered for Panduit compression connectors including two-hole lugs, grounding C-taps, splice sleeves, and pin terminals across aluminum and copper conductor ranges
• Single-unit packaging — ships individually with protective case; no mixed SKUs or bulk cartons that force you to inventory unused dies or split kits across field teams

Battery-cable terminations in three-phase UPS paralleling cabinets, generator transfer-switch feeds, and solar combiner-box interconnects demand crimp integrity that survives thermal cycling, vibration, and decades of service without retorquing. Manual tools introduce variables—grip strength, ratchet position, hurried cycles at the end of a long install day. Hydraulic crimpers remove those variables. The CT-3980/BT's motor-driven pump advances the piston at controlled speed; the die closes until it reaches programmed force, then retracts. You get the same pull-test result on lug one and lug forty. For datacenters deploying hot-aisle containment with overhead busway drops, or telecom COs bonding vertical cable tray to building steel every ten feet per J-STD-607-B, that consistency translates to passing inspection without re-work and zero callbacks for loose connections flagged by IR scans six months post-install.

UL and CSA certification under the 60745-1 handheld electric tool standard addresses jobsite realities: double-insulation requirements protect technicians working near energized enclosures; mechanical-strength tests simulate drop impacts on concrete floors; guarding prevents accidental contact with the moving die during crimp. Many jurisdictions and prime contractors mandate UL-listed tools for work inside electrical equipment—an uncertified crimper can void your site access or trigger stop-work orders during AHJ inspections. The CT-3980/BT carries both UL and CSA marks, clearing North American code requirements and simplifying your tool-audit paperwork for jobs spanning multiple states or provinces. OSHA 1926.302(a) explicitly requires that handheld power tools meet the design-safety standards of a nationally recognized testing lab; this crimper's certifications check that box, keeping your crews compliant on commercial construction sites governed by federal OSHA or state plans.

Dimensions matter when you're reaching behind rack-mounted rectifiers to terminate battery strings, or crimping lugs inside shallow junction boxes on rooftop solar arrays. At 16.3 inches tall and three inches wide, the CT-3980/BT noses into spaces where bulky hydraulic hand-pumps won't fit and where a manual ratchet tool would require you to reposition six times per crimp. The 4.9-inch length keeps the tool from levering against adjacent cable bundles or cabinet walls when you squeeze the trigger. Panduit engineering balanced the hydraulic reservoir, battery pack, and motor housing to put the center of gravity near your grip—critical for overhead crimps on vertical power-distribution risers or under-floor work in raised-floor datacenters. You're not fighting the tool's weight, so you can focus on aligning the lug barrel with the die window and keeping the conductor strands seated while the ram advances.

The BlackFin ecosystem spans compression connectors for wire gauges from #6 AWG through 750 kcmil, stud sizes from 1/4-inch through 5/8-inch, and configurations including straight-barrel lugs, narrow-tongue lugs for crowded terminal blocks, offset lugs for tight-radius bends, and two-hole mounting lugs for heavy-fault-current paths. Your crimp tool needs to handle that range without die changes mid-job or cross-compatibility guesswork. The CT-3980/BT accepts Panduit's modular die sets (sold separately) indexed by wire size and connector series; swap the die, confirm the force setting matches the connector spec sheet, and you're ready for the next gauge. For integrators running structured-cabling projects that include TR grounding, backbone riser feeds, and entrance-facility AC distribution, one crimper body with a rotating die inventory covers lugs, splices, and taps across copper telecommunications bonding-backbone conductors and aluminum service-entrance feeders.

Battery-electric operation eliminates the hydraulic hand-pump's thirty strokes per crimp and the manual ratchet's four to eight handle cycles. Trigger pull, three-second crimp, release—done. When you're installing battery strings with forty lugs per cabinet across six UPS modules, that cycle-time reduction compounds. Faster crimps also mean shorter dwell time with the conductor exposed; in humid coastal datacenters or industrial plants with airborne particulates, minimizing the window between strand prep and crimp closure reduces oxidation on aluminum and tarnish on copper that can elevate contact resistance. The hydraulic system's auto-retract feature prevents you from leaving the die closed on the lug—an easy mistake with manual tools that can deform annealed copper and create stress risers where the conductor exits the barrel. Controlled retraction also protects the die faces from peening damage that shortens tool life and leaves crimp marks outside the connector manufacturer's dimensional tolerances.

Jobsite durability reflects design choices: motor-brush quality, seal materials in the hydraulic cylinder, impact resistance of the housing. Panduit specifies the CT-3980/BT for professional-installer use, meaning it survives the back of a service van, repeated drops from waist height onto job-box floors, and operation in temperatures from winter equipment rooms to summer rooftops. The single-unit package includes a fitted storage case that isolates the tool from other hardware in transit—no metal-on-metal contact with wire cutters, no cable reels crushing the battery-pack housing. When you pull this crimper from the case at 7 a.m. for a full day terminating feeder lugs in a new electrical room, the expectation is zero failures, zero recalibrations, and zero trips back to the truck for a backup tool. That reliability justifies the investment for contractors whose schedule-critical-path activities include final power-up and AHJ rough-in inspections hinging on passing torque and pull tests on every visible termination.

Engineered and certified for Panduit compression connectors in mission-critical power and grounding applications—pair this hydraulic crimper with Panduit's two-hole copper lugs, aluminum C-taps, and grounding splice sleeves to build NEC-compliant bonding systems and UL-listed power-distribution assemblies that meet the service-life and fault-current demands of modern datacenters, healthcare facilities, and industrial control installations.
