Overview

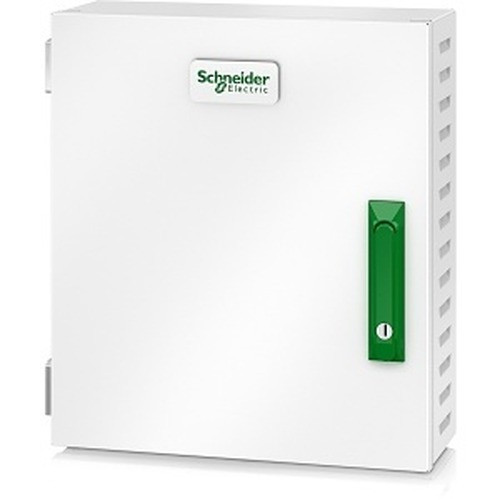

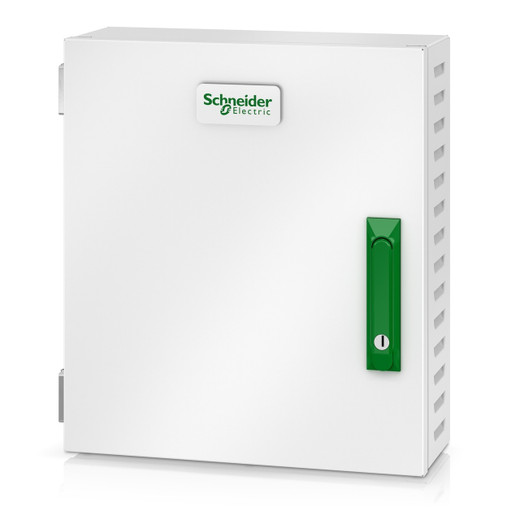

The GVSBPSU10K20H is a single-unit maintenance bypass panel designed for 10–20KW UPS systems operating at 400V. When scheduled maintenance or an unplanned UPS service event would otherwise mean downtime, a bypass panel lets you route load current around the UPS without interrupting the connected equipment — a non-negotiable capability in data centers, server rooms, and mission-critical security or surveillance infrastructure. The panel ships in white and arrives factory-new from APC by Schneider Electric's APC by Schneider Electric power products line.

At 26.5 lb (12 kg) and 17.72 in (45 cm) in its primary dimension, the GVSBPSU10K20H is sized to rack or wall-mount alongside the compatible UPS units it serves. Lead time is typically within two weeks, making it practical for planned infrastructure buildouts where delivery timing matters. For broader UPS accessories and power continuity components, this panel fits within a structured power protection strategy rather than as a standalone purchase.

Key Features

• Single-Unit Bypass Architecture: Consolidates bypass switching into one panel for a 10–20KW load range — avoids the complexity and cost of separate bypass enclosures per UPS unit in mid-range deployments.
• 400V System Rating: Matched to three-phase 400V UPS infrastructure common in European and international commercial installations, as well as higher-voltage domestic deployments — confirm your UPS input voltage before ordering.
• 26.5 lb Panel Weight: At 12 kg, the enclosure is manageable for a two-person rack or wall installation without lifting equipment, while still providing a substantial metal enclosure for the switching components inside.
• 17.72 in (45 cm) Form Factor: A defined primary dimension makes pre-planning cable routing and enclosure clearances straightforward — measure your available panel space before committing to the mounting location.
• White Finish: Suited to clean-room, data center, and facilities environments where equipment aesthetics and visibility of labels matter.

Integration & Compatibility

The GVSBPSU10K20H is engineered for use with APC Galaxy-series and compatible UPS platforms in the 10–20KW range at 400V. For deployments planning the full power distribution and UPS infrastructure, pair this bypass panel with the appropriate UPS chassis and distribution units to complete the power protection chain. Consult the APC compatibility matrix for your specific UPS model before purchase — bypass panels are model-range specific and substitutions outside the rated range can introduce safety or warranty issues. For guidance on selecting the right UPS system to pair with this bypass panel, pre-sales engineering support is available.

Frequently Asked Questions

Q: What UPS power range is the GVSBPSU10K20H designed for?

A: The GVSBPSU10K20H is rated for single-unit 10–20KW UPS systems operating at 400V. Verify your UPS model falls within this range before ordering.

Q: What are the physical dimensions and weight of the GVSBPSU10K20H?

A: The panel has a primary dimension of 17.72 in (45 cm) and weighs 26.5 lb (12 kg).

Q: What is the typical lead time for the GVSBPSU10K20H?

A: The GVSBPSU10K20H typically ships within two weeks of order.

Q: Can the GVSBPSU10K20H be used with any UPS brand?

A: This panel is an APC by Schneider Electric component engineered for the APC product ecosystem in the 10–20KW, 400V range. Cross-brand use is not supported — verify compatibility with your specific APC UPS model.

Q: Is the GVSBPSU10K20H suitable for three-phase installations?

A: The 400V rating is consistent with three-phase commercial power infrastructure. Confirm your site's wiring configuration matches the panel's electrical requirements prior to installation.

Jerry Tildsen

The GVSBPSU10K20H sits in a specific but important niche: it handles bypass switching for 10–20KW APC UPS systems at 400V, which is the range where mid-size data rooms and security operations centers typically land. At 26.5 lb, it's a real panel — not a lightweight module — and that weight reflects the switching capacity inside it.

Technical Highlights:

• 10–20KW Bypass Range: Covers the mid-range UPS tier where a single bypass panel handles the full load, avoiding the cost of scaling up to a larger bypass chassis.
• 400V Rating: Directly matched to three-phase commercial infrastructure — no step-down transformer or voltage adaptation required in properly wired 400V environments.
• 17.72 in (45 cm) Form Factor: The defined primary dimension gives installers a concrete measurement for planning enclosure placement and cable clearance before the unit arrives on site.

Deployment Considerations:

• Confirm your APC UPS model explicitly supports the GVSBPSU10K20H — bypass panels are range-specific; a 6KW or 30KW UPS won't pair correctly even if the voltage matches.
• With a two-week typical lead time, order this panel as part of the initial infrastructure BOM rather than as a reactive afterthought — bypass panels are the one component you don't want to be waiting on during a UPS service event.

The GVSBPSU10K20H is the right specification for a purpose-built APC 400V UPS room in a mid-size data center, a network operations center, or a centralized security monitoring facility where maintenance windows must not translate to load interruptions.
