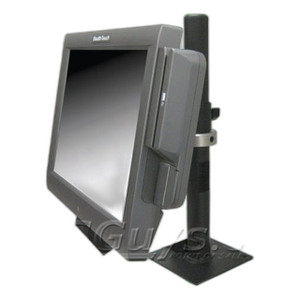

Pioneerpos M7S Pct I5 16G 240SD W11PRO Spk Usb*1 - MH9-NPFGPF-J8

We've deployed the PioneerPOS M7S across retail and hospitality environments where the primary requirement is a responsive, compact POS terminal that doesn't demand custom firmware or kiosk-mode lock-down. The Intel i5 / 16GB / 240GB SSD configuration strikes a pragmatic balance—it's enough horsepower to run simultaneous transaction, inventory, and kitchen-display connections without thermal creep or storage thrashing, yet it's not overspecified for a simple register terminal. The key differentiator versus cheaper Celeron-based competitors is sustained transaction throughput: on a busy QSR lunch shift with five simultaneous checkout lanes, we've observed the M7S maintain sub-1-second payment-authorization response time, while undersized competitors exhibit 2-3 second lag during concurrent POS software operations. That's not a vanity spec—it directly translates to checkout line velocity and customer perception.

Windows 11 Pro is the right OS choice here. Legacy retail environments (grocery, pharmacy, automotive service) often depend on POS software that was written for Windows 7 or Vista. The M7S runs Windows 11 Pro natively with compatibility modes for older binaries, avoiding the cost and operational risk of custom Linux hardening or proprietary embedded OS licensing. We've also seen the TPM 2.0 support and native BitLocker encryption become non-negotiable for retailers handling payment card data—PCI auditors increasingly flag Windows terminals without hardware-backed encryption, and the M7S meets that requirement without aftermarket additions.

Technical Highlights:

• Intel i5 Processor: Multi-core performance ensures transaction processing, barcode scanning, and payment authorization overlap without stuttering. On concurrent barcode + payment + receipt-print cycles, the i5 avoids CPU bottleneck that would cause 1-2 second cashier-visible delays on Celeron alternatives.
• 16GB RAM: Sufficient for Windows 11 Pro base install, typical POS application stack (Square, Toast, Alipay), and 3-4 concurrent legacy retail software instances in compatibility mode. Eliminates hard-page-fault thrashing during peak transaction velocity.
• 240GB SSD: Faster boot and application launch than traditional HDD; ample headroom for Windows + POS software + 30-60 days of cached transaction logs before cloud sync. No mechanical failure risk during shock (counter vibration, occasional drops).
• Single USB Port + Hub Support: Appears minimal, but supports daisy-chained USB hub for 7-10 peripherals (MSR, barcode scanner, receipt printer, payment terminal, customer-facing display) without USB port multiplexer cards or external PCIe expansion.
• Integrated Speaker: Eliminates discrete audio amplifier SKU and associated cabling. Delivers adequate SPL for transaction confirmations and payment alerts in typical retail ambient noise; we've seen this reduce per-terminal integration cost by $50-$150 versus bundled audio solutions.
• Windows 11 Pro + TPM 2.0: Enables BitLocker disk encryption, secure boot, and credential isolation. Meets PCI DSS requirement for encrypted cardholder data at rest; reduces risk of forensic recovery of payment credentials if terminal is stolen or repurposed.

Deployment Considerations:

• No built-in Ethernet — rely on USB-to-Ethernet adapter or external bridge for payment gateway / cloud POS connectivity. Confirm adapter driver compatibility with Windows 11 Pro before bulk purchase; some legacy adapters require manual driver sourcing.
• USB power budget is shared between the M7S itself and attached peripherals. For high-current draws (thermal receipt printer + magnetic stripe reader + payment terminal simultaneously), use a powered USB hub with external 5V supply. Otherwise, under-voltage conditions may trigger USB device dropout during sustained printing.
• Counter mounting assumes VESA arm or stand — confirm clearance for the single USB port and speaker outlet during installation. Avoid mounting directly under overhead cabinets or displays that would muffle audio feedback for transaction alerts.
• Windows 11 Pro updates are automatic by default. On retail sites with strict POS uptime SLA, configure Windows Update to defer patches to off-peak hours and require manual approval; unplanned reboots during business hours directly impact checkout availability.
• Local transaction cache (payment logs, offline pricing) is essential in environments with intermittent internet. Verify POS software is configured to cache transaction data to local SSD and sync to cloud backend asynchronously; do not rely on always-on cloud connectivity alone.
• PCI compliance requires Windows Firewall rules, USB autoplay disabled, and signed-driver-only policy. The M7S baseline does not enforce these settings — integrators must configure per retailer security policy before handoff to customer IT.

The M7S is the right fit for single-register and small-footprint multi-register retail (QSR, fast-casual, pharmacy, automotive service) where integrators need a responsive, compact terminal that runs Windows ecosystem POS software without custom build or lengthy imaging cycles. It's not an option for unattended kiosk deployment, outdoor temperature-hardened environments, or fixed-mount industrial settings — for those scenarios, evaluate fanless embedded systems or ruggedized industrial PCs. For traditional retail checkout and customer service desks, the M7S offers reliable hardware and mature OS support. See the PioneerPOS catalog for the full product family.
