Description

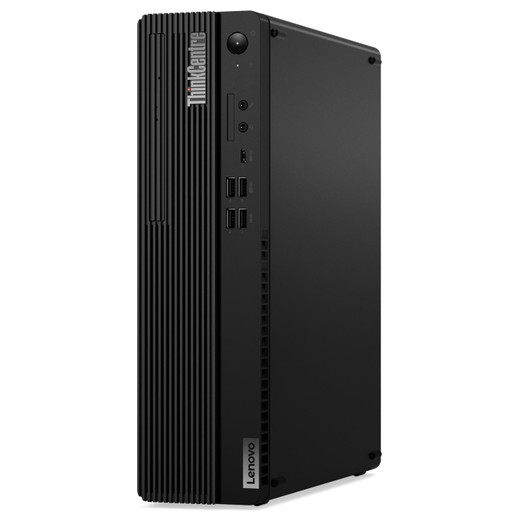

Lenovo 12U3001EUS ThinkCentre M70s Gen 5 SFF Workstation

Overview

The Lenovo ThinkCentre M70s Gen 5 SFF workstation, model 12U3001EUS, is engineered for demanding business environments requiring robust performance and reliability. This compact form factor houses a powerful Intel Core i7-14700 vPro processor and 32GB of RAM, delivering the computational power needed for complex tasks, data analysis, and multi-application workflows. Its 512GB NVMe SSD ensures rapid boot times and application loading, significantly reducing wait times in daily operations.

Compatibility

This workstation is designed for integration into standard business IT infrastructures. It is compatible with a wide range of peripherals and network devices through its comprehensive port selection, including USB 3.2 Gen 2 and USB-C. The inclusion of Intel AX211 Wi-Fi 6E and Bluetooth 5.3 ensures high-speed wireless connectivity. It runs Windows 11 Pro, providing a secure and feature-rich operating system for enterprise deployment.

Installation Notes

The Small Form Factor (SFF) chassis allows for flexible deployment in space-constrained environments, such as under-desk mounting or within rack-mount solutions using appropriate accessories. The system includes a Slim DVD-RW drive for optical media access. Power is supplied via an internal power supply unit, meeting standard AC power requirements.

What's in the Box

  • 1x Lenovo ThinkCentre M70s Gen 5 SFF Workstation (12U3001EUS)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro 64-bit Operating System
Specifications
Overview: ThinkCentre M70s Gen 5, Intel Core i714700 vPro Ecores up to 4.20GHz, 33MB, Windows 11 Pro 64, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 Performance TLC, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, T
Processor: Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-5600
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0
Max Storage: Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 260W 90%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
