Description

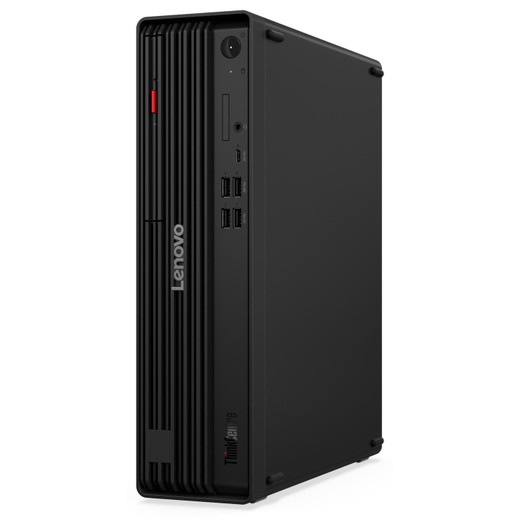

Lenovo 12YQ0022US M70S GEN 6 SFF Desktop

Overview

The Lenovo M70S GEN 6 SFF (Small Form Factor) desktop, model 12YQ0022US, is engineered for business environments demanding reliable performance and compact design. This system features a U7265 processor, 32GB of RAM, and a 512GB SSD, providing a solid foundation for demanding workstation tasks, data analysis, and general business applications. Its small footprint allows for flexible deployment in space-constrained offices or on crowded desks, ensuring productivity without sacrificing workspace.

Compatibility

This Lenovo M70S GEN 6 SFF desktop is designed for general business computing. It supports standard operating systems and a wide range of business software applications. For surveillance integration, it can serve as a client workstation for VMS (Video Management Software) viewing, configuration, and playback, provided the VMS software is compatible with its hardware specifications and operating system. It is not a dedicated surveillance appliance but can be provisioned as part of a larger IT infrastructure supporting security operations.

Installation Notes

The M70S SFF chassis is designed for easy access to internal components for upgrades or maintenance. Standard power connections are required. Ensure adequate ventilation around the unit to maintain optimal operating temperatures, especially when running sustained workloads. For network connectivity, it includes standard Ethernet ports for integration into your existing network infrastructure.

What's in the Box

  • 1x Lenovo M70S GEN 6 SFF Desktop (12YQ0022US)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
Specifications
Overview: M70S GEN 6 SFF,U7265,32GB,512GB SSD
Processor: Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: Integrated Intel Graphics
Chipset: Intel Q870 Chipset
Memory: 1x 32GB UDIMM DDR5-5600
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 260W 90%
Stand: Vertical Stand
Dimensions (WxDxH: 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight: 5.1 kg (11.2 lbs, maximum configuration)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On and USB Always On; 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR3, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Q&A
Reviews

Lenovo M70S GEN 6 SFF U7265 32GB 512GB SSD - 12YQ0022US

$2,429.00
$2,428.99
