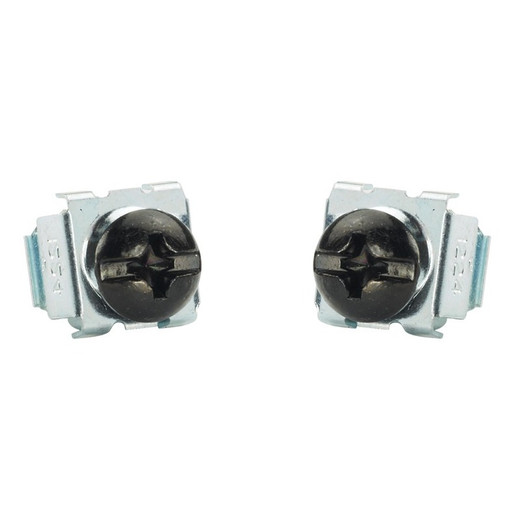

Panduit CNWSM5-C M5 Screw with Cage Nut
Overview
The Panduit CNWSM5-C provides a secure M5 screw and cage nut assembly, essential for reliably mounting network equipment, particularly in server racks and enclosures. This component ensures that devices remain firmly in place, preventing vibration-induced dislodging and maintaining the integrity of your network infrastructure. It's designed for applications where a threaded insert is required in thin sheet metal, such as rack panels or equipment chassis.
Compatibility
This M5 screw and cage nut kit is designed for use with standard M5 threaded equipment and rack-mount accessories. It is compatible with most 19-inch server racks, network cabinets, and equipment enclosures that utilize M5 mounting hardware. The cage nut provides a captive thread in panels up to 1.5mm thick, making it suitable for a wide range of chassis and panel types.
Installation Notes
Installation requires a standard M5 screw and a cage nut. The cage nut is pressed into a pre-punched hole in the panel, where its wings spring into place to secure it. The M5 screw then threads into the cage nut. Ensure the cage nut is fully seated before tightening the screw to the recommended torque for the specific equipment being mounted, typically around 2-3 Nm for M5 screws in this type of application, to avoid stripping the threads.
What's in the Box
- 1x M5 Screw
- 1x M5 Cage Nut
