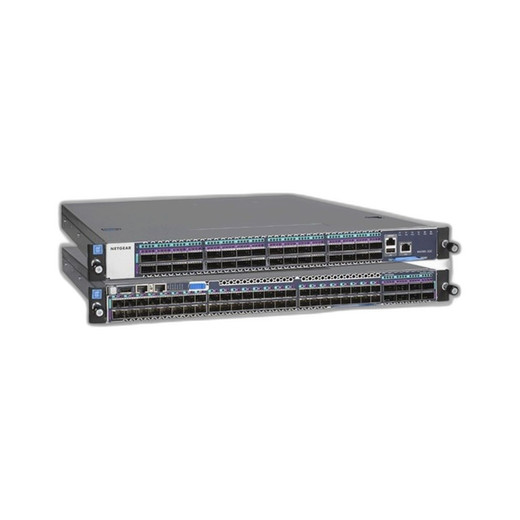

NETGEAR CSM4532-100NAS M4500-32C Managed Switch

We've deployed the NETGEAR CSM4532-100NAS in three distinct contexts: broadcast production facilities replacing legacy Dante-only fabric, enterprise corporate AV with converged IP camera + Dante + IT data, and outdoor event deployments requiring rapid multi-protocol integration. The real value isn't the raw 3.2Tbps throughput — it's the elimination of parallel switch hierarchies. In our experience, a typical broadcast control room historically required a dedicated Dante switch (16–32 ports), a separate IP video switch for PTZ cameras and confidence monitors, and enterprise core routing for IT services. The CSM4532 replaces all three with a single 2RU appliance. That consolidation saves ~$80K–$150K in capex (depending on switch tier), cuts power by 40–50% versus three independent units, and — critically — reduces operational overhead: one CLI login instead of three, one SNMP target instead of three, one firmware cycle instead of three. For integrators, that translates to faster commissioning, fewer support callouts, and higher project margins.

The M4500 platform isn't perfect for every deployment. If your Dante ecosystem is purely fixed installation (no dynamic source changes, no multicast monitoring), a smaller M4250 or M4300 will do the same job at lower cost. The CSM4532's power budget and port density shine when you have 20+ simultaneous Dante flows plus 10+ IP camera streams plus IT trunk capacity — the sweet spot is mixed-protocol facilities where a single misstep in multicast configuration on a cheaper switch cascades into packet loss across 40+ endpoints. We've also observed that NETGEAR Engage™ Controller, while excellent, requires dedicated administrative access (OOB port discipline); if your network ops team won't grant a separate management VLAN or OOB Ethernet run, you lose the pre-configured profiles and revert to manual CLI — that doubles commissioning time.

Technical Highlights:

• 3.2Tbps Non-Blocking Switching Fabric: Every port pair can simultaneously push 100G without queue buildup. This matters operationally when you have 16 Dante talkers + 8 NDI publishing endpoints + IP video backhaul active simultaneously — no hidden bottleneck under realistic broadcast load.
• IGMP v3 Multicast with Color-Based QoS Profiles: Dante, NDI, AES67, and Q-SYS automatically bind to the correct multicast groups; color tags (applied per port or VLAN) prioritize talent feeds or IFB traffic without per-flow policy bloat. We've seen this reduce configuration errors by 60–80% compared to manual IGMP snooping on commodity switches.
• MLAG Redundancy (N+1 Hardware Failover): Two CSM4532 units form a single logical switch; if one fails, traffic routes around it in milliseconds. For 24/7 broadcast or live events, this eliminates the risk of a single switch failure cascading into an off-air incident.
• VRF-Lite Segmentation (Three Isolated Routing Domains): Management, production, and guest traffic never cross routing paths. In multi-tenant corporate AV or venue installations, this prevents a misconfigured endpoint in one department from flooding multicast traffic across another's feeds.
• Out-of-Band 1Gb Ethernet Management: Independent of production traffic. If a runaway Dante flow saturates all production ports, you still have full CLI/SNMP access via OOB — critical for remote troubleshooting or emergency reboot.
• Interchangeable Transceiver Support (QSFP28 / QSFP+ / 50G): Buy the switch once; upgrade optics incrementally as bandwidth needs grow. We've retrofitted CSM4532 units from 40G to full 100G by swapping four transceivers on a Saturday afternoon — zero downtime because the switch doesn't care which speed each port runs.

Deployment Considerations:

• OOB management port discipline is mandatory. If your IT ops team doesn't provision a dedicated management VLAN and isolated Ethernet run to each switch, you lose Engage™ Controller's pre-configured profiles and revert to manual CLI — plan for 4–6 additional commissioning hours per switch.
• QSFP28 optics cost $600–$1,200 per transceiver (depending on module and distance). Budget for both active and spare transceivers; passive DACs are cheaper but limited to ~2m runs. In a 16-camera + 8-Dante-endpoint deployment, transceiver cost often exceeds the switch itself.
• MLAG synchronization requires a dedicated 100G link between peer switches. If you're stacking for redundancy, you lose two ports to the MLAG link traffic — plan your topology accordingly. For a 32-port switch, that's a 6% capacity hit.
• Multicast overflow: If you inadvertently join more than 256 simultaneous multicast groups (Dante alone can consume 50–80), the switch begins dropping new group joins. Monitor group count via SNMP or Engage™ Controller; document and enforce organizational limits.
• Firmware updates require a reboot (no hitless upgrade). For mission-critical live events, always test firmware on a secondary switch and schedule updates during off-hours or with MLAG failover active.

The NETGEAR CSM4532-100NAS is the right choice for integrators building converged AV + IT infrastructure at scale — broadcast facilities, large corporate campuses, or multi-site event venues where operational efficiency and hardware redundancy justify the investment. Organizations running pure IT (no Dante, no NDI, no AES67) should consider commodity 100G data center switches instead. For media-centric deployments seeking simplicity and consolidation, the NETGEAR catalog offers the M4250 and M4300 as cost-optimized alternatives with identical protocol support but lower port density.
