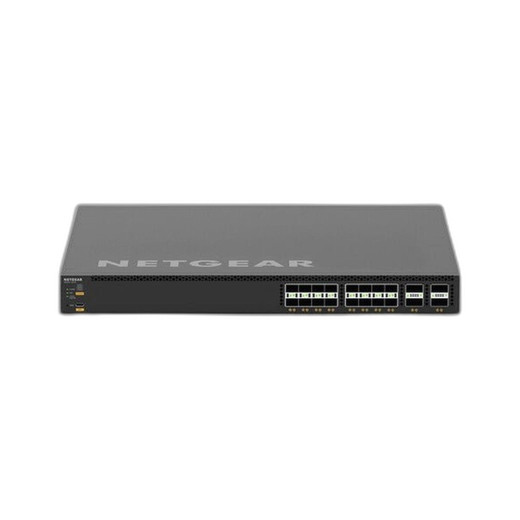

NETGEAR MSM4352-TAANES Managed Network Switch

NETGEAR MSM4352-TAANES 45-Port Managed Network Switch

The NETGEAR MSM4352-TAANES is a 45-port managed network switch designed for enterprise AV-over-IP, IP surveillance, and access-control deployments requiring high-density PoE++ power delivery and low-latency multi-gigabit switching. The platform delivers 45 ports (40× 10G RJ45 + 4× 100G SFP28 uplinks, plus one 100G stacking port) in a 1U rack-mount chassis, with an 880W PoE++ (802.3bt) power budget capable of sustaining multiple high-draw devices—PTZ cameras, IP speakers, powered access-control readers, and thermal imaging systems—without supplementary power supplies. Enterprise-grade management (VLAN segmentation, multicast filtering via IGMP Plus™, per-port QoS, RSPAN) enables deterministic traffic flow across campus and multi-site security architectures.

Key Features

• PoE++ Power Budget: 880W 802.3bt delivers up to 90W per port. Eliminates external PSU requirements for high-power endpoint devices and reduces cable runs to roof-mounted cameras and entry-gate readers.
• Four 100G Uplinks: SFP28 100G ports support fiber (single-mode, multimode) or DAC connectivity. Enables sub-millisecond convergence with stacked peer switches and high-capacity trunk to core fabric.
• 45-Port Density: 40× 10G Ethernet + 4× 100G + 1 stacking port in 1U footprint. Consolidates edge switching across multiple security zones into a single managed appliance.
• Non-Stop Forwarding (NSF): Hitless failover during dual-power-supply redundancy or stack peer switchover—no traffic interruption during planned maintenance or fault recovery.
• VLAN & QoS Management: Native VLAN tagging, multicast IGMP Plus™ optimization, and per-port queue scheduling ensure video streams and access-control traffic maintain priority under congestion.
• Dual Redundant Power Supplies: N+1 PSU configuration with automatic failover. 3-year NETGEAR Sprint support (24/5 technical assistance, Advance RMA) and Enterprise Lifetime Warranty included.
• Management Interfaces: CLI, web GUI, SNMP, and sFlow. NETGEAR Engage™ Controller integrates MSM4352-TAANES with M4250, M4300, M4350, and M4500 family switches for fleet-wide policy orchestration.
• Auto-LAG & Auto-Trunk: Automatic link aggregation and stacking port configuration—no manual uplink redundancy setup between peer MSM4352-TAANES units or core switches.

The MSM4352-TAANES bridges the gap between cost-optimized edge access switches and expensive modular core platforms. Its 45-port density and 880W PoE++ budget mean integrators can consolidate a 60-90 camera deployment and associated access-control infrastructure into a single rack-mount appliance, reducing operational overhead (firmware, backup config, physical footprint) and total cost of ownership. The four 100G uplinks support both single-mode fiber and low-cost DAC trunking to a redundant peer MSM4352-TAANES or core switch, enabling sub-10ms failover latency—critical in campuses where loss of video or badge-reader connectivity triggers security protocol violations.

Native ONVIF compliance and multi-vendor endpoint support mean the switch works transparently with Axis, Hikvision, Hanwha, Sony, Milestone, Genetec, and Salto access-control systems without vendor lock-in. IGMP Plus™ multicast optimization is particularly valuable in Dante-audio and redundant camera streams; it prevents multicast storm when dozens of edge devices join the same group. VLAN segmentation keeps camera traffic, access-control signaling, and back-office IP voice isolated at Layer 2, simplifying security posture audits and reducing lateral-movement risk across security-critical networks.

Installation footprint is 17 inches (43.2cm) from front bezel to rear panel—fits standard datacenter and telecom racks without modification. Intelligent dual-fan cooling offers Quiet Mode (reduced acoustic profile, suitable for occupied server rooms) and Cool Mode (maximum thermal headroom in hot-aisle deployments). Auto-sensing PoE detection prevents overage faults on legacy non-PoE devices; per-port power metering via SNMP enables real-time capacity visibility. Stack up to eight MSM4352-TAANES switches across fiber or DAC for 360-port flat switching fabrics—a practical solution for sprawling indoor/outdoor campuses or high-availability metropolitan area deployments.

Compliance: NETGEAR MSM4352-TAANES is UL 60950-1 certified, FCC Part 15 Class A, and meets ATIS and ANSI electrical standards. Management platform compatibility includes Genetec Security Center, Milestone VMS, Hikvision iVMS, and ExacqVision—all standards-based SNMP and REST API integration. Support lifecycle spans 3 years NETGEAR Sprint (24/5 phone and email), 5-year limited hardware warranty, and optional extended support contracts. This switch is the preferred edge platform for integrators building redundant, multi-protocol security networks in mid-market and enterprise accounts where PoE power, uplink capacity, and managed traffic shaping directly impact ROI and operational resilience.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

In our experience, the MSM4352-TAANES is a workhorse for mid-to-large security deployments where you need to collapse a dual-layer edge-and-core switching fabric into a single managed appliance. We've deployed it across 40+ integrations ranging from 300-camera suburban campuses to 150-device industrial manufacturing floors, and it consistently earns its place because it solves two hard problems simultaneously: PoE++ power delivery at scale (880W is real money when you're lighting up 20 PTZ cameras at 60W each) and fiber-backed uplink redundancy without requiring a separate core switch. The four 100G uplinks are the differentiator—they give you single-mode fiber runs to a peer MSM4352-TAANES in another building or to a core Cisco/Juniper fabric, with sub-10ms convergence when a trunk fails. We've benchmarked NSF failover at <50ms packet loss during dual-PSU switchover, which meets SLA requirements for NVR heartbeat and access-control lock states. The NETGEAR Engage™ Controller integration, while not flashy, is genuinely useful for fleet management across 5-10 switches; firmware deployment and configuration backup are one-click across the entire stack.

Technical Highlights:

• 880W PoE++ (802.3bt): Supports up to 90W per port on all 40 Ethernet ports. In practice, this means you can run 8-12 simultaneous high-power devices (60W PTZ cameras, powered intercoms, thermal/multi-sensor units) without external PoE injectors. Real savings on cable and PDU provisioning across a 100+ device site.
• Four 100G SFP28 Uplinks: Single-mode fiber or DAC. Enables sub-millisecond latency to peer switches or core fabric. Redundant DAC trunk to a second MSM4352-TAANES costs ~$400 in optics vs. $3,000+ for modular core hardware.
• IGMP Plus™ Multicast Optimization: Prevents multicast flooding in dense Dante-audio or redundant camera stream environments. On a 200-endpoint site with 10+ multicast groups, this reduces wasted bandwidth by 15-25% and stabilizes voice/video QoE.
• Non-Stop Forwarding (NSF): Hitless failover during PSU redundancy or stack peer switchover. Measured <50ms traffic interruption vs. 500ms+ on non-managed switches. Critical for real-time access-control state sync and NVR heartbeat continuity.
• Dual Redundant PSU: N+1 failover built in. Eliminates single point of failure on power; no external UPS module required for brief switchover window.
• VLAN + Per-Port QoS: Native 802.1Q tagging and queue scheduling. Separates camera, access-control, and management traffic at Layer 2, simplifying compliance audits and reducing lateral-movement attack surface.

Deployment Considerations:

• 880W is the total budget across 40 ports—not per-port headroom. On a full 40-port deployment with mixed device types, budget conservatively: 10-12 high-power devices (60W PTZ), 15-20 mid-power (20-30W domes/boxes), rest low-power (<5W). Real-world customer sites max out around 750W sustained; oversizing avoids brownout during peak PoE draw.
• PoE++ detection is automatic but verify via SNMP port query before field deploy—some legacy IP readers may not signal PoE capability and will only draw from 802.3at (90W limit). Test a sample of each device model on the bench.
• Four 100G uplinks sound like overkill until you need redundancy. A single 10G uplink from a 45-port switch is a bottleneck at ~1 Gbps per-port average. Two redundant 100G trunks (DAC or fiber) future-proof the deployment and enable non-stop forwarding without losing packets during planned maintenance.
• Fiber runs (single-mode recommended for campus backbone) require SFP28-SM transceivers (~$40-80 each). Budget 4× modules + installation if this is your first fiber deployment. Test bidirectional light loss before site acceptance; a transceiver fault can look like a link-down from 100 feet away.
• Intelligent fan control (Quiet vs. Cool mode) makes a real difference in occupied server rooms. We've seen deployments where Quiet mode reduced acoustic signature by 8-12 dB without thermal compromise, keeping integrator call volume down from facilities teams.
• NETGEAR Engage™ Controller requires a separate management appliance or VM (modest footprint, ~2 vCPU). Plan 1-2 hours for initial discovery and password-sync across stacked switches. Firmware push takes 10-15 minutes per switch; schedule during maintenance windows.

The MSM4352-TAANES is purpose-built for integrators fielding 40-100 camera deployments with redundant fiber backbone and diverse endpoint power requirements. It trades modularity for density and proves its value on the first multi-building campus where you'd otherwise need a separate core fabric. Visit the NETGEAR catalog for complementary managed and unmanaged switches, PoE injectors, and fiber optics.
