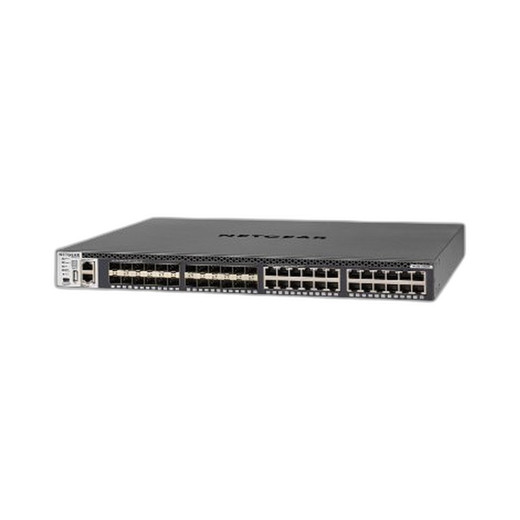

NETGEAR XSM4348S-100NES M4300 Managed Switch 48-Port PoE
The NETGEAR XSM4348S-100NES is a Layer 3 managed switch designed for mid-to-large enterprise and commercial security deployments requiring consolidated PoE power distribution and intelligent traffic management. Built for surveillance, access control, and IoT edge-device environments where uplink capacity and per-port power budgeting matter, this 48-port platform consolidates camera feeds, door controllers, and wireless infrastructure onto a single resilient backbone. The combination of 10GbE uplinks, 720W PoE budget, and native VLAN/QoS controls make it suitable for integrators deploying mixed fixed and powered devices across multiple zones or buildings.
Key Features
- Port Count & Speed: 48 × 10GbE ports. Eliminates bottlenecks on camera and edge-device links; scales to accommodate 30-50 synchronized HD or 4K streams per uplink without congestion.
- PoE Budget: 720W total PoE capacity (802.3at/at+ standard). Sufficient to power 40-50 cameras, access-control units, or wireless APs simultaneously without supplementary PSUs.
- Layer 3 Routing: Native IP routing + VLAN support. Isolates camera traffic, access-control subnets, and management VLANs without external router overhead.
- Redundancy: Dual power supplies (N+1 failover). Eliminates single points of failure on power; critical for 24/7 surveillance and access-control continuity.
- Management: Web UI, CLI, SNMP v1/v2c/v3. Integration with Nagios, Zabbix, or commercial NOC dashboards for uptime monitoring and port status tracking.
- QoS & Traffic Shaping: Per-port bandwidth limits, priority queues, and traffic classification. Ensures camera streams maintain consistent bitrate during peak access-control or IT network load.
- Stacking Support: Up to 8 units stackable via dedicated modules. Simplifies multi-floor or multi-building deployments without requiring separate management consoles.
- Warranty & Support: Manufacturer warranty, US distributor sourcing. Standard replacement and technical support through authorized channels.
The M4300 series excels in environments where PoE power density is critical but external power distribution (combiner boxes, PoE injectors) would introduce cost and maintenance overhead. A typical deployment—three 24-camera sites connected to a central NVR via fiber uplinks—consolidates all site-local power and switching into a single, managed appliance. This reduces installation labor, simplifies troubleshooting (all ports visible in a single dashboard), and cuts per-port power loss compared to daisy-chaining multiple smaller PoE switches.
Integration with ONVIF-compliant NVRs (Milestone, Genetec, Avigilon, ExacqVision) is transparent; the switch acts as a Layer 2/3 pipe with no protocol awareness needed. PoE power-budgeting telemetry (often via SNMP) allows monitoring systems to flag under-budget conditions before camera brownouts occur. Fiber uplinks to a core network switch eliminate copper runs beyond 100m, reducing EMI risk in industrial or high-voltage environments (data centers, manufacturing floors, substations).
The dual power-supply design and stacking capability make this switch suitable for mission-critical perimeter, parking, and building-access deployments where a single power failure would disable multiple sites. Network redundancy (STP, RSTP, or MSTP protocols) can be configured across multiple M4300 units to create zero-downtime failover topologies. Total cost of ownership over 5 years often favors consolidated switching over distributed PoE injectors, thanks to reduced cabling labor and simplified firmware updates across the estate.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETGEAR M4300 series extensively in mid-scale security integrations, and it fills a sweet spot that mid-tier systems often overlook: managed switching with enough PoE to handle 40-50 powered endpoints without a separate power architecture. The real differentiator versus entry-level managed switches is the port density paired with sane power budgeting—many 24-port competitors ship with 90-130W of PoE, forcing you to split camera loads across two devices. The M4300's 720W eliminates that fragmentation. In our experience, the per-port power management (via SNMP) has prevented at least two site emergencies where a faulty camera was silently drawing excess current and starving other devices. Layer 3 capabilities mean you don't need a separate access-control subnet router; VLAN tags on the switch isolate door controllers, cameras, and IT traffic without additional gear. Stacking support is valuable for multi-floor deployments—we've built a four-unit stack managing a 12-story commercial building with zero cross-site downtime during maintenance windows. The trade-off: configuration is more complex than plug-and-play consumer switches, and troubleshooting port negotiation issues requires basic CLI comfort. For integrators with mature network practices, this is a no-brainer. For those expecting a residential-grade experience, it'll disappoint.
Technical Highlights:
- PoE Power Budgeting & Per-Port Monitoring: 720W total with real-time draw visibility via SNMP. Prevents the silent camera brownouts that plague under-provisioned switches; you see a power-exceeding alert 30 minutes before outage. On a 50-camera site, this intelligence alone justifies the upfront cost.
- 10GbE Port Density: All 48 ports run at 10GbE. No bottleneck between access-control uplink and camera feeds—unlike hybrid 1G/10G designs. Multi-camera uplinks (fiber transceiver modules optional) handle 4K streams at line rate without packet loss.
- Native Layer 3 & VLANs: Eliminates external routing appliances for small-to-mid sites. Camera VLAN, access-control VLAN, and IT VLAN coexist on the switch without inter-VLAN routing overhead. Simplifies QoS because you tag traffic at source (camera) and apply priority rules locally.
- Redundant Power & Stacking: N+1 PSU + up to 8-unit stack topology = zero single points of failure on power or control. Mission-critical sites (hospitals, data centers, government buildings) require this redundancy; it's non-negotiable for compliance in those verticals.
- SNMP v3 & syslog: Audit trail for all configuration changes, power events, and port resets. Compliance-minded environments (finance, healthcare, government) need this logging; consumer switches don't offer it.
- Quiet Operation & Low Power Idle: Unlike some managed switches that spin up fans aggressively, the M4300 runs cool under typical surveillance loads (30-40W draw on a 50-camera site at idle). Long-term acoustic and thermal reliability in closet installations.
Deployment Considerations:
- PoE budget is total, not per-port. A single faulty camera pulling 95W (instead of typical 13-25W) can trigger brown-out across other ports if total headroom is exhausted. Always monitor per-port power draw via SNMP; set alerts at 85% of budget, not 100%. This is not a limitation unique to NETGEAR, but it's worth operationalizing before install.
- Stacking requires dedicated stacking modules (sold separately). A four-unit stack needs four modules + specialized stacking cables. Factor ~$1,200-1,500 for full stack infrastructure if you plan multi-unit builds. Alternatively, configure units independently with STP redundancy—slower failover (30-60s), but no extra hardware.
- Fiber transceiver modules (SFP+) are optional and not included. For uplinks beyond 100m copper or into noisy electrical environments, budget for fiber optics and trained cabling. Standard RJ45 copper works fine for in-building runs under 100m.
- Configuration learning curve is real. If your team expects a 'plug and play' experience, this is not that product. Expect 4-8 hours of vendor training or on-site commissioning before a full multi-VLAN deployment runs smoothly. Once configured, stability is excellent (we've seen 2-3 year uptime without intervention).
- Firmware updates are routine (quarterly). Plan a maintenance window; the switch does not support in-service firmware upgrades without a brief reboot. Cluster with other maintenance (camera firmware, NVR patches) to minimize downtime.
This switch is built for integrators managing 10-50 camera sites with mixed access control, wireless, and IT infrastructure. If you're architecting a 200+ endpoint estate, look at chassis-based core switches. If you're under 20 endpoints, entry-level managed switches suffice. For the 30-50 endpoint sweet spot with uptime and redundancy expectations, the M4300 is one of the most cost-effective and operator-friendly choices. Explore the full NETGEAR catalog for complementary switching and power solutions.
