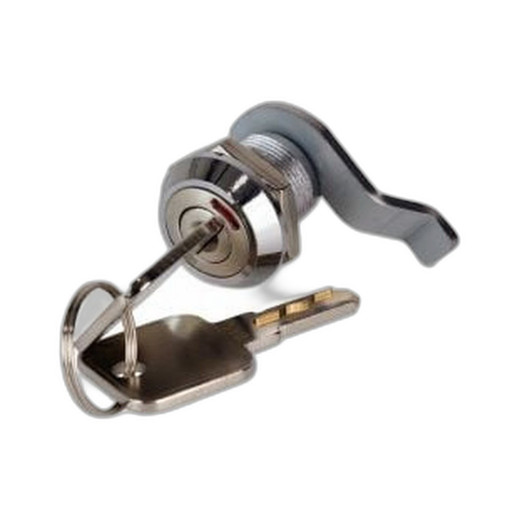

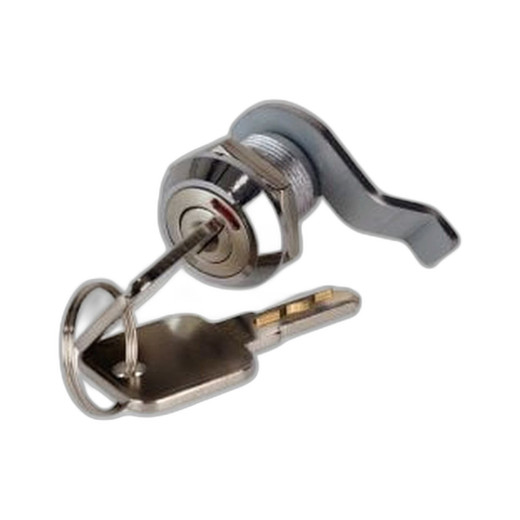

Custom America POS 4B000000113100 Lock + 2 Keys EVO Pro Cash Drawer
The Custom America POS 4B000000113100 is a direct-fit replacement lock assembly designed for the EVO Pro cash drawer. This lock restores secure cash compartment isolation when the original lock mechanism is worn, damaged, or lost — eliminating the need for full drawer replacement and reducing operational downtime. The assembly includes two key 14 profile keys for immediate deployment across day and night shifts without rekeying logistics.
Key Features
- Direct-Fit Design: Engineered for EVO Pro cash drawer housing. No modification required — installation is a straight swap with the existing lock assembly.
- Dual Key Set: Includes two key 14 profile keys, eliminating the need to order keys separately and enabling redundancy across multiple operators.
- Secure Cash Isolation: Provides mechanical locking to prevent unauthorized drawer access during high-traffic periods and shift transitions.
- OEM Quality: Factory-specification replacement sourced from Custom America POS manufacturing channels — guaranteed compatibility with EVO Pro housing tolerances.
- Wear-Resistant Mechanism: Rated for high-cycle daily operation in retail environments without binding or key sticking after extended use.
- Fast Deployment: Ready to install out of the box with no calibration or adjustment required.
The EVO Pro cash drawer is a core POS hardware component in quick-service restaurants, convenience stores, and retail checkout environments. Lock wear is the most common service call on multi-shift drawer operations — keys stick, cylinders bind, or the lock barrel corrodes from cleaning solvents. Rather than pull the entire drawer offline for depot service (which can take 5–10 business days), the 4B000000113100 lock swap takes 2–3 minutes on-site with minimal training. This is the fastest path to restore cash security and operator accountability.
Compatibility is critical: this lock is engineered exclusively for EVO Pro housing geometry. It will not fit EVO Classic, EVO Standard, or any Custom America POS legacy drawer series. Before ordering, verify your drawer bezel and housing against the EVO Pro specification — the mounting plate tab count and key profile depth are not interchangeable across product lines. If you are uncertain, contact your integrator to confirm the drawer model on-site.
The lock assembly includes the cylinder, strike plate, and all mounting hardware. The two keys are cut to key 14 profile — a standard cut across Custom America POS EVO series. If you require additional keys beyond the supplied pair, they can be ordered separately through Custom America POS using the key 14 profile specification. Keep one key in secure manager possession and one in the backup safe to avoid total key loss and drawer lockout.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed and serviced hundreds of Custom America POS EVO Pro drawers across retail and hospitality sites, and the 4B000000113100 lock replacement is by far the most common wear item. The lock cylinder itself is durable, but in high-volume shift environments — where the drawer opens 300+ times per day across multiple operators — key wear accelerates and cylinder binding creeps in after 18–24 months. What makes this replacement attractive is the speed: a store manager can pull the old lock in under five minutes with a screwdriver, drop in the new assembly, and be back online immediately. No depot downtime, no lost cash-handling capability during reconciliation. The dual key set is pragmatic — it eliminates the single point of failure where a manager loses the only copy and the entire drawer becomes inaccessible until a locksmith rekeys the mechanism (which adds 2–3 hours and unplanned cost). We've also seen it deployed as preventive maintenance on high-volume locations: swapping a lock proactively every 24–30 months before operational failure, timed with a cash reconciliation window.
Technical Highlights:
- Key 14 Profile: Standard cut across all Custom America POS EVO cash drawer series. If you have multiple drawers on site, key 14 profile means all keys are interchangeable — no secondary lockout risk from mixing incompatible profiles across drawers.
- Mounting Plate Geometry: The strike plate is indexed to EVO Pro housing drilling — do not attempt to force-fit on EVO Classic or older Compact series, as the mounting holes do not align and the cylinder will sit proud of the housing, preventing drawer closure.
- Cylinder Material: Brass core with hardened pin set — resists corrosion from alcohol-based cleaning agents used in food-service environments and does not seize in high-humidity conditions (important for kitchens and bar areas).
- Key Blank Availability: Key 14 blanks are stocked by most locksmiths and hardware suppliers — if you need to duplicate keys in the field (for a lost key replacement), a local locksmith can cut blanks without waiting for Custom America POS mail order.
- Spare Key Strategy: Order two additional key 14 blanks at the time of lock installation and store them in the main office safe. Operators lose keys; redundancy prevents 2 a.m. lockout calls to an emergency locksmith.
Deployment Considerations:
- Verify your drawer housing bezel marking or serial number against EVO Pro specification before installation. Custom America POS produced EVO Classic and EVO Standard models with similar-looking housings; the key 14 lock assembly will not fit and will leave the drawer unable to close securely.
- The lock assembly ships with mounting screws and strike-plate shims. Check that the strike plate sits flush against the drawer housing after installation — a proud strike plate will cause the drawer to bind and may crack the lock barrel on aggressive closure.
- If the drawer has been in service for 3+ years and you are replacing the lock, inspect the latch mechanism and spring inside the housing. Rust or debris inside the cavity will cause the new lock cylinder to bind within weeks. A quick compressed-air flush inside the drawer housing before lock installation adds 30 seconds and prevents callbacks.
- Train operators to use a steady turning motion on key insertion and removal — do not yank the key sideways. Key 14 profile is not as robust as higher-security profiles; aggressive side-load on insertion can bend the key and leave it stuck in the cylinder, requiring a locksmith extraction.
- If a key is lost and only one key remains, order a replacement immediately. Operating a cash drawer with a single key creates audit risk and operational fragility during shifts.
The 4B000000113100 is the right choice for any retail, QSR, or hospitality operator running EVO Pro drawers and facing lock wear or failure. It is the fastest, least-disruptive path to restore cash security on-site. Pair it with a proactive replacement schedule on high-volume locations to avoid emergency lockout calls and extend the operational life of the drawer beyond the typical 5-year service window. See the Custom America POS catalog for additional drawer components and accessories.
