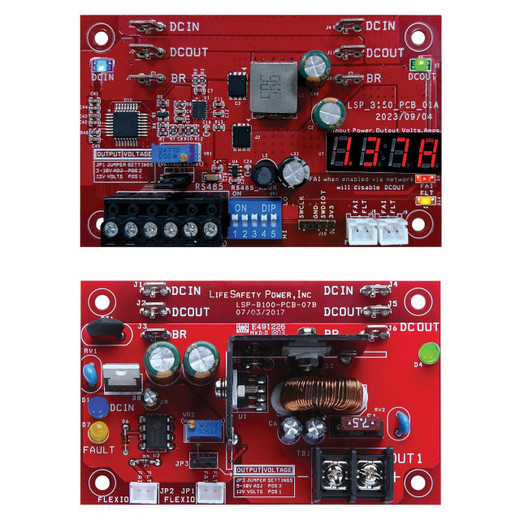

Lifesafety Power FPV6-B100E1 Compact Dual-Voltage Power Supply

Overview

The FPV6-B100E1 is a compact power distribution module designed for modest-scale IP security deployments where you need simultaneous 12VDC and 24VDC rails—common in hybrid camera, access control, and auxiliary equipment installations. Dual 4-ampere outputs eliminate the need for separate power supplies, reducing enclosure clutter and wiring complexity on smaller jobs.

Output Ratings

Provides 4A capacity on both 12VDC and 24VDC rails. This amperage is sufficient for daytime PTZ camera movement, LED illuminators, door strikes, or low-power auxiliary circuits—but not for high-draw constant-duty loads. On a typical power supply calculation: a 12V rail with 4A yields 48W, and a 24V rail with 4A yields 96W total available. Plan your load distribution carefully; simultaneous high-draw on both outputs will trigger current limiting. Useful for small to mid-size integrations rather than large multi-camera installs.

Compatibility

The FPV6-B100E1 integrates with standard 12/24VDC camera systems, card readers, gate openers, and monitoring panels from vendors across the security industry. Verify your specific camera power draw against the 4A rating before committing—many low-light or outdoor PTZ units exceed this budget under continuous operation.

Installation Notes

Install in an enclosure rated for the ambient temperature and humidity of your site. Ensure input AC power is stable and adequately fused or breaker-protected at the panel entry point. Use appropriately sized conductors for your run distance to minimize voltage drop—particularly critical on 12V circuits where drop accumulates faster than on 24V runs.
