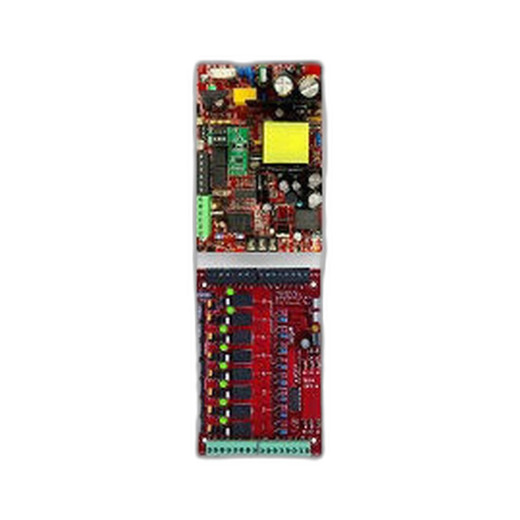

Lifesafety Power FPO75-C8E2M 75W Power Supply Board
Overview
The FPO75-C8E2M is a 75W power distribution module designed to supply regulated 12V and 24V outputs to networked security and life-safety equipment. This board-level supply is intended for integrators building custom power solutions or retrofit systems where rack space or compact form factors are critical—typical deployments include smaller access control panels, surveillance switch stacks, or backup power buffering in distributed cabinet installations.
Output Specifications
The board delivers either 6 amps at 12VDC or 3 amps at 24VDC, allowing you to configure output voltage to match downstream load requirements. The dual-output design means you can partition loads by voltage or dedicate the entire supply to a single rail. This flexibility reduces the need for multiple separate supplies in mixed-voltage environments common in network camera and access control deployments where some devices run 12V and others 24V.
Integration Context
As a modular board supply, the FPO75-C8E2M is suited for OEMs, systems integrators, and advanced installers who are designing enclosures or consolidating power for multi-device systems. Unlike standalone desktop supplies, this board format requires integration into a compatible cabinet, bracket, or custom enclosure. Confirm mounting and wiring compatibility with your specific Lifesafety Power system or consult your integrator if deploying this as a replacement or backup module.
Installation Considerations
Verify input voltage availability and current capacity at the installation site before commissioning. Ensure adequate thermal clearance around the board during operation, as 75W continuous draw generates measurable heat. Use appropriately rated cabling for 6A (12V) or 3A (24V) distribution to prevent voltage drop across long runs.
