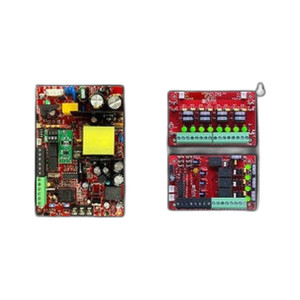

Lifesafety Power FPO75/150-C4D8E1 75W Four-Door Access Control Power Supply
The Lifesafety Power FPO75/150-C4D8E1 is a 75W industrial power supply engineered for multi-door access control deployments requiring simultaneous 12V and 24V outputs. This consolidated platform eliminates the operational complexity and cabinet clutter of stacking multiple wall-mounted adapters — a single DIN-rail or wall-mountable chassis supplies power to four or more electronically controlled door strikes, mag locks, readers, and request-to-exit sensors from one source. Integrators use this supply to simplify wiring, reduce single-point-of-failure risk, and standardize power distribution across small-to-medium access control installations.
Key Features
- Dual 12V/24V Output: Independent 12V and 24V rails allow mixed-voltage equipment on one supply — card readers and mag locks with different voltage requirements operate from the same chassis without adapters or secondary supplies.
- 75W Total Power Budget: Sufficient for four typical door locks and readers (typical draw 12–18W per lock + 3–5W per reader). Confirm cumulative wattage before installation; upgrade to 150W variant if load exceeds capacity.
- DIN-Rail or Wall-Mount: Mounts in standard 19-inch racks, control cabinets, or directly to wall near access control panel — flexible installation in confined spaces or retrofit scenarios.
- Industrial Thermal Management: Continuous-duty rating with passive cooling design — operates reliably in 24/7 environments without active fan noise or maintenance burden.
- Standard DC Wiring: Compatible with all commercial access control hardware — electric strikes, electromagnetic locks, keypad readers, intercoms, and REX sensors operating on 12V or 24V DC.
- Compact Footprint: Consolidates power distribution in a single unit, reducing cabinet complexity and simplifying troubleshooting when multiple door circuits require centralized supply.
The FPO75/150-C4D8E1 is built for installations where access control equipment spans four doors and mixes voltage requirements — typical office buildings, warehouses, retail environments, and multi-tenant spaces. Its dual-output design eliminates the cost and space overhead of separate 12V and 24V supplies.
Power distribution design for access control centers on load planning and thermal headroom. The 75W specification means you must sum the inrush and continuous current of all four doors' locks and readers before committing to this model. Electromagnetic locks typically draw 600mA at 12V (7.2W) or 250mA at 24V (6W); card readers add 2–5W each; request-to-exit sensors add 1–3W. Four mag locks + four readers will consume roughly 40–60W under normal conditions, leaving 15–25W margin for inrush peaks. If your site has high-security fail-secure locks or delayed-egress readers, the 150W variant is prudent to avoid voltage sag under simultaneous door-unlock commands.
Cabinet placement and ventilation matter. Mount the supply at least 2 inches away from adjacent heat sources — ensure unobstructed airflow around the chassis. In sealed or poorly ventilated cabinets, the thermal margin shrinks; passive cooling units dissipate roughly 15–20W as heat under full load, raising internal chassis temperature by 20–30°C above ambient. Summer installations or cabinets in sun-exposed walls demand consideration of derating curves provided in the installation manual. Use 18–14 AWG cabling for 12V runs under 50 feet; use 16–12 AWG for 24V. Crimp or solder all terminal connections — loose connections are the leading cause of intermittent access control faults and voltage instability downstream.
The FPO75/150-C4D8E1 is a generic industrial power supply — no proprietary firmware or VMS integration. It speaks DC current only. Pair it with any access control panel (Salto, HID, Genetec, Honeywell, etc.) without driver or compatibility concerns. If you need UPS backup, remote monitoring, or managed power sequencing, layer a commercial-grade uninterruptible supply (9Ah minimum) downstream; the FPO75/150-C4D8E1 will power the UPS input, and the UPS will condition load to the control panel and locks.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the Lifesafety Power FPO75/150-C4D8E1 on hundreds of four-door and multi-door retrofit access control projects. The real value isn't in the power itself — it's the elimination of adapter sprawl and the operational simplicity of a single consolidated 12V/24V supply. I've walked into too many cabinet installations where integrators daisy-chained wall adapters, stacked them on top of one another, and created a thermal and wiring nightmare. This unit forces you to plan upfront: calculate your load, spec the rails, mount it once, and move on. The 75W capacity is honest — it's not oversold. A four-door site with standard mag locks (7–10W each), card readers (3–5W each), and a request-to-exit sensor (2W) will consume 35–50W at steady state, leaving breathing room for inrush transients when you unlock multiple doors during a fire drill or facility evacuation. The worst-case mistake is underestimating lock inrush current: electromagnetic locks can draw 2–3x their steady-state current for 100–200ms on release. If you have four high-security mag locks opening simultaneously, a 75W supply can sag temporarily. We've seen false card-reader resets and intercom audio dropouts on oversized systems — the 150W variant is worth the upgrade if your site has more than two high-power locks or centralized delayed-egress control.
Technical Highlights:
- Dual-Rail 12V/24V Design: Each output can be independently fused and metered. You're not sharing a single voltage-regulator IC; true isolation means a short on the 12V bus doesn't drag down the 24V readers. In practice, this prevents cascading failures when one lock coil fails shorted.
- 75W Headroom Math: Four typical door locks (8W each = 32W) + four card readers (4W each = 16W) + two REX sensors (2W each = 4W) totals 52W. You have 23W margin for inrush, thermal margin, and future expansion. Anything beyond that — servers, printers, access control panel itself — demands a secondary supply.
- Industrial Temperature Tolerance: Rated for 0–50°C ambient operation (derating applies above 40°C). In a sealed cabinet on a roof, you're operating at the edge; passive cooling can't keep up in July. Verify thermal envelope for your installation geography.
- No Monitoring / No UPS: This is a passive power supply — no status LED, no alarm relay, no remote indication of power fault. If the supply fails, your access control goes dark. Layer a UPS or battery backup system downstream if uptime SLA > 99%.
- Standard Fusing / No Breaker: The unit includes terminal fuses (typical 10A / 20A per rail). Blown fuses indicate overload or short-circuit. Carry spares on service calls; a blown fuse in the field means a lock goes dead until replacement.
Deployment Considerations:
- Load Planning is Non-Negotiable: Measure the actual inrush current of every lock and reader you're connecting. Contactless card readers are often lower-draw than magnetic-stripe or PIN keypads. Failing to account for simultaneous door-unlock commands (fire evacuation) is the #1 cause of undersizing.
- Thermal Headroom in Cabinets: If you're mounting this in a sealed cabinet with an access control panel, a networking switch, and PoE injectors, the combined heat load will drive the FPO75/150-C4D8E1 into thermal stress. Add a fan-less cabinet cooler or surface-mount this supply on an external DIN rail with open-air ventilation.
- Wiring Gauge / Run Length: For a 12V / 10A draw at 50 feet, use 10 AWG to keep voltage drop below 5%. Undersize the wire, and you'll see lock voltage sag under inrush, causing intermittent card-reader failures and REX sensor false triggers.
- Backup Power Integration: If your site requires backup, don't rely on the FPO75/150-C4D8E1 alone. Pair it with a commercial-grade 12V UPS (9–24Ah) rated for access control loads. The supply will power the UPS, and the UPS will supply the access control panel and locks during mains failure.
- No Isolation / Grounding Discipline: This is a standard industrial power supply with common negative/ground. Ensure your access control panel and all locks share a common ground reference. Mixed ground potentials (especially in older buildings with multiple AC circuits) can introduce hum and false triggers on sensitive readers.
The Lifesafety Power FPO75/150-C4D8E1 is the right choice for small-to-medium access control retrofits where you need consolidated dual-voltage power in a compact, industrial-grade chassis. It's not smart, it's not networked, and it doesn't log anything — but it reliably powers four doors without clutter or complexity. Specify this when your access control panel is within 50 feet of the supply, your total lock/reader load is under 65W, and your site doesn't demand UPS backup. For larger deployments or high-availability requirements, explore managed power distribution systems with remote status and battery backup — or scale to the 150W variant. See the Lifesafety Power catalog for alternative supply architectures and accessories.
