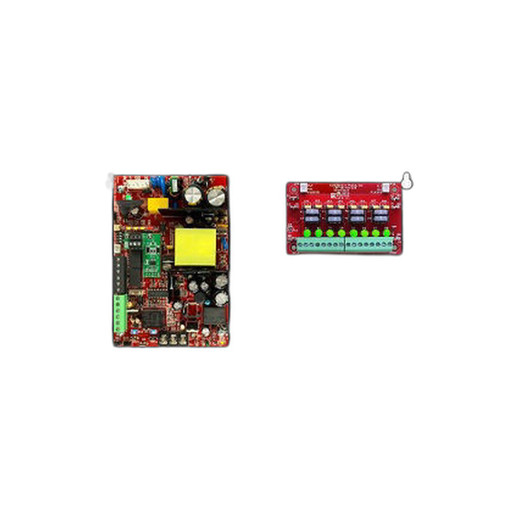

Lifesafety Power FPO75/150-2C8P2D8PE6M1 Dual-Output Power Supply with Relay & Auxiliary Control
Overview
The FPO75/150-2C8P2D8PE6M1 is a power supply module purpose-built for access control and security automation systems. It delivers dual-output capability (selectable 6A @ 12VDC or 3A @ 24VDC from the 150W channel, with a secondary 75W channel) and integrates 16 class 2 power-limited relay outputs and 16 auxiliary outputs, each independently configurable for failsafe, failsecure, or fire-alarm-interface (FAI) operation. This architecture eliminates the need for external relay modules in door control and lock supervisory applications, reducing panel clutter and wiring complexity on installations with multiple electronically-secured access points.
Compatibility
The unit is designed for integration into Lifesafety Power control panel systems and compatible with standard 12VDC and 24VDC access control hardware including electronic locks, magnetic locks, request-to-exit devices, and door position sensors. Verify integration with your specific control panel or access management system before procurement—relay output voltage/current ratings and bus (Bus1/Bus2) routing must match panel firmware configuration.
Installation Notes
The E6 enclosure (30H × 23W × 6.5D inches) ships with a Mercury back plate and door mount kit. Each relay and auxiliary output is individually selectable in firmware for class 2 operation at 2.5A maximum per channel. Failsafe/failsecure switching occurs per-output, enabling mixed-mode deployments (e.g., magnetic lock on failsecure, strike on failsafe) within a single enclosure. Ensure load calculations account for aggregate current draw across all active outputs and dual supply channels to avoid nuisance disconnection or thermal shutdown.
