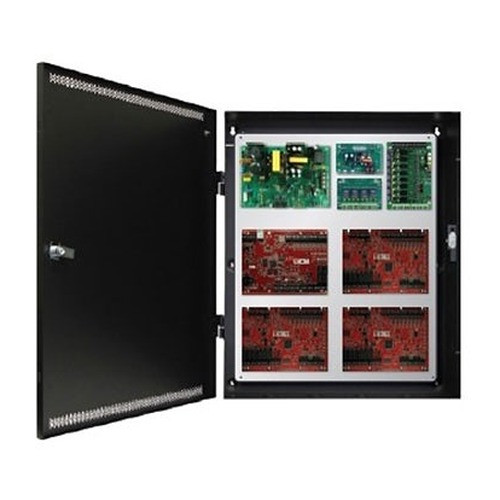

Lifesafety Power FPO250-B100D8PM8PNLCE4M 250W Managed Power Supply
Overview
The FPO250-B100D8PM8PNLCE4M is a 250W power supply designed to deliver controlled 12VDC at 20A or 24VDC at 10A to distributed security endpoints and accessory modules in integrated surveillance or access-control installations. Eight class 2 power-limited DC auxiliary outputs at 2.5A per channel address multi-camera or multi-reader deployments where centralized power management with individual circuit isolation is required. Each output can be independently assigned to Bus1 or Bus2, enabling logical separation of loads and reducing single-point failure risk across networked systems.
Key Specifications
Output Configuration: 250W total capacity split across primary output (20A @ 12VDC or 10A @ 24VDC) and 8 managed auxiliary channels at class 2 power-limited 2.5A each. This separation allows you to size primary rails for core IP cameras or PoE infrastructure while using auxiliary outputs for status indicators, door locks, or solenoid coils without risking brownout across the entire system.
Bus Selectivity: Per-output Bus1/Bus2 assignment enables dual-circuit operation—useful in redundant or segmented facility layouts where load balancing or circuit isolation by floor or zone improves uptime and simplifies troubleshooting.
Managed Distribution Module (D8): Class 2 power-limited architecture protects connected devices and meets code requirements for hardwired low-voltage systems. The included 8-output managed distribution panel consolidates all secondary circuit management at a single point, reducing field wiring complexity and improving maintainability.
Installation Context
Deploy this supply in server rooms, equipment racks, or main security cabinets feeding distributed PoE switch uplinks, edge recording systems, and auxiliary control loads across multi-floor or multi-zone properties. The modular output design is well-suited to systems where power supervision and selective load disconnect are required for compliance or operational continuity.
