Lifesafety Power FPO150-B100C8D8E4-4DM2 150W Modular Power Supply
Overview

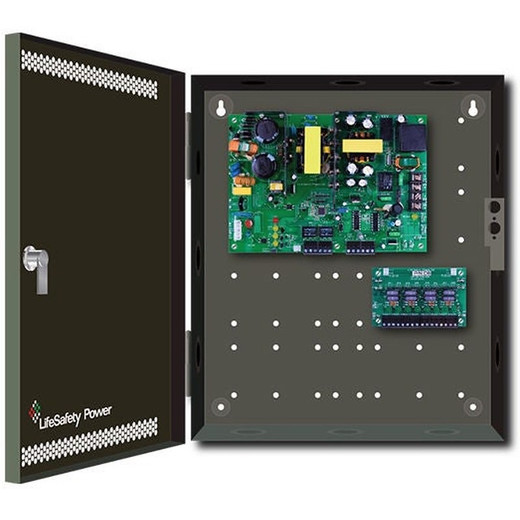

The FPO150-B100C8D8E4-4DM2 is a 150W modular power supply engineered for distributed access control and surveillance installations. The unit delivers simultaneous 12V and 24V outputs across eight auxiliary ports, eliminating the need for separate power sources at different voltage levels. The modular frame accepts up to eight plug-in modules, allowing you to customize output capacity and protection for door controllers, lock interfaces, power distribution modules, and auxiliary devices in a single enclosure. This architecture reduces panel clutter and simplifies wiring in larger security deployments.
Compatibility
The FPO150-B100C8D8E4-4DM2 is compatible with Lifesafety Power access control system frames and integrates with standard 12V and 24V door locks, mag locks, strike solenoids, relay modules, and auxiliary devices commonly found in commercial access control installations. The unit supports modular expansion using Lifesafety Power output modules, allowing field customization for relay switching, power distribution, or additional voltage channels. Verify exact module compatibility with your system integrator before ordering.
Installation Notes
Mount the unit in a standard 19-inch equipment rack or wall-mounted control cabinet with adequate ventilation — no obstructed vents. Input voltage is 120VAC (standard North American commercial power). Terminate auxiliary outputs via the eight DIN or terminal connectors using 12–18 AWG wire rated for the connected load. Verify total load does not exceed 150W; exceeding this limit triggers internal current limiting and potential module shutdown. Ground all metal frames and mounting hardware to building ground per NEC requirements. Allow clearance for DIN module insertion and removal during service.
