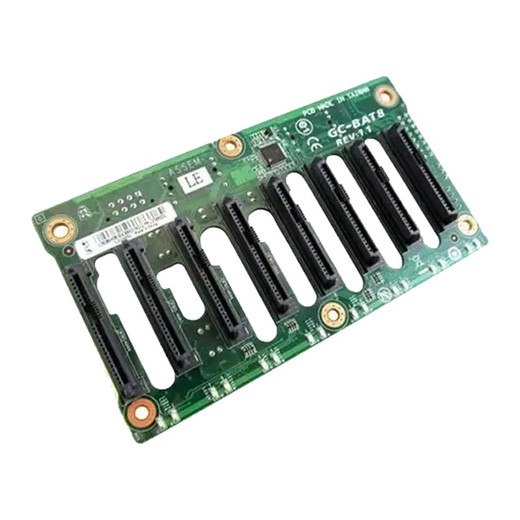

Lenovo 7XH7A05906 Thinksystem ST550 2.5INCH 8-BAY Backplane KIT

Lenovo 7XH7A05906 I/O Ports Panel

Overview

The Lenovo 7XH7A05906 is a specific I/O ports panel designed to integrate 2.5-inch drives within the ThinkSystem ST550 server chassis. This component is crucial for expanding storage capacity in a 2.5-inch drive configuration, ensuring proper data connectivity and drive bay management for the server system. Its green product color is an aesthetic detail, but its function is purely about enabling the server's storage subsystem.

Compatibility

This backplane kit is engineered exclusively for the Lenovo ThinkSystem ST550 server model when configured with 2.5-inch drives. It is not compatible with any other server models or different drive form factors within the ThinkSystem line. Verify your ST550 server's drive bay size before ordering.

Installation Notes

Installation requires accessing the server's internal drive bays. As a component of the server's storage subsystem, it connects directly to the motherboard's SATA/SAS controllers. Ensure the server is powered down and properly grounded before attempting installation. Specific torque values for mounting screws are not provided, but standard practice for server components should be followed to avoid over-tightening.
