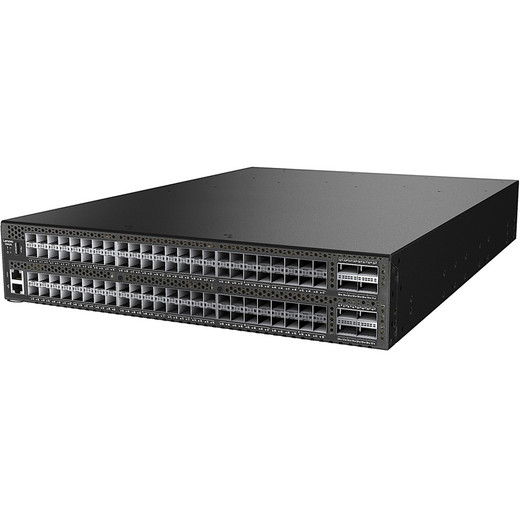

Lenovo 7D1SA004WW DB630S, 48P (32G OPTICS), 2 PS, RAIL KIT
Lenovo 7D1SA004WW DB630S, 48P (32G OPTICS), 2 PS, RAIL KIT
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: 7D1SA004WW
Condition: New
Write a Review
Lenovo

Lenovo 7D1SA004WW DB630S 48P (32G Optics) 2 PS Rail KIT

Lenovo 7D1SA004WW DB630S 48-Port Switch Overview The Lenovo 7D1SA004WW DB630S is a 2U rack-mountable Fibre Channel switch designed for high-performanc…

$206,446.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Lenovo 7D1SA004WW DB630S 48P (32G Optics) 2 PS Rail KIT

$206,446.99
Add to Cart

Overview

SKU: 7D1SA004WW
Condition: New

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Lenovo 7D1SA004WW DB630S 48-Port Switch

Overview

The Lenovo 7D1SA004WW DB630S is a 2U rack-mountable Fibre Channel switch designed for high-performance storage area networks (SANs). It provides 48 ports supporting 128 Gb, 32 Gb, and 16 Gb Fibre Channel speeds, enabling robust connectivity for demanding enterprise storage environments. This model includes two redundant 1500W AC power supplies and a rail kit for straightforward integration into standard server racks. It is engineered for environments requiring high-speed, reliable data transfer between servers and storage arrays.

Compatibility

This switch is designed to integrate with a wide range of Fibre Channel storage systems and servers. It supports various transceiver types including 128 Gb (4x 32 Gb) FC QSFP+, 32 Gb FC SFP+, and 16 Gb FC SFP+ across short wavelength (SWL), long wavelength (LWL), and extended long wavelength (ELWL) variants. It is compatible with Lenovo's ThinkSystem rack cabinets and other standard 19-inch server racks. Its port types include F_Port, E_Port, EX_Port (with optional license), M_Port, and D_Port, ensuring broad interoperability.

Installation Notes

The Lenovo 7D1SA004WW DB630S requires standard 100-240V AC power input for its redundant hot-swap power supplies. It features non-port-to-port side airflow, meaning airflow is directed from front to back. This unit includes three hot-swap system fan assembly units for N+1 cooling redundancy. Management is handled via a 10/100/1000 Mb Ethernet port, an RS-232 port, and a USB port for firmware and log storage. A one-year firmware entitlement and support license is included, with extensions available.

Expert Analysis
Specifications
Weight: 50.00 lb
Unspsc Code: 43202206
Component: Specification
Machine Type: 7D1S
Form Factor: Standalone or 2U rack mount
Media Types: 128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL) 4x 16 Gb FC QSFP+: SWL 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) 16 Gb FC SFP+: SWL
Fc Port Types: F_Port, E_Port, EX_Port (Requires an optional Integrated Routing License), M_Port (Mirror Port), D_Port (Diagnostic Port)
Data Traffic Types: Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)
Classes Of Service: Class 2, Class 3, Class F (inter-switch frames)
Standard Features: Full Fabric mode, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics, In-flight Compression, In-flight Encryption
Optional Features: Enterprise Bundle (Inter-Switch Link (ISL) Trunking, Fabric Vision, Extended Fabric) and Integrated Routing Note: Model CTO6 comes with the Enterprise Bundle license included
Cooling: Three hot-swap system fan assembly units (two fans in each unit) with N+1 cooling redundancy. Non-port to port side airflow.
Power Supply: Two redundant hot-swap 1500 W AC (100 - 240 V) power supplies (IEC 320-C14 connector)
Hot-Swap Parts: SFP+/QSFP+ transceivers, fan assembly units, and power supplies
Management Ports: One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage)
Firmware Entitlement: One-year firmware entitlement and support license is included. Firmware entitlement extension licenses are included in the warranty upgrades.
Dimensions: Height: 87 mm (3.4 in.); width: 440 mm (17.3 in.); depth: 610 mm (24.0 in.)
Description: Part number
4M27A65422: BF6G
4M27A08820: B145
4M27A09986: B26T
01Kn805: AVGH
4M27A65416: BF69
4M27A65417: BF6A
4M27A65418: BF6B
4M27A65419: BF6C
4M27A65424: BF6D
4M27A65431: BQQE
01Kn789: AVGC
01Kn793: AVGD
01Kn795: AVGE
01Kn799: AVGF
88Y6393: A22R
4M27A65411: BF64
4M27A65411: BF64
4M27A65412: BF65
4M27A65413: BF66
4M27A65414: BF67
4M27A65415: BF68
00My768: ASK2
00My770: ASK3
4M27A65420: BF6E
4M27A65421: BF6F
00Yh933: ATSY
00Yh929: ATSX
00Vx003: AT2U
00Vx005: AT2V
00Fm412: A5UA
00Fm413: A5UB
00Fm413: A5UB
00Fm414: A5UC
00Mn499: ASR5
00Mn502: ASR6
00Mn505: ASR7
00Mn508: ASR8
00Mn511: ASR9
00Mn514: ASRA
00Mn517: ASRB
00Mn520: ASRC
4Z57A10845: B2P9
4Z57A10846: B2PA
4Z57A10847: B2PB
4Z57A10847: B2PB
4Z57A10848: B2PC
4Z57A10849: B2PD
4Z57A10850: B2PE
4Z57A10850: B2PE
4Z57A10851: B2PF
4Z57A10852: B2PG
00We123: AVFW
00We127: AVFX
00We131: AVFY
00We135: AVFZ
00We139: AVG0
00We139: AVG0
90Y3718: A1MT
90Y3727: A1MW
40K8785: 3802
40K5581: 3803
40K8927: 3804
40K8930: 3805
40K8930: 3805
Transceiver: Standard
16 Gb Fc Swl Sfp+ (88Y6393: FC-PI-6
16 Gb Fc Lwl Sfp+ (00My768: FC-PI-5
10/100/1000 Mb Ethernet Port: 1000BASE-T
7S0C0019Ww: S1PA
7S0C0018Ww: S1P9
7S0C0018Ww: S1P9
7S0C001Aww: S1PB
7S0C001Bww: S1PC
7S0C0010Ww: S1K6
7S0C0013Ww: S1K8
7S0C001Kww: S4MB
7S0C0011Ww: S1K7
7S0C0014Ww: S1K9
7S0C001Lww: S4MC
7S0C0012Ww: S1D8
7S0C0015Ww: S1D9
7S0C001Jww: S4MA
39Y7937: 6201
Cto Only: 6568
4L67A08366: 6311
4L67A08366: 6311
39Y7938: 6204
39Y7932: 6263
39Y7932: 6263
39Y7931: 6207
39Y7931: 6207
46M2592: A1RF
39Y7930: 6222
39Y7930: 6222
39Y7924: 6211
39Y7929: 6223
39Y7928: 6210
39Y7928: 6210
39Y7918: 6213
39Y7917: 6212
39Y7927: 6269
39Y7920: 6218
39Y7920: 6218
39Y7921: 6217
46M2593: A1RE
39Y7925: 6219
39Y7922: 6214
39Y7919: 6216
00Cg265: A53E
00Cg267: A53F
39Y7923: 6215
Lenovo Mid-Mount Rack Kit: 01KN770
6741A1F: IBM TS4300 3U Tape Library Base Unit
6741B1F: IBM TS4300 3U Tape Library Base Unit - Max 48U
6741A3F: TS4300 Tape Library Expansion Unit
6741B3F: IBM TS4300 3U Tape Library Expansion Unit - Max 48U
01Kp938: LTO 7 FH Fibre Channel Drive
01Kp954: LTO 8 FH Fibre Channel Drive
02Jh837: LTO 9 FH Fibre Channel Drive
01Kp936: LTO 7 HH Fibre Channel Drive
01Kp952: LTO 8 HH Fibre Channel Drive
02Jh835: LTO 9 HH Fibre Channel Drive
Model: Description
7D6Da007Ww: ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6Da007Ww: ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6Da008Ww: ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6Ea009Ww: ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6Ea00Aww: ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074Rx: 42U Standard Rack (1000mm)
93604Px: 42U 1200mm Deep Dynamic Rack
93604Ex: 42U 1200mm Deep Dynamic Expansion Rack
93614Px: 42U 1200mm Deep Static Rack
93614Ex: 42U 1200mm Deep Static Expansion Rack
93634Px: 42U 1100mm Dynamic Rack
93634Ex: 42U 1100mm Dynamic Expansion Rack
93084Px: 42U Enterprise Rack
93084Ex: 42U Enterprise Expansion Rack
4Pu7A93176: C0QH
4Pu7A93169: C0DA
4Pu7A93177: C0QJ
4Pu7A93177: C0QJ
4Pu7A93170: CBVF
4Pu7A93170: CBVF
00Yj776: ATZY
00Yj776: ATZY
00Yj779: ATZX
00Yj779: ATZX
00Yj777: ATZZ
00Yj778: AU00
4Pu7B08148: CD15
4Pu7B08149: CD16
4Pu7A93181: C0QN
4Pu7A93174: CBVJ
4Pu7A93178: C0QK
4Pu7A93171: C0D8
4Pu7A93182: C0QP
4Pu7A93175: C0CS
4Pu7A93175: C0CS
4Pu7A93180: C0QM
4Pu7A93180: C0QM
4Pu7A93173: CBVH
4Pu7A93179: C0QL
4Pu7A93179: C0QL
4Pu7A93172: CBVG
00Yj783: AU04
00Yj781: AU03
00Yj782: AU02
00Yj780: AU01
4Pu7B12339: CE6L
4Pu7B12339: CE6L
4Pu7A90808: C0D4
4Pu7A81117: BNDV
4Pu7A90809: C0DE
4Pu7A81118: BNDW
4Pu7A90810: C0DD
4Pu7A77467: BLC4
4Pu7A90811: C0DC
4Pu7A77468: BLC5
4Pu7A90812: C0DB
