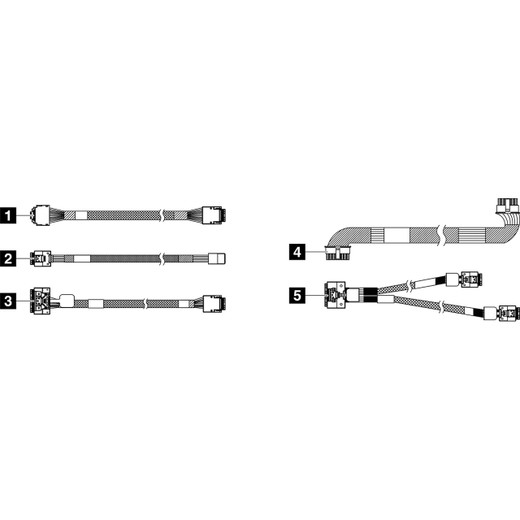

Lenovo 4X97A83824 SR630 V3 4x3.5-Inch SAS/SATA Backplane Cable Kit

Overview

The Lenovo 4X97A83824 is a factory-matched backplane cable kit designed specifically for the ThinkSystem SR630 V3 server configured with a 4x3.5-inch SAS/SATA drive bay. When you're building out or expanding storage on an SR630 V3, using the correct OEM cable assembly eliminates guesswork around connector pinout, cable routing clearances, and signal integrity — third-party substitutes frequently cause fitment issues inside the dense SR630 V3 chassis. This kit provides the direct signal path between the server's storage backplane and the system board or HBA/RAID adapter, supporting both SAS and SATA drive populations in the 3.5-inch bay configuration.

Compatibility

Designed for the Lenovo ThinkSystem SR630 V3 configured with the 4x3.5-inch SAS/SATA drive backplane. This cable kit is specific to the 4-bay 3.5-inch large-form-factor backplane variant of the SR630 V3 — it is not interchangeable with 2.5-inch backplane configurations or earlier SR630/SR630 V2 generations, which use different connector layouts and routing paths. Verify your SR630 V3 backplane option order code before purchasing to confirm the 4x3.5-inch bay configuration is installed.

Installation Notes

The dual SAS/SATA interface support means this kit can serve mixed drive populations (e.g., SATA SSDs alongside SAS HDDs) without requiring separate cabling, provided the attached HBA or RAID controller supports both protocols. Cable routing inside the SR630 V3 chassis is defined by Lenovo's service documentation — follow the published routing guide to avoid pinch points near the mid-plane and to maintain minimum bend radius on the cable assembly. Country of origin is Mexico; weight is 10.00 lb including packaging.

Expert Analysis
Specifications
Weight: 10.00 lb
Country Origin: MX
Interface: SAS, SATA
Country Of Origin: MX
Unspsc Code: 26121620
