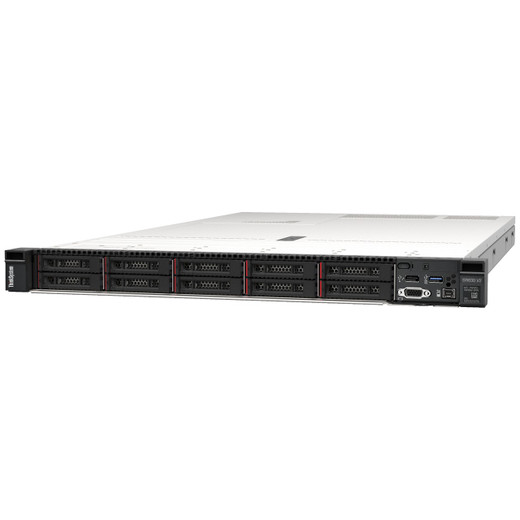

Lenovo 4X97A59792 SR630 V2 4X3.5 Anybay BP Cable KIT

Lenovo 4X97A59792 SR630 V2 4x3.5 Anybay Backplane Cable Kit

Overview

The Lenovo 4X97A59792 is a factory-matched backplane cable kit designed for the ThinkSystem SR630 V2 server configured with a 4x3.5-inch Anybay drive bay backplane. If you're adding or replacing the signal and power cabling that connects the Anybay backplane to the system board and HBA/RAID adapter, this kit supplies the correct manufacturer-spec harness — eliminating the guesswork of sourcing compatible cables individually and avoiding mismatched connectors that cause drive recognition failures during commissioning.

Compatibility

Designed specifically for the Lenovo ThinkSystem SR630 V2 (7Z71, 7Z72) server platform equipped with the 4x3.5-inch Anybay hot-swap backplane option. Anybay backplanes support both SAS/SATA and NVMe drives from a shared backplane — the cable kit must match the specific backplane variant installed, so confirm your BP option code before ordering. This kit is not compatible with the 8x2.5-inch or 10x2.5-inch backplane configurations, nor with the SR630 V1 chassis. Cross-reference your server's Feature on Demand (FoD) configuration or the Lenovo Configurator to verify the correct cable assembly for your backplane part number.

Installation Notes

Weigh 0.95 lb and measure 11.60 x 9.90 x 2.20 in — sized for the SR630 V2 chassis cable routing path without modification. Route cables per the SR630 V2 cable management guide to avoid pinch points near the fan wall. All connectors are keyed; forced seating will damage backplane headers. Power down and discharge the system fully before disconnecting or reseating the backplane cable assembly. No special tooling is required beyond a standard screwdriver for the chassis access panel.
