Lenovo 30K5004NUS ThinkStation P3 Tiny Gen 2 Intel Core Ultra 7 265 vPro Ecores Up to 4.60GHZ 30MB

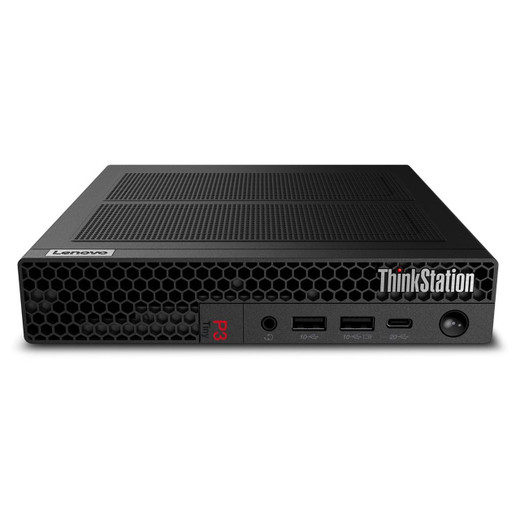

Lenovo 30K5004NUS ThinkStation P3 Tiny Gen 2 Mini Workstation

Overview

The Lenovo ThinkStation P3 Tiny Gen 2 (30K5004NUS) is a compact, sub-2-liter workstation built around the Intel Core Ultra 7 265 vPro processor — a 20-core (8P+12E) chip that turbos to 5.3GHz with 30MB Smart Cache. At 179 × 182.9 × 37mm, it fits behind a monitor or inside a rack shelf while still supporting up to 128GB DDR5 and dual display outputs. The target deployment is space-constrained commercial environments that need a fully managed, enterprise-grade PC: VMS operator stations, video wall control nodes, industrial desktop replacements, or AI-inferencing edge hosts. MIL-STD-810H testing means it handles vibration and temperature swings that a consumer mini-PC would not.

Compatibility

The 30K5004NUS ships with Windows 11 Pro 64-bit and Intel vPro Enterprise with AMT 16, making it compatible with mainstream enterprise management stacks (Microsoft Endpoint Manager, Intel EMA). The Intel BE200 Wi-Fi 7 (802.11be 2×2) and BT 5.4 module is vPro-certified, supporting out-of-band management over wireless. Rear I/O covers 4× USB-A (USB 3.2 Gen 1/2), HDMI 2.1, and DisplayPort 1.4 — pair it with any dual-monitor VMS console or digital signage controller without a docking station. The 230W external adapter is a standard barrel-connector supply; if you are mounting this in a rack or enclosure, confirm your cable management accommodates the external brick. The discrete TPM 2.0 (FIPS 140-2) satisfies most enterprise security baselines and integrates cleanly with BitLocker and Windows Hello for Business.

Installation Notes

The included vertical stand keeps the unit upright in a desktop orientation. Dimensions with rubber feet are 7.0 × 7.2 × 1.5 inches — measure your shelf or VESA mount adapter clearance before ordering. The Kensington Security Slot (3×7mm) is present for physical lock-down in shared spaces. The chassis intrusion switch logs physical access events to the system event log, useful for audited deployments. Memory is configured as a single 32GB SODIMM in one of two DDR5-5600 slots; a second SODIMM can bring total capacity to 128GB (2×64GB CSODIMM) if workload demands grow.

What's in the Box

• 1× ThinkStation P3 Tiny Gen 2 system unit
• 1× 230W 89% efficiency AC adapter
• 1× Vertical stand
• 1× USB Traditional Keyboard (Black, English)
• 1× USB Calliope Mouse (Black)
