Lenovo 30K5001WUS ThinkStation P3 Tiny Gen 2 Intel Core Ultra 5 235 vPro Ecores Up to 4.40GHZ 24MB

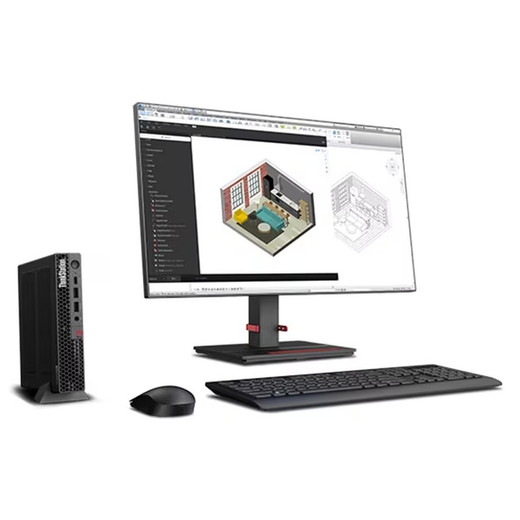

Lenovo 30K5001WUS ThinkStation P3 Tiny Gen 2 Workstation

Overview

The Lenovo ThinkStation P3 Tiny Gen 2 (30K5001WUS) is a compact professional workstation built around Intel's Core Ultra 5 235 vPro processor and a dedicated NVIDIA RTX A400 4GB GPU — a combination that delivers real ISV-certified graphics performance in a chassis that occupies roughly the footprint of a hardcover book. This is the machine you reach for when a surveillance command center, digital forensics station, or edge analytics node needs discrete GPU compute but can't spare a full tower footprint or a rack slot. The 230W external power brick keeps the chassis itself fanless-adjacent in acoustic terms, and the vPro platform enables out-of-band remote management that IT teams running distributed physical security infrastructure will find genuinely useful.

The 30K5001WUS ships with Windows 11 Pro 64-bit, making it immediately deployable on a corporate domain without OS licensing overhead. The three-year on-site warranty (embedded in the model name) means field service doesn't require shipping the unit — relevant when it's mounted behind a monitor in a guard booth or tucked inside a credenza at a reception desk.

Key Features

• Intel Core Ultra 5 235 vPro — 14 cores, E-cores up to 4.40 GHz: The 14-core layout (all efficiency cores in this configuration) handles sustained multi-threaded workloads — decoding multiple HD streams, running VMS client software, and processing analytics simultaneously — without the thermal throttling you'd see in a fanless thin client. vPro adds Intel AMT for KVM-over-LAN remote access, which matters when the workstation is deployed in a remote or unmanned location.
• NVIDIA RTX A400 4GB GDDR6: The A400 is ISV-certified for professional applications including Milestone XProtect, Genetec Security Center, and similar VMS platforms that validate GPU-accelerated decoding. Four gigabytes of GDDR6 is sufficient for multi-monitor display walls and GPU-assisted video decode on 10–16 simultaneous HD streams. This is not a gaming GPU — it's a workstation card with ECC support and driver stability commitments that consumer GPUs don't carry.
• 512GB PCIe Gen 5 TLC NVMe SSD (M.2 2280, Opal self-encrypting): PCIe Gen 5 sequential read speeds roughly double Gen 4 — meaningful when exporting large video clip packages for legal discovery or loading large VMS databases at boot. The Opal 2.0 self-encrypting drive means disk-level encryption without BitLocker CPU overhead; critical for CJIS-sensitive deployments where data-at-rest encryption is a compliance requirement.
• 16GB DDR5-5600 (1x SO-DIMM, second slot open): DDR5-5600 delivers roughly 50% more bandwidth than DDR4-3200 — the platform handles memory-intensive tasks like running a full VMS client with multiple live view windows more smoothly. The second SO-DIMM slot is open, supporting expansion up to 128GB without replacing the installed module — plan the upgrade path before deployment if analytics workloads are expected to grow.
• Intel BE200 Wi-Fi 7 + Bluetooth 5.4 (vPro): Wi-Fi 7 (802.11be) supports the 6 GHz band and multi-link operation — in dense RF environments like casino floors or large open-plan offices, this reduces the wireless contention that causes dropped VMS connections on older Wi-Fi 5/6 adapters. The vPro-integrated wireless also participates in Intel AMT wireless manageability.
• PCIe, USB, and Ethernet interfaces: The I/O suite covers standard enterprise connectivity — wired Gigabit Ethernet for the primary network drop, USB for peripherals and local camera import, and PCIe for internal expansion. Check the full I/O spec sheet for exact USB port counts and display output configuration before finalizing a multi-monitor deployment.
• 230W power supply: The 230W adapter provides enough headroom for the RTX A400 under sustained GPU load without throttling. The external brick design keeps the chassis compact and simplifies in-field power supply replacement — a practical serviceability point for long-lifecycle deployments.
• Tiny form factor (19.50 x 10.50 x 5.50 in external box dimensions): The ThinkStation P3 Tiny chassis itself is significantly smaller than the shipping box dimensions reflect — designed to VESA-mount behind a monitor or sit flat on a desk. This makes it practical for deployments where rack space is not available and aesthetics matter, such as front-desk security consoles or control rooms with limited surface area.

Integration and Compatibility

The 30K5001WUS runs Windows 11 Pro 64-bit out of the box, which means standard domain join, Group Policy management, and enterprise endpoint agents (EDR, DLP) install without compatibility issues. The RTX A400 holds ISV certifications relevant to physical security software stacks — verify your specific VMS version against NVIDIA's RTX A400 certification matrix before deployment if GPU-accelerated decode is a hard requirement. The Intel vPro platform (AMT) integrates with Intel Endpoint Management Assistant and third-party RMM tools for out-of-band management, enabling remote BIOS access and power cycling without a local technician. DDR5-5600 SO-DIMMs are the correct memory type for expansion; confirm Lenovo's compatibility list for validated third-party modules before purchasing aftermarket RAM. The M.2 2280 PCIe Gen 5 slot hosts the factory SSD; a second M.2 slot availability should be confirmed against the full PSREF datasheet for this model before planning local storage expansion.

Frequently Asked Questions

Q: What processor does the 30K5001WUS use, and how many cores does it have?

A: The 30K5001WUS uses the Intel Core Ultra 5 235 vPro with 14 cores and 14 threads. The efficiency cores reach up to 4.40 GHz boost. The chip also includes 24MB of cache.

Q: Can I expand the RAM beyond 16GB?

A: Yes. The unit ships with 1x16GB DDR5-5600 SO-DIMM installed in one of two SO-DIMM slots. The platform supports up to 128GB maximum, so you can add a second SO-DIMM or replace both modules with higher-capacity sticks as workloads grow.

Q: Is the SSD encrypted, and does it meet data-at-rest compliance requirements?

A: The factory-installed 512GB M.2 NVMe SSD is a TLC Opal self-encrypting drive (SED). Opal 2.0 SEDs provide hardware-based AES encryption that satisfies data-at-rest requirements in frameworks like CJIS and HIPAA without imposing software encryption CPU overhead.

Q: What GPU is included, and is it suitable for VMS workloads?

A: The included GPU is the NVIDIA RTX A400 with 4GB GDDR6. It is a professional workstation GPU (not a consumer card), carrying ISV certifications for a range of professional applications. For VMS platforms that support GPU-accelerated video decode, verify your specific VMS version against the NVIDIA RTX A400 certification matrix.

Q: What is the warranty on the 30K5001WUS?

A: The model name encodes a 3-Year On-Site warranty, meaning a Lenovo technician comes to the deployment location for covered repairs rather than requiring the unit to be shipped in.

Q: Does the 30K5001WUS support remote management without a local technician?

A: Yes. The Intel Core Ultra 5 235 vPro platform includes Intel AMT (Active Management Technology), which enables KVM-over-LAN, remote power cycling, and out-of-band BIOS access even when the OS is unresponsive — useful for unmanned or remote physical security deployments.

James Everett

The 30K5001WUS hits a specific gap in physical security deployments: you need a discrete, ISV-certified GPU for VMS decode and analytics, Intel vPro for remote management, and a chassis that fits behind a monitor on a VESA arm — and you need it to run reliably for three years with on-site service. The RTX A400's 4GB GDDR6 and professional driver stack make it a materially different proposition from shoehorning a consumer GPU into a small form factor machine.

Technical Highlights:

• PCIe Gen 5 SSD: Sequential throughput roughly doubles Gen 4 — this matters at shift change when a VMS operator is exporting a multi-gigabyte clip package for law enforcement handoff. Opal SED encryption runs in the drive controller, not the CPU, so there's no performance penalty for compliance.
• DDR5-5600 with 128GB ceiling: The open second SO-DIMM slot means you can double RAM to 32GB in the field without replacing the factory module — useful if the analytics workload grows after initial deployment. DDR5-5600 bandwidth also reduces latency on memory-intensive VMS client operations compared to DDR4 systems.
• Intel vPro + BE200 Wi-Fi 7: AMT remote management works over both wired Ethernet and the Wi-Fi 7 adapter — meaning you can reach this machine out-of-band on a wireless-only drop, which comes up more often than expected in retrofit security console installations where running a new Ethernet run isn't feasible.

Deployment Considerations:

• The shipping box dimensions (19.50 x 10.50 x 5.50 in) reflect packaging, not the chassis itself — the P3 Tiny is a genuinely small unit. Confirm VESA mount compatibility and cable management before finalizing the physical installation plan at the operator console.
• The unit ships with 1x16GB. If you're running a full VMS client with simultaneous live view, playback, and analytics simultaneously, budget for a second 16GB SO-DIMM at deployment — 16GB can constrain headroom faster than expected under those combined workloads.

The 30K5001WUS is well-suited for physical security command console deployments — specifically guard stations, dispatch centers, and investigation workstations — where a professional GPU, Intel vPro remote management, and on-site warranty support need to fit in a space-constrained, aesthetically managed environment.
