Lenovo 30HT004XUS ThinkStation P3 Tower Gen 2 Intel Core Ultra 5 235 vPro Ecores Up to 4.40GHZ 24MB

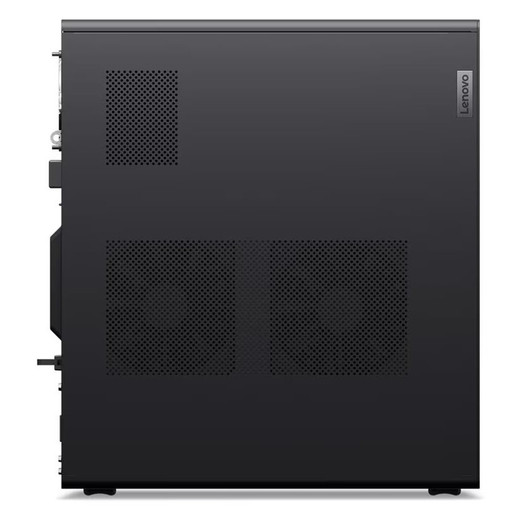

Lenovo 30HT004XUS ThinkStation P3 Tower Gen 2 Workstation

Overview

The Lenovo ThinkStation P3 Tower Gen 2 (30HT004XUS) is a commercial tower workstation built around Intel's Core Ultra 5 235 processor — 14 cores (6P + 8E) with max turbo to 5.0GHz and 24MB Smart Cache. It ships configured with 32GB DDR5-5600 and a 512GB PCIe Gen5 NVMe SSD, giving you the storage I/O throughput needed for high-bitrate video archive work, VMS database operations, or multi-stream forensic review. The Intel W880 chipset and four DDR5 DIMM slots support up to 256GB RAM, so the platform has room to grow as channel counts scale. At 9.00 lb in a 4.10 × 14.60 × 17.90 in tower footprint, it fits standard rack shelves or under-desk deployments common in security control rooms. Windows 11 Pro ships pre-loaded; Intel vPro Enterprise with AMT 16 enables out-of-band remote management — useful when the workstation is in a locked IDF or remote monitoring station. MIL-STD-810H testing provides confidence in environments with vibration or temperature swings. For AI-assisted VMS workloads, the Core Ultra 5 235's integrated NPU offloads inference tasks from the CPU, keeping analytics pipelines responsive during simultaneous live-view and playback sessions. The Intel BE200 Wi-Fi 7 adapter (802.11be, 2×2) with Bluetooth 5.4 and vPro support rounds out connectivity alongside onboard Intel I219-LM GbE. A 750W Platinum-rated fixed power supply gives headroom for discrete GPU expansion — relevant if your VMS requires GPU-accelerated decoding across large camera counts. The discrete TPM 2.0 (FIPS 140-2 certified) satisfies hardened-endpoint requirements in regulated environments. Optical drive, SD card reader, USB and PCIe expansion, and a rear DisplayPort Flex IO complete the configuration. Ships with USB keyboard and mouse.

Compatibility

Designed for deployment as a VMS client or server workstation. Compatible with major video management platforms including Milestone XProtect, Genetec Security Center, Hanwha Wisenet WAVE, Axis Camera Station, and Avigilon Control Center — each of which publishes Windows 11 Pro hardware qualification lists that this configuration meets. PCIe expansion slots accept add-in capture or GPU cards from NVIDIA (Quadro/RTX) and AMD (Radeon Pro) for workloads exceeding integrated graphics capacity. The M.2 2280 PCIe Gen5 slot is populated; secondary storage can be added via SATA or additional M.2 slots depending on chassis bay configuration.

What's in the Box

• 1x ThinkStation P3 Tower Gen 2 (30HT004XUS)
• 1x USB Traditional Keyboard, Black, English
• 1x USB Calliope Mouse, Black
