Lenovo 30GS00GQUS ThinkStation P3 Tower Intel Core I514500 vPro Ecores Up to 3.70GHZ 24MB Windows

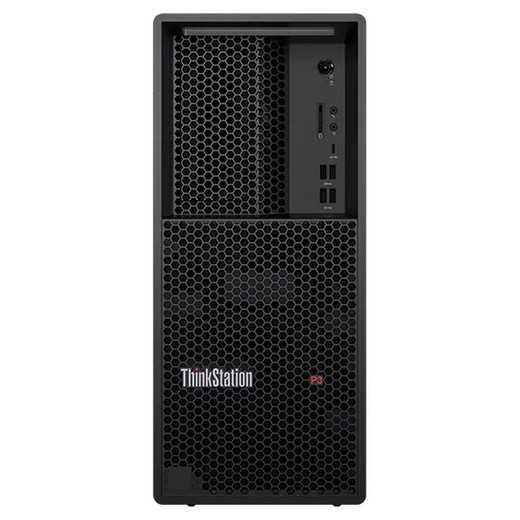

Lenovo 30GS00GQUS ThinkStation P3 Tower Workstation

Overview

The Lenovo ThinkStation P3 Tower (30GS00GQUS) is a commercial-grade desktop workstation built around Intel's 14th-generation Core i5-14500 processor — a 14-core, 20-thread chip that covers the range from disciplined, low-power efficiency work to burst-heavy tasks like video transcoding, VMS client rendering, and multi-stream IP camera decoding. Paired with DDR5-4400 memory and a PCIe Gen4 NVMe SSD, this configuration is aimed squarely at enterprise deployments where you need a reliable, manageable, Intel vPro-enabled machine without paying for a Xeon or workstation GPU you don't need.

At 27.2 lb in a tower chassis measuring 12.30 × 19.60 × 22.50 inches, the P3 sits comfortably under a desk or on a rack shelf, and its four DIMM slots leave real room to grow — factory-configured with one 16GB module, you can expand to 128GB DDR5 without replacing existing RAM.

Key Features

• Intel Core i5-14500 (14 cores / 20 threads, up to 5 GHz boost): Six P-cores handle the heavy compute — transcoding, analytics processing, multi-monitor rendering — while eight E-cores absorb background OS and management tasks without stealing headroom from foreground workloads. The 24MB combined cache reduces memory round-trips on data-intensive applications like VMS servers running simultaneous playback and live decode.
• DDR5-4400 memory, 16GB installed (4 DIMM slots, 128GB max): DDR5 at 4400 MHz delivers roughly 50% greater theoretical bandwidth than DDR4-3200. One 16GB module is installed, leaving three slots open — add a second 16GB stick for dual-channel performance, or scale all the way to 128GB for memory-hungry workloads like large-dataset analytics or running multiple VMs concurrently.
• 512GB PCIe Gen4 NVMe SSD (M.2 2280, TLC Opal): Sequential reads on PCIe Gen4 M.2 drives typically land in the 5,000–7,000 MB/s range — fast enough that boot time and application launch are not bottlenecks even under concurrent workloads. The Opal self-encrypting drive capability satisfies BitLocker-compatible hardware encryption policies without a software performance penalty.
• Intel vPro (i5-14500 vPro + Intel AX211 vPro): vPro enables out-of-band management via AMT — you can remotely power cycle, reimage, or diagnose this machine even when the OS is unresponsive. For IT teams managing distributed workstations across multiple sites (server rooms, guard stations, NOCs), this eliminates most of the justification for expensive on-site service calls.
• Intel AX211 Wi-Fi + Bluetooth 5.1: The AX211 supports Wi-Fi 6E (6 GHz band), which matters in dense wireless environments like open-plan offices or shared security operations centers where 2.4 GHz and 5 GHz bands are congested. BT 5.1 covers peripherals and, in some integrations, BLE-based badge or asset tracking accessories.
• Intel UHD Graphics 770: The integrated GPU supports up to four simultaneous display outputs, which covers most multi-monitor VMS operator setups without adding a discrete card. If you need more outputs or GPU-accelerated decoding at scale, a PCIe add-in card is an option — the tower form factor keeps that path open.
• Windows 11 Pro 64-bit, factory-installed: Pro includes BitLocker, Remote Desktop, Hyper-V, and Group Policy — all of which enterprise IT departments require for managed deployments. Avoids the licensing friction of upgrading from Home after deployment.
• PCIe + USB + Ethernet interfaces: The tower chassis provides PCIe expansion slots for GPU upgrades, capture cards, or additional NIC/storage controllers. Standard Ethernet handles wired network connectivity for managed environments that restrict Wi-Fi, and USB covers peripheral connectivity for security dongles, card readers, and external storage.

Integration and Compatibility

The 30GS00GQUS is compatible with standard enterprise management platforms via Intel vPro AMT — including Microsoft Endpoint Configuration Manager (MECM/SCCM), Ivanti, and similar tools that leverage AMT for OOB management. Windows 11 Pro ships with the OS-level hooks needed for Azure AD join, Microsoft Intune enrollment, and domain join via traditional AD. For security workstation deployments, VMS platforms including Milestone XProtect, Genetec Security Center, and Avigilon Control Center publish Windows 11 compatibility; verify the specific VMS version against the vendor's compatibility matrix before deploying at scale.

Explore the full Lenovo workstation and server catalog for complementary SKUs including higher-core-count P3 Tower configurations, rack-mount ThinkStation options, and ThinkSystem server platforms. If your deployment pairs workstations with network video recorders, confirm NVR-to-workstation network bandwidth requirements early — multi-stream 4K VMS decode is CPU-bound on integrated graphics.

For storage planning, the single M.2 slot carries the OS/application drive; if local video archive or bulk data storage is required, add a 3.5" SATA drive bay or external NAS. Review our PoE switch selection guide if this workstation is part of a broader IP camera infrastructure buildout — switch capacity planning should run in parallel with workstation provisioning.

Frequently Asked Questions

Q: How much RAM can the Lenovo ThinkStation P3 Tower 30GS00GQUS support?

A: The 30GS00GQUS supports up to 128GB of DDR5-4400 memory across its four DIMM slots. It ships with one 16GB module installed, leaving three slots available for expansion.

Q: Does the 30GS00GQUS support out-of-band remote management?

A: Yes. The i5-14500 vPro processor and Intel AX211 vPro wireless adapter enable Intel AMT (Active Management Technology), which allows IT administrators to remotely manage, diagnose, and reimage the system independent of OS state.

Q: What storage interface does the 30GS00GQUS use?

A: It ships with a 512GB M.2 2280 PCIe Gen4 NVMe SSD with TLC NAND and Opal self-encrypting drive support. PCIe Gen4 provides substantially faster sequential throughput than PCIe Gen3 drives, and Opal compatibility enables hardware-level BitLocker encryption.

Q: Is Windows 11 Pro pre-installed on the 30GS00GQUS?

A: Yes. The unit ships with Windows 11 Pro 64-bit factory-installed. Pro includes BitLocker, Remote Desktop Host, Hyper-V, and Group Policy support — the standard requirements for enterprise-managed desktop deployments.

Q: Does the 30GS00GQUS include Wi-Fi, or is it wired-only?

A: Both. It includes a wired Ethernet port and an Intel AX211 Wi-Fi 6E adapter (Bluetooth 5.1 also included). The AX211 supports the 6 GHz band for reduced congestion in dense wireless environments.

Q: What are the dimensions and weight of the ThinkStation P3 Tower?

A: The unit measures 12.30 × 19.60 × 22.50 inches (L × W × H) and weighs 27.20 lb. Plan desk or rack shelf placement accordingly — it is a full tower, not a small-form-factor unit.

Ted Perry

The 30GS00GQUS is a machine I'd put in front of a security operations analyst or a VMS administrator who needs genuine processing headroom — specifically, that 14-core i5-14500 with a 5 GHz boost clock handles the mixed workload of live camera decode plus background analytics processing without the thermal and power overhead of a full Xeon platform.

Technical Highlights:

• 14C/20T i5-14500 at 5 GHz boost: The P-core + E-core split means foreground VMS decode gets dedicated P-core headroom while Windows telemetry, antivirus, and background services land on E-cores — a real difference in sustained decode frame rate under load.
• DDR5-4400, four DIMM slots, 128GB ceiling: Ships single-channel at 16GB, but the three open slots mean you can double to 32GB dual-channel for under $60 of additional RAM — a worthwhile upgrade for any deployment running a local VMS server instance alongside the workstation OS.
• PCIe Gen4 NVMe with Opal SED: Hardware encryption via Opal means BitLocker operates without the CPU penalty of software encryption — relevant when this machine is also doing real-time H.265 multi-stream decode and you can't afford to lose 5–10% CPU to AES overhead in software.

Deployment Considerations:

• At 27.2 lb and 22.5 inches tall, this is a traditional full tower — confirm desk or equipment shelf depth before specifying for tight operator console buildouts.
• Ships with one 16GB DIMM in a four-slot board: dual-channel mode requires a second matched module. If your VMS vendor recommends ≥32GB for multi-server configurations, plan that upgrade at procurement rather than post-deployment.

This configuration is a strong fit for a centralized security operations workstation — one per operator station running a VMS client with 16–32 live camera streams, with the vPro AMT capability letting IT manage and reimage the entire fleet remotely without dispatching a technician to each guard post.
