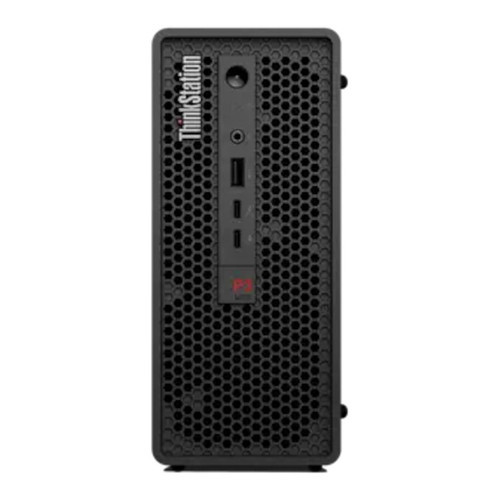

Lenovo 30HA0062US Thinkstation P3 Ultra I514600 16G X1

Lenovo 30HA0062US ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra 30HA0062US is a compact, high-performance workstation built around Intel's 14th-generation Core i5-14600 processor — a 14-core, 20-thread chip that handles the simultaneous decode, analytics processing, and VMS workloads that security operations centers and video surveillance deployments demand. At 9 lbs, the P3 Ultra's small-form-factor chassis fits into tight rack shelves, operator consoles, and back-of-rack installs where a full tower would be impractical.

For security workstations and command-center builds, the P3 Ultra hits a practical sweet spot: enough processor headcount to run multi-stream VMS decoding without the power and footprint cost of a high-core-count Xeon system. This is the machine to spec when you need reliable, continuous-duty compute in a compact enclosure.

Key Features

• Intel Core i5-14600 — 14 Cores / 20 Threads: The hybrid architecture pairs 6 Performance cores (P-cores) at 2.7 GHz base with 8 Efficient cores (E-cores) at 2.0 GHz base. The OS scheduler routes latency-sensitive VMS decode threads to P-cores and background tasks — logging, indexing, alerting — to E-cores. The result is responsive live-view performance even when the system is simultaneously writing recordings and running analytics.
• 5.2 GHz Max Turbo (P-cores) / 3.9 GHz Max Turbo (E-cores): When a burst workload hits — exporting footage, running a motion-search query, or spinning up analytics on a new camera feed — the P-cores can sustain up to 5.2 GHz. That headroom means the operator doesn't wait at the console while the system catches up.
• 24 MB Intel Smart Cache: A larger on-die cache reduces main-memory latency for workloads that repeatedly access the same data — relevant when a VMS is decoding multiple simultaneous H.265 streams and re-referencing the same codec tables repeatedly. Less cache pressure means more consistent frame decode times.
• 65W Processor Base Power / 154W Maximum Turbo Power: The 65W base TDP keeps idle and sustained loads thermally manageable in compact enclosures with limited airflow. The 154W turbo ceiling is for short-burst workloads only — steady-state VMS duty sits well under that figure, which is good for 24/7 uptime in environments without active cooling infrastructure.
• 16GB System Memory: The product configuration includes 16GB RAM — adequate for running a mid-scale VMS client, operator tools, and OS overhead simultaneously. If you're deploying with a GPU-accelerated analytics engine or running the VMS server role on this machine, budget for a RAM upgrade at build time.
• Compact Form Factor at 9.00 lbs: The P3 Ultra's weight reflects its small-form-factor chassis design. It mounts cleanly into operator consoles, fits on a VESA arm behind a monitor, or slides into a 1U-equivalent rack shelf — useful in control rooms where space allocation is fixed and a mini-tower is out of the question.
• Windows-Based Platform: Ships with Windows, which means immediate compatibility with every major commercial VMS platform — Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and others — without OS configuration overhead. Drivers, codec packs, and client software install straightforwardly.

Integration and Compatibility

The ThinkStation P3 Ultra is purpose-built for the network video recorder and VMS ecosystem. Running a Windows-based VMS client or server role on a Lenovo ThinkStation platform gives you a commercially supported, serviceable hardware base with documented upgrade paths for memory and storage. The i5-14600's 20 threads handle the parallel decode demands of 16–32 camera streams at 1080p or 4K depending on codec and analytics load — a practical range for mid-market security installations.

For integrators building out security operations workstations or operator console deployments, the P3 Ultra pairs well with a dedicated GPU for accelerated H.265/H.264 decode offload, particularly in high-channel-count environments. The base 16GB RAM configuration works for client-mode VMS; server-mode deployments should target 32GB or above. Pair this machine with a managed PoE network switch for camera-side infrastructure and a dedicated NVR or storage array for retention — don't rely on the workstation's local storage for primary recording in enterprise deployments.

Frequently Asked Questions

Q: What processor does the 30HA0062US use, and how many cores does it have?

A: The 30HA0062US is configured with the Intel Core i5-14600, a 14th-generation hybrid processor with 14 cores (6 Performance-cores and 8 Efficient-cores) and 20 threads. The Performance cores boost up to 5.2 GHz; Efficient cores boost to 3.9 GHz.

Q: How much RAM does the 30HA0062US ship with?

A: The 30HA0062US ships with 16GB of system memory in its base configuration.

Q: Is the 30HA0062US suitable for running a full VMS server role?

A: The i5-14600's 14 cores and 20 threads can handle mid-scale VMS server workloads. For a server role managing 20+ cameras with analytics, consider upgrading to 32GB RAM at build time, and pair the machine with a dedicated storage array rather than relying on local disk for primary retention.

Q: What is the power draw of the 30HA0062US under load?

A: The i5-14600 has a base processor power of 65W, with a maximum turbo power of 154W during burst workloads. Steady-state VMS operation will draw significantly less than the turbo ceiling — the 65W base figure is more representative of continuous 24/7 operation.

Q: Does the 30HA0062US ship with Windows?

A: Yes — the product name designator indicates a Windows operating system is included, providing out-of-box compatibility with commercial VMS platforms without requiring additional OS licensing or configuration.

Q: What does the P3 Ultra form factor look like, and how does it mount?

A: The ThinkStation P3 Ultra is a compact small-form-factor workstation weighing 9.00 lbs. It is designed to fit operator consoles, desktop mounts, VESA arm configurations, and compact rack shelf installs where a full tower or mid-tower chassis would not fit.

Marty Allison

I spec the 30HA0062US for VMS operator console builds where space is constrained and the client needs a commercially supported, serviceable workstation rather than a consumer-grade PC. The i5-14600's hybrid 14-core architecture — 6 P-cores at up to 5.2 GHz paired with 8 E-cores at up to 3.9 GHz — handles the mixed workload profile of a live security console better than older quad-core systems that stall under simultaneous decode, recording, and alerting tasks.

Technical Highlights:

• 14-Core Hybrid Architecture: 6 Performance-cores handle latency-sensitive decode and UI rendering; 8 Efficient-cores absorb background OS and VMS logging tasks without competing for clock cycles — critical for smooth live-view in multi-monitor console setups.
• 24 MB Smart Cache: Reduces round-trips to main memory during repetitive H.265 decode operations. In a 16-camera live-view scenario, this cache depth keeps per-frame latency consistent rather than spiking when the codec tables cycle.
• 65W Base TDP: Keeps thermal load predictable in compact enclosures running 24/7 — the base power envelope is manageable for small-form-factor chassis without high-CFM cooling. The 154W turbo ceiling only engages on burst tasks, not continuous VMS decode.

Deployment Considerations:

• The 16GB base RAM is sufficient for VMS client-mode operation, but if you're running VMS server software, a GPU-accelerated analytics plugin, or multiple operator applications simultaneously, spec the memory upgrade at purchase — RAM expansion after deployment in a locked console install is disruptive.
• The P3 Ultra's compact chassis limits internal expansion compared to a full ThinkStation tower — confirm your GPU and storage requirements before ordering, as post-deployment upgrades in tight rack or console installs are constrained by physical access.

Best fit: mid-market physical security operations centers deploying 16–32 camera VMS client or hybrid server/client roles, where the operator console must be compact, commercially warrantied, and Windows-native without custom OS configuration overhead.
