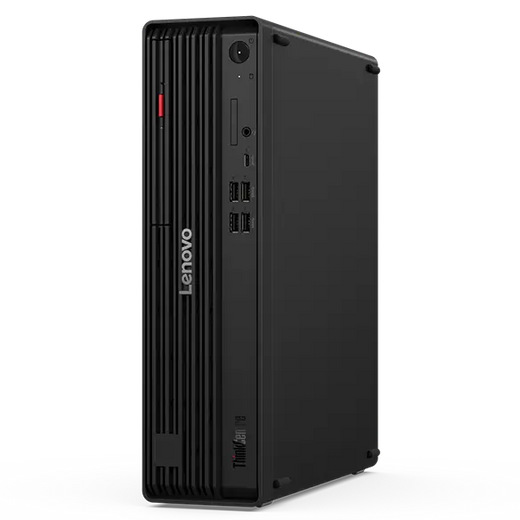

Lenovo 30HA006MUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA006MUS) is a compact professional workstation built around Intel's 14th-generation Core i5-14600 processor — a 14-core, 20-thread CPU that handles multi-stream video analysis, VMS server duties, and parallel workloads that would stall a standard business desktop. At 9 lb, it fits on a shelf, behind a monitor, or inside a rack enclosure without the footprint of a tower, making it a practical fit for security operations centers, network operations rooms, and integrator-built surveillance servers where space is a constraint and compute headroom is not optional.

The Lenovo ThinkStation line occupies a specific niche: commercial-grade compute in a form factor that scales with your deployment rather than against it. The P3 Ultra sits at the workstation tier — above consumer mini-PCs in reliability design and component selection — and is sourced factory-new through commercial distribution channels.

Key Features

• Intel Core i5-14600 (14 Cores / 20 Threads): Six performance cores clock up to 5.2 GHz boost, with eight efficiency cores handling background tasks at up to 3.9 GHz. In a multi-channel NVR or VMS application, this hybrid architecture lets the system dedicate P-cores to active decoding and analytics while E-cores manage OS scheduling, logging, and network I/O — without throttling either workload.
• 5.2 GHz Peak Turbo Frequency: The performance cores hit 5.2 GHz under single-thread burst — relevant for latency-sensitive tasks like real-time motion detection callbacks, database queries, or operator-facing playback where responsiveness matters more than sustained throughput.
• 65W Base / 154W Max Turbo Power Envelope: At a 65W base TDP, the i5-14600 runs efficiently under steady workloads like 24/7 continuous recording. The 154W turbo ceiling gives it burst capacity for encoding spikes without requiring oversized cooling infrastructure — important in low-airflow enclosures common in physical security deployments.
• 24 MB Intel Smart Cache: The large shared cache reduces main-memory round-trips during video frame processing. For installations running codec-heavy streams (H.265 decode across 16+ channels), cache capacity is a real throughput factor, not a paper spec.
• 32 GB RAM: 32 GB provides comfortable headroom for a Windows-based VMS host running Milestone XProtect, Genetec Security Center, or equivalent — typically requiring 8–16 GB for the VMS service alone, leaving margin for OS, database, and concurrent operator sessions.
• Compact Ultra-Small Form Factor: The ultrasmall chassis design fits the P3 Ultra in locations where a tower cannot go — wall-mount brackets, under-desk rails, or AV/security rack shelves. For distributed surveillance deployments where compute needs to live close to the camera cluster rather than in a central server room, this form factor removes a common physical constraint.
• Commercial-Grade Platform: ThinkStation products target ISV-certified workloads and enterprise procurement cycles, which matters when you need a platform that a VMS vendor will formally support rather than a consumer machine they've never validated against.

Integration & Compatibility

The i5-14600's 20-thread count positions the 30HA006MUS as a capable host for mid-scale VMS deployments — typically 16 to 32 camera channels at full H.265 resolution, depending on analytics load and stream count. Integrators deploying PoE switch infrastructure feeding into a central recording node will find the P3 Ultra's compute headroom sufficient for most commercial-scale camera counts without requiring a rackmount server chassis.

Confirm OS, storage configuration, and GPU (if required for GPU-accelerated analytics) with your VMS vendor's hardware compatibility list before specifying. The 30HA006MUS includes 32GB of RAM in a single-kit configuration; verify expandability requirements against your channel-count and retention projections before ordering.

Frequently Asked Questions

Q: What processor does the 30HA006MUS use, and how many cores does it have?

A: The 30HA006MUS is equipped with an Intel Core i5-14600 (14th generation), featuring 14 cores (6 performance + 8 efficiency) and 20 threads, with a peak boost frequency of 5.2 GHz on the performance cores.

Q: How much RAM does the 30HA006MUS include?

A: The 30HA006MUS ships with 32 GB of RAM as configured. Verify slot availability and supported memory ceiling with Lenovo's configuration documentation if you need to expand for larger VMS deployments.

Q: Is the 30HA006MUS suitable for running a VMS like Milestone XProtect or Genetec Security Center?

A: The i5-14600's 14-core, 20-thread architecture and 32 GB RAM make it a credible host for mid-scale VMS deployments. Confirm your specific channel count, analytics load, and GPU requirements against your VMS vendor's hardware compatibility list before specifying.

Q: What is the weight of the 30HA006MUS?

A: The 30HA006MUS weighs 9.00 lb, consistent with its compact ultrasmall form factor chassis.

Q: What is the thermal design power (TDP) of the processor in the 30HA006MUS?

A: The Intel Core i5-14600 in the 30HA006MUS has a base processor power of 65W and a maximum turbo power of 154W, allowing sustained efficiency under continuous workloads with burst capacity available for peak encoding or analytics tasks.

Q: Does the 30HA006MUS fit in a standard rack or small enclosure?

A: The P3 Ultra's ultrasmall form factor is designed for space-constrained installations. It is not a standard 1U/2U rack unit but can be mounted using compatible rack shelf or bracket accessories. Verify mounting hardware compatibility for your specific rack or enclosure before installation.

James Everett

The 30HA006MUS is one of the more practical compute choices I've seen for mid-tier VMS deployments where you need real processing muscle without committing to a rackmount server. The i5-14600's hybrid core architecture — six performance cores at 5.2 GHz turbo plus eight efficiency cores — is genuinely well-suited to the mixed workload pattern of a 24/7 recording host: sustained throughput for H.265 decode on the E-cores, fast response on analytics callbacks and operator sessions on the P-cores.

Technical Highlights:

• 14-Core / 20-Thread i5-14600: The thread count supports parallel decode of 16–32 H.265 streams simultaneously without CPU saturation under typical VMS scheduling — a meaningful headroom buffer for deployments that grow after initial commissioning.
• 65W Base TDP: Efficient thermal envelope under continuous load means this unit can operate in low-airflow enclosures or wall-mount brackets without requiring supplemental cooling — a common constraint in physical security closet installs.
• 24 MB Smart Cache: Reduces memory bus pressure during codec-heavy workloads; relevant when running multiple high-resolution streams through software decode pipelines that make repeated access to frame buffer data.

Deployment Considerations:

• Confirm GPU requirements before specifying: some VMS platforms (including Milestone and Genetec at higher channel counts) recommend or require a discrete GPU for hardware-accelerated decode. The evidence does not confirm GPU configuration for this SKU — verify with your VMS vendor's hardware compatibility guide.
• Storage configuration is not confirmed in available evidence beyond the 32GB RAM. For a recording server role, external NAS or direct-attached storage will be required for any meaningful retention — plan that infrastructure before deployment, not after.

The 30HA006MUS is the right call for a distributed surveillance architecture where compute needs to live in a network closet or equipment room rather than a central server farm — its compact footprint and efficient base TDP make it installable in locations a tower or 2U server simply cannot occupy.
