Lenovo 30HA0061US Thinkstation P3 Ultra I714700 16G X1

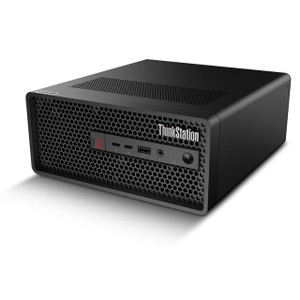

Lenovo 30HA0061US ThinkStation P3 Ultra Desktop Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA0061US) is a compact commercial-grade workstation built around the 20-core Intel Core i7-14700 processor — a serious compute platform for security operations centers, video management system (VMS) servers, and surveillance analytics workloads that outgrow standard business PCs. At 9 lb, the P3 Ultra delivers workstation-class CPU headroom in a chassis sized for a standard desktop footprint, making it a practical fit for control rooms where rack space is at a premium but processing demands are not.

This configuration ships with 16GB of RAM and runs Windows, providing a ready-to-deploy base for video management software platforms and security operations applications. The i7-14700's hybrid core architecture — 8 Performance cores and 12 Efficient cores — handles concurrent workloads efficiently: high-priority VMS decoding threads land on P-cores while background indexing, alerting, and analytics tasks run on E-cores without starving the foreground application.

Key Features

• 20-Core / 28-Thread Intel Core i7-14700: The hybrid P+E core design means the 30HA0061US can decode and display streams from dozens of cameras simultaneously while running analytics or archiving in the background — no single workload monopolizes the CPU the way it would on a uniform-core architecture. For VMS operators running Milestone, Genetec, or Avigilon, this translates to smoother live-view performance under concurrent playback and export tasks.
• 5.4 GHz Max Boost / 5.3 GHz P-Core Turbo: Single-threaded performance peaks at 5.3 GHz on Performance cores — relevant for any VMS process that relies on a fast single thread (legacy plugins, certain codec decoders, database queries). The 4.2 GHz E-core turbo keeps background tasks running fast enough that they don't create visible lag in the primary interface.
• 33 MB Intel Smart Cache: The large L3 cache reduces main-memory round trips on data-intensive workloads like real-time video buffering and forensic search. In practical terms, the processor can hold more active stream data in cache, which reduces latency spikes during simultaneous multi-channel playback.
• 65W Base / 219W Max Turbo Power Envelope: Under light loads — monitoring live feeds, running scheduled exports — the i7-14700 operates near its 65W base power, keeping thermals and acoustics low. When you throw a demanding task at it (bulk export, motion-search across archive, analytics model inference), it can surge to 219W for as long as the thermal envelope allows. This dynamic range is what separates a workstation-class CPU from a capped-TDP office processor.
• 16GB System RAM: The 16GB baseline is workable for single-seat VMS deployments handling moderate channel counts. For deployments running 32+ camera channels with simultaneous analytics, plan to expand — ThinkStation P3 Ultra supports additional RAM, and VMS platforms like Milestone XProtect and Genetec Security Center both scale their memory footprint with channel count and analytics load.
• Compact 9 lb Chassis: The P3 Ultra form factor sits between a tower workstation and a mini-PC — dense enough to house full workstation components, light enough at 9 lb to reposition or mount behind a display in a control room console. For integrators building out operator stations, this reduces the physical footprint without sacrificing CPU performance.
• Windows OS Included: Ships with Windows, eliminating the OS-sourcing step for integrators provisioning operator workstations. VMS client software, codec packs, and GPU drivers install directly — no OS prep required before deployment.

Integration & Compatibility

The ThinkStation P3 Ultra platform is validated for use with major network video recorder and VMS software ecosystems. The i7-14700's PCIe lanes support discrete GPU additions for hardware-accelerated decoding — relevant for high-channel-count deployments where software decoding alone would saturate the CPU. Integrators deploying IP cameras at scale should verify GPU compatibility with their chosen VMS platform before specifying a GPU SKU, as driver support varies by VMS version.

For access control and security operations center buildouts, the P3 Ultra's processing headroom supports running a VMS client, access control management software, and alarm management concurrently on a single operator workstation — reducing the number of dedicated machines needed per station.

Networking integration follows standard enterprise patterns: the P3 Ultra connects to your existing LAN infrastructure, and VMS software handles camera discovery via ONVIF or native drivers. No specialized network configuration is required at the workstation level beyond standard VLAN and QoS policies for video traffic.

For guidance on sizing workstations to VMS channel counts and analytics loads, refer to the VMS workstation sizing guide — the i7-14700's core count and turbo headroom position the 30HA0061US well for mid-to-large deployments.

Frequently Asked Questions

Q: How many camera channels can the 30HA0061US handle as a VMS workstation?

A: Channel capacity depends on your VMS software, resolution, codec, and whether analytics are enabled. The 20-core i7-14700 with 16GB RAM is a capable foundation for mid-to-large deployments, but consult your VMS vendor's hardware sizing guide for specific channel-count recommendations at your target resolution and frame rate.

Q: Can the 30HA0061US be expanded beyond 16GB of RAM?

A: The ThinkStation P3 Ultra platform supports RAM expansion. Consult Lenovo's official configuration documentation for supported memory types, speeds, and maximum capacity for this chassis generation.

Q: Does the 30HA0061US support discrete GPU installation for hardware-accelerated video decoding?

A: The ThinkStation P3 Ultra form factor supports GPU addition via PCIe, subject to chassis power and slot constraints. Verify GPU TDP against the system's power supply rating and confirm driver support with your VMS vendor before specifying a GPU.

Q: What is the weight of the 30HA0061US?

A: The unit weighs 9.00 lb — compact for a workstation-class machine, suitable for console mounting or desk placement in control room environments.

Q: Is the 30HA0061US compatible with Milestone XProtect, Genetec Security Center, or Avigilon Control Center?

A: The i7-14700 processor and Windows OS are compatible with the hardware requirements published by Milestone, Genetec, and Avigilon for their VMS platforms. Always verify your specific VMS version's minimum and recommended specs against the workstation's final configuration (RAM, GPU, storage) before deployment.

Q: What is the processor's maximum turbo frequency on the 30HA0061US?

A: The Intel Core i7-14700 reaches up to 5.4 GHz max boost overall, with Performance cores turboeing to 5.3 GHz and Efficient cores reaching 4.2 GHz under turbo conditions.

James Everett

The 30HA0061US gets my attention specifically because of the i7-14700's 219W max turbo power ceiling — that's the spec that tells you this isn't a dressed-up office PC. When a VMS platform kicks off a bulk forensic search across 30 days of archive footage while simultaneously decoding a 64-channel live view, a processor that throttles at 65W will stall. The P3 Ultra's thermal design lets the i7-14700 sustain significantly higher power draw for burst workloads, which is exactly the profile of an active security operations workstation.

Technical Highlights:

• Hybrid 20-Core Architecture (8P + 12E): Real-world benefit is workload isolation — VMS live decode on P-cores, background archiving and alerting on E-cores. This is a meaningful architectural advantage over uniform-core desktop CPUs at the same price point.
• 5.3 GHz P-Core Turbo: Matters for single-threaded VMS processes — legacy alarm plugins, certain database query engines, and older codec decoders all run on one thread. 5.3 GHz keeps those processes responsive even under system load.
• 33 MB Smart Cache: Large enough to buffer active stream data for dozens of simultaneous channels, reducing the latency spikes that show up as dropped frames or UI stalls in high-channel VMS clients.

Deployment Considerations:

• 16GB RAM is the baseline — plan for expansion if your VMS configuration runs analytics on more than 20–30 channels concurrently. Milestone XProtect Corporate and Genetec SC both document higher RAM floors for analytics-heavy deployments.
• The P3 Ultra's compact form factor limits GPU expansion compared to a full tower. If your VMS workload requires a high-TDP decode GPU (e.g., NVIDIA RTX series for 4K H.265 hardware decode at scale), verify the chassis power supply rating supports the combined CPU + GPU draw before ordering.

The 30HA0061US is a well-matched choice for a primary VMS operator workstation in a mid-size security operations center — 20 to 80 camera channels, mixed analytics, Windows-native VMS client — where you need workstation CPU performance in a control-room-friendly footprint without going to a full tower or rackmount server.
