Lenovo 30GA00AFUS Thinkstation P5 W52445 16G X2 W11PWS

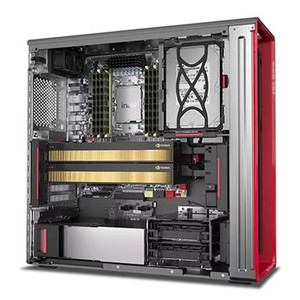

Lenovo 30GA00AFUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA00AFUS) is a tower workstation built around Intel's Xeon W5-2445 processor — a 10-core, 20-thread chip that boosts to 4.6 GHz — paired with 32 GB of DDR5-4800 RAM across two 16 GB DIMMs and a 512 GB SSD. This is the configuration you reach for when a deployment requires sustained compute headroom: multi-stream video management software, AI-inferencing at the edge, or running a full NVR stack alongside analytics workloads that would starve a standard business desktop. It ships with Windows 11 Pro for Workstations, which means group policy management, ReFS file system support, and remote desktop licensing are all ready on day one.

Key Features

• Intel Xeon W5-2445, 10 Cores / 20 Threads: The Xeon W-2400 series is validated for ECC memory and carries workstation-class platform features absent from Core i9 — critical when you're running a VMS database or analytics engine where a single bit-flip can corrupt a recording index. The 4.6 GHz boost frequency handles single-threaded licensing checks and UI rendering without throttling the background decode pipeline.
• 32 GB DDR5-4800 (2 × 16 GB, 8 DIMM Slots): DDR5 at 4800 MHz delivers roughly double the per-channel bandwidth of DDR4-3200. With only two of eight slots populated, you have room to scale to 512 GB without touching the existing DIMMs — useful when camera counts grow or when adding GPU-based analytics cards that DMA large frame buffers.
• Expandable to 512 GB RAM: Enterprise VMS platforms like Milestone XProtect Corporate and Genetec Security Center scale memory consumption proportionally with camera count and retention window. Knowing the platform can reach 512 GB means you're not re-specifying hardware in 18 months when the customer adds 60 more channels.
• 512 GB NVMe SSD (OS/App Drive): A solid-state OS drive keeps the VMS service startup time under 30 seconds and eliminates the seek-latency penalties that plague HDD-only workstations during simultaneous read (live playback) and write (active recording) operations. Storage for video footage itself should be provisioned on additional drives — this SSD is correctly sized for the OS, application binaries, and analytics model caches.
• Windows 11 Pro for Workstations: Ships with the workstation-grade Windows SKU, not Home or standard Pro. This matters in enterprise AD environments: Persistent Memory support, NVMe RAID, and higher RAM ceilings are unlocked at the OS layer without additional licensing.
• 9 lb Tower Form Factor: At 9 lb, the P5 tower is relocatable without a lift ticket. Rack-mount workstations draw more noise and cooling complaints in control rooms; a tower placed under a desk keeps acoustics manageable for operators working near the machine.

Integration and Compatibility

The 30GA00AFUS is a standard x86 tower workstation running Windows 11 Pro for Workstations, so it integrates with any VMS, access control server, or analytics platform that publishes Windows system requirements. The Xeon W5-2445 supports Intel vPro Enterprise, which enables AMT-based out-of-band management — useful for remote IT teams that need to push BIOS updates or recover a locked-down VMS server without physical access. The 8-slot DDR5 DIMM architecture is compatible with standard RDIMM modules; verify ECC RDIMM support against Lenovo's memory compatibility list before purchasing third-party expansion DIMMs. No optical drive is included, so plan for USB or network-based OS recovery and software deployment. The workstation ships from Mexico (country of origin MX) and carries UNSPSC code 43211515, confirming commercial computing hardware classification for procurement systems. For demanding multi-camera deployments, consider pairing this workstation with a PoE switch and a dedicated IP camera infrastructure to keep network traffic segmented from the management LAN.

Frequently Asked Questions

Q: What processor does the Lenovo 30GA00AFUS include?

A: The 30GA00AFUS ships with an Intel Xeon W5-2445 — a 10-core, 20-thread processor with a 3.1 GHz base clock and 4.6 GHz boost frequency, from Intel's Xeon W-2400 workstation platform.

Q: How much RAM does the 30GA00AFUS have, and can it be expanded?

A: It ships with 32 GB of DDR5-4800 SDRAM (two 16 GB DIMMs). The board has 8 DIMM slots, and the platform supports up to 512 GB maximum, so there is significant headroom for expansion without replacing existing modules.

Q: What storage does the 30GA00AFUS come with?

A: The system includes a single 512 GB SSD. No optical drive is included. For video surveillance deployments, additional storage drives would need to be added for footage retention.

Q: What operating system does the 30GA00AFUS ship with?

A: It ships with Windows 11 Pro for Workstations — the workstation-grade Windows SKU that includes features like NVMe RAID, higher RAM ceiling support, and Persistent Memory, relevant to demanding enterprise workloads.

Q: Is the 30GA00AFUS suitable for running video management software?

A: Yes. The 10-core Xeon W5-2445, 32 GB DDR5 RAM (expandable to 512 GB), and SSD-based storage make it a capable platform for VMS server roles. The Xeon platform supports ECC memory, which is recommended for database-dependent VMS applications where memory integrity matters.

Q: Does the 30GA00AFUS include an optical drive?

A: No. The optical drive type is listed as none. Software deployment and OS recovery should be planned via USB media or network-based methods.

Jerry Tildsen

When I evaluate the 30GA00AFUS for a VMS server role, the detail that stands out first is the memory architecture: 32 GB DDR5-4800 across only 2 of 8 DIMM slots. That's not a budget-constrained build — that's a platform deliberately staged for growth, and the 512 GB ceiling means this workstation won't be a bottleneck when a 64-camera deployment scales to 128.

Technical Highlights:

• Xeon W5-2445, 10C/20T at 4.6 GHz boost: The W-2400 platform carries ECC memory support, which matters the moment you're running a SQL-backed VMS recording database. A non-ECC workstation is technically cheaper; it's also the one that silently corrupts a recording index under load.
• DDR5-4800 at 4800 MHz: Bandwidth-heavy workloads — simultaneous decode of 30+ H.265 streams, analytics inference, live export — benefit from DDR5's doubled per-channel throughput over DDR4. This is a real architectural difference, not a spec-sheet marketing item.
• 512 GB SSD (no optical drive): The SSD handles OS + application layer reliably. Plan your video retention storage separately — this drive is not sized for footage. USB or network-based imaging is required for OS recovery; build that into your deployment SOW.

Deployment Considerations:

• The 8-slot DIMM configuration gives you a clean upgrade path: add matched ECC RDIMMs in pairs to maintain dual-channel throughput. Verify Lenovo's compatibility list before sourcing third-party DIMMs — the W-2400 platform is picky about validated modules at higher densities.
• At 9 lb, this is a relocatable tower, but it is not rack-optimized. If the installation requires rack mounting, plan for a third-party rack shelf or evaluate whether a 1U/2U rackmount workstation is the better fit for the physical environment.

The 30GA00AFUS is well-positioned as a dedicated VMS server or analytics host in a mid-to-large enterprise security deployment — specifically where the customer expects to grow camera count over a 3–5 year lifecycle and needs the hardware to absorb that expansion without a forklift upgrade.
