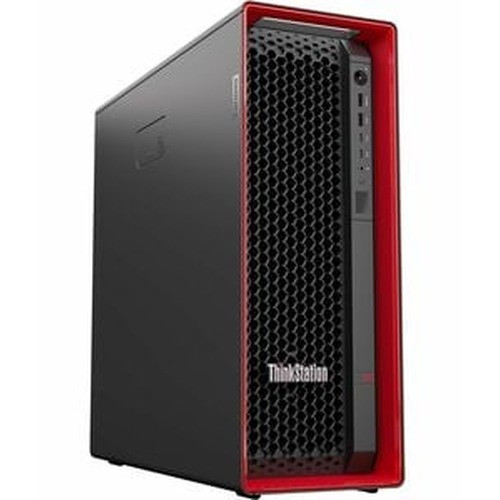

Lenovo 30GA007TUS Thinkstation P5 W52445 16G X4 W11PWS

Lenovo 30GA007TUS ThinkStation P5 Tower Workstation

The Lenovo ThinkStation P5 (30GA007TUS) is a professional tower workstation built around Intel's Xeon w5-2445 processor — a 10-core, 20-thread chip running at 3.1 GHz base with a 4.6 GHz max turbo. Configured with 64 GB of DDR5-SDRAM across four 16 GB DIMMs and running Windows 11 Pro for Workstations, this system is sized for demanding compute environments: VMS servers, engineering workstations, video analytics hosts, and real-time surveillance processing platforms where consumer-grade hardware simply won't hold up under sustained load.

Overview

The ThinkStation P5 sits in Lenovo's professional workstation lineup — purpose-built for workloads that require ECC-capable memory, ISV-certified platform stability, and headroom to scale. The 30GA007TUS ships in a tower form factor weighing 9.00 lb, assembled in Mexico. With PCIe 4.0 and 5.0 slot support, it accommodates current-generation GPU accelerators, capture cards, and high-throughput NVMe storage — the kind of expandability that matters when you're commissioning a system that needs to last five or more years in a machine room or ops center.

Key Features

• Intel Xeon w5-2445 Processor (10C/20T, 3.1–4.6 GHz): Ten performance cores with 20 threads handle simultaneous tasks — decoding live streams, running analytics, and serving a VMS simultaneously — without the single-threaded bottlenecks that plague lower-core-count workstations. The 4.6 GHz max turbo means bursty workloads (motion search, export, forensic review) get full clock speed when the thermal envelope allows.
• 26.25 MB Smart Cache: Intel's Smart Cache is shared across all cores and dynamically allocated based on workload demand. In a VMS or analytics context, this means the processor can hold larger working sets in-cache — reducing main-memory round-trips when running multi-stream decoding or deep-learning inference tasks.
• 64 GB DDR5-SDRAM (4 × 16 GB DIMMs, expandable to 512 GB): DDR5 delivers higher bandwidth at lower power than DDR4 — relevant when feeding a 10-core processor processing multiple high-resolution streams. The 512 GB maximum is a genuine enterprise headroom figure: you can grow this system from a 16-camera VMS host to a 128-channel analytics server without a platform swap, just a memory upgrade.
• PCIe 5.0 and PCIe 4.0 Slot Support: PCIe 5.0 doubles the bandwidth of PCIe 4.0 (128 GB/s vs. 64 GB/s at x16). If you're installing a current-generation GPU for AI-accelerated video analytics or a high-throughput NVMe RAID card, PCIe 5.0 eliminates the bus as a bottleneck. PCIe 4.0 slots accommodate the wider ecosystem of existing add-in cards without requiring new hardware.
• 175W Base TDP / 210W Max Turbo Power (LGA 4677 Socket E): The Xeon w5-2445 runs at up to 210W under sustained all-core turbo. Plan your UPS and rack power budget accordingly — this is a workstation-class draw, not a thin client. On the upside, that power envelope translates directly to sustained throughput on long-running VMS recording and analytics jobs.
• Windows 11 Pro for Workstations: The WS edition includes ReFS file system support, persistent memory support, and higher core/RAM limits than standard Windows 11 Pro. For a VMS or analytics platform, it also means native support for workstation-grade drivers and ISV certification paths used by Genetec, Milestone, and similar platforms.
• Tower Form Factor, 9.00 lb: The tower chassis provides maximum internal expansion room versus rack-mount alternatives at this price point. The 9.00 lb weight reflects a full-size tower; rack integration requires a separate tower-to-rack conversion kit if you're deploying in a 19-inch rack environment.

Integration & Compatibility

The 30GA007TUS is built on the LGA 4677 (Socket E) platform — Intel's Xeon W scalable workstation socket. This platform supports ECC DDR5, which is relevant for any deployment where data integrity under long uptime is a requirement (VMS servers, financial workstations, simulation environments). PCIe 5.0 compatibility means the system is forward-compatible with next-generation GPU accelerators and NVMe storage devices as they reach the market.

For video management systems and analytics platforms, verify ISV certification status directly with your VMS vendor for the Xeon w5-2445 platform — most major platforms including Milestone XProtect and Genetec Security Center publish certified hardware lists that include ThinkStation-class systems. GPU selection for AI analytics (NVIDIA RTX or A-series) should be validated against available PCIe slot count and system power budget before ordering.

Pair this workstation with a network video recorder appliance if your deployment separates recording from analytics, or deploy it as a combined VMS host for mid-to-large camera counts where a dedicated server-class platform is warranted. For deployments requiring additional network switching capacity to support high camera-count installations, plan your PoE switch infrastructure alongside the VMS platform selection. For Lenovo workstations and servers, this P5 sits above the ThinkStation P3 in compute capacity and below the dual-socket P7 in scalability.

Frequently Asked Questions

Q: What processor does the ThinkStation P5 30GA007TUS ship with?

A: The 30GA007TUS ships with the Intel Xeon w5-2445 — a 10-core, 20-thread processor with a 3.1 GHz base frequency and 4.6 GHz max turbo, 26.25 MB Smart Cache, and a 175W base TDP (210W max turbo power).

Q: How much RAM does the 30GA007TUS come with, and what is the maximum?

A: It ships with 64 GB of DDR5-SDRAM configured as four 16 GB DIMMs. The platform supports up to 512 GB maximum, leaving room for significant memory expansion as workload demands grow.

Q: Does the 30GA007TUS support PCIe 5.0?

A: Yes. The ThinkStation P5 30GA007TUS includes both PCIe 5.0 and PCIe 4.0 slots, accommodating current-generation GPU accelerators, high-speed NVMe storage, and other add-in cards. PCIe 5.0 provides up to 128 GB/s bandwidth at x16 — relevant for AI/ML inference cards and next-generation storage.

Q: What operating system is installed on the 30GA007TUS?

A: The system ships with Windows 11 Pro for Workstations (W11PWS), which includes ReFS file system support and higher hardware resource limits than standard Windows 11 Pro — relevant for sustained VMS recording and analytics workloads.

Q: Is the 30GA007TUS a tower or rack-mount system?

A: It is a tower workstation. Rack installation requires a separate tower-to-rack conversion kit. The system weighs 9.00 lb.

Q: What is the processor socket on the ThinkStation P5 30GA007TUS?

A: The Xeon w5-2445 installs on the LGA 4677 (Socket E) platform, which supports ECC DDR5 memory and the Xeon W scalable workstation processor family.

Marty Allison

When I look at the 30GA007TUS, the spec that stands out for VMS deployments is the DDR5 memory configuration — 64 GB across four slots on the LGA 4677 platform means you're not memory-bandwidth-constrained when running multi-stream decode alongside analytics inference. That matters more than raw core count for most surveillance workloads.

Technical Highlights:

• Xeon w5-2445 10C/20T at 3.1–4.6 GHz: Ten cores with 20 threads give you genuine parallelism for simultaneous stream decode, analytics, and VMS database operations — without the thermal throttling you'd see on consumer i7/i9 chips under sustained 24/7 load.
• 512 GB DDR5 Maximum Capacity: The 64 GB shipped configuration handles most mid-size VMS deployments comfortably, but the 512 GB ceiling means this platform can grow with the deployment — useful when AI analytics workloads expand and in-memory processing demands scale up.
• PCIe 5.0 Slot Support: At 128 GB/s bidirectional bandwidth on a PCIe 5.0 x16 slot, GPU-accelerated analytics cards (NVIDIA RTX Ada or A-series) won't be bus-limited. That headroom is relevant now for high-channel AI deployments and becomes more so as inference models grow.

Deployment Considerations:

• The Xeon w5-2445 has a 210W max turbo power draw — size your UPS with at least 800VA per workstation at full load, accounting for GPU and storage add-in cards on top of the processor TDP.
• This is a tower system; if your ops center runs 19-inch rack infrastructure, budget for a tower-to-rack conversion kit separately — that's not included in the 30GA007TUS configuration.

This system is the right fit for a mid-to-large physical security operations center deploying 64–128 cameras with server-side AI analytics — the kind of environment where consumer-grade hardware fails within 18 months and the cost of a platform swap outweighs the upfront delta on a workstation-class machine.
