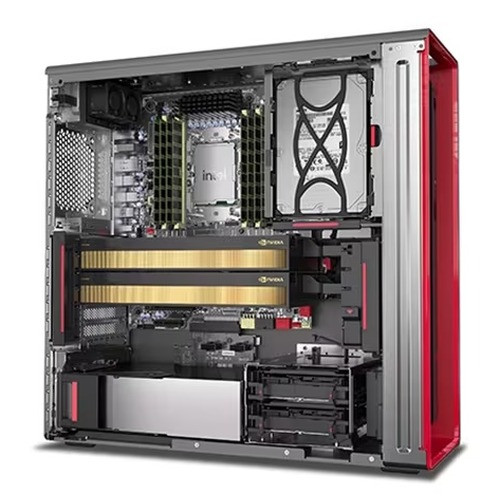

Lenovo 30GA004HUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 30GA004HUS is a tower workstation built around Intel's Xeon W platform, pairing the 10-core Xeon w5-2445 processor with 64GB of DDR5 memory in a configuration sized for demanding professional compute workloads. Whether you're running a professional workstation alongside a multi-camera VMS deployment, handling forensic video analysis, or serving as a dedicated processing node for AI-inferencing at the edge, the P5 delivers the headroom most dedicated workstations in this class simply don't have. The 30GA004HUS ships from MX under UNSPSC code 43211515, confirming its commercial workstation classification.

Key Features

• Intel Xeon w5-2445 — 10 Cores / 20 Threads at 3.1 GHz base, 4.6 GHz boost: The w5-2445 sits in Intel's Xeon W-2400 family, designed specifically for single-socket workstations that need more than consumer-grade Core processors deliver. At 4.6 GHz max turbo across 10 performance cores, it keeps frame-decode and analytics pipelines from bottlenecking even under concurrent high-channel loads. Twenty threads mean your VMS, analytics engine, and OS overhead don't fight over the same logical cores.
• LGA 4677 (Socket E) platform — PCIe 4.0 and 5.0 support: The platform supports both PCIe 4.0 and 5.0 expansion, which matters if you're adding high-bandwidth GPU accelerators, NVMe storage arrays, or capture cards. PCIe 5.0 doubles the per-lane bandwidth of Gen 4, so future GPU or storage additions won't be bottlenecked by the slot itself.
• 64GB DDR5-SDRAM, expandable to 512GB: Shipping with 64GB of DDR5, this configuration handles large in-memory datasets and simultaneous VMS + analytics workloads without swap thrashing. The 512GB ceiling means you have room to scale as channel count or ML model complexity grows — a meaningful advantage over consumer platforms that cap far lower.
• 26.25MB Intel Smart Cache: The large last-level cache reduces main-memory latency for workloads with repetitive data access patterns — video decode, database queries, and inference pipelines all benefit from keeping working sets in cache rather than round-tripping to DRAM.
• 175W base / 210W max turbo power envelope: The w5-2445 runs at 175W base processor power, spiking to 210W under sustained all-core turbo. Plan your rack or desk power circuit accordingly — this isn't a thin client. A dedicated 20A circuit is the right call in any professional installation.
• 9 lb tower form factor: At 9 lb, the P5 is desk- or shelf-deployable without specialized rack hardware. For security operations centers or control rooms where a full rack isn't available, the tower format keeps deployment straightforward.

Integration and Compatibility

The Lenovo ThinkStation line is widely supported across enterprise software stacks. The Xeon W platform with DDR5 is compatible with major NVR and VMS software platforms including Milestone XProtect, Genetec Security Center, and Avigilon Control Center — all of which have published hardware compatibility guidance for Xeon W workstations. The PCIe 4.0 and 5.0 slots accommodate GPU accelerators from NVIDIA (Quadro/RTX series) commonly used for deep-learning video analytics acceleration. For environments requiring TAA or NDAA compliance at the software or network layer, verify the full system BOM independently — compliance at the workstation level depends on the complete configuration including GPU and storage additions.

IT architects integrating this into a structured network environment should account for the 175–210W processor TDP when sizing UPS and PDU capacity, particularly in consolidated security operations rooms where multiple high-draw workstations coexist.

Frequently Asked Questions

Q: What processor does the 30GA004HUS use, and what are its clock speeds?

A: The 30GA004HUS uses the Intel Xeon w5-2445, a 10-core / 20-thread processor with a 3.1 GHz base frequency and 4.6 GHz maximum turbo frequency. It carries 26.25MB of Intel Smart Cache and is mounted in an LGA 4677 (Socket E) socket.

Q: How much RAM does the 30GA004HUS ship with, and what is the maximum?

A: It ships with 64GB of DDR5-SDRAM. The platform supports up to 512GB of internal memory, leaving substantial room for future expansion as workload requirements grow.

Q: What PCIe generations does the ThinkStation P5 30GA004HUS support?

A: The platform supports both PCIe 4.0 and PCIe 5.0 slots, accommodating current-generation GPU accelerators, NVMe drives, and capture or networking cards without bandwidth constraints from the slot interface.

Q: What is the power consumption of the 30GA004HUS?

A: The Intel Xeon w5-2445 processor has a base power of 175W and a maximum turbo power of 210W. Plan your power circuit and UPS capacity around the higher figure for sustained workloads.

Q: Is the 30GA004HUS suitable for running video analytics or VMS software?

A: The 10-core Xeon w5-2445 with 64GB DDR5 and PCIe 5.0 expansion is well-suited for VMS platforms and GPU-accelerated video analytics. Specific software compatibility should be verified against the VMS vendor's hardware compatibility list for the Xeon W-2400 platform.

Q: What operating system does the 30GA004HUS ship with?

A: Based on the product designation (W11PWS in the model name), this unit ships with Windows 11 Pro for Workstations.

Ted Perry

The 30GA004HUS lands in a useful middle zone for security operations deployments — the Xeon w5-2445's 4.6 GHz all-core turbo and 20-thread count give you genuine parallelism for simultaneous VMS recording, analytics processing, and operator workstation tasks without stepping up to a dual-socket platform and the cost that comes with it. The 64GB DDR5 starting point is the right call for a VMS server handling 32+ channels with motion analytics enabled.

Technical Highlights:

• 10C/20T Xeon w5-2445 at 4.6 GHz turbo: Handles concurrent decode, analytics inference, and VMS database operations without core contention — a real consideration when you're running Milestone or Genetec alongside a GPU-accelerated analytics engine on the same box.
• PCIe 5.0 slot availability: Doubles the per-lane bandwidth versus Gen 4, which matters when pairing with NVIDIA RTX professional GPUs for deep-learning analytics acceleration. You won't outgrow the slot with current-generation cards.
• DDR5-SDRAM expandable to 512GB: Starting at 64GB with 512GB headroom means this platform can grow with channel count. Most VMS deployments running 64+ cameras with on-server analytics will push past 64GB — budget the memory expansion into your total system cost from day one.

Deployment Considerations:

• The w5-2445 draws up to 210W at max turbo — size your UPS and PDU with that figure, not the 175W base. In a security operations room with multiple workstations, this adds up fast on a shared circuit.
• The tower form factor works well for desk or shelf deployment in control rooms, but isn't rack-mountable without a separate tower-to-rack conversion kit — verify that kit availability separately if rack integration is a requirement.

For a physical security operations center running a mid-scale VMS deployment (32–96 cameras) with on-server GPU analytics, the ThinkStation P5 30GA004HUS hits the performance tier where you get Xeon ECC reliability and PCIe 5.0 expansion without the overhead of a full dual-socket server platform.
