Lenovo 30GA0013US Thinkstation P5 W52445 16G X2 W11PWS

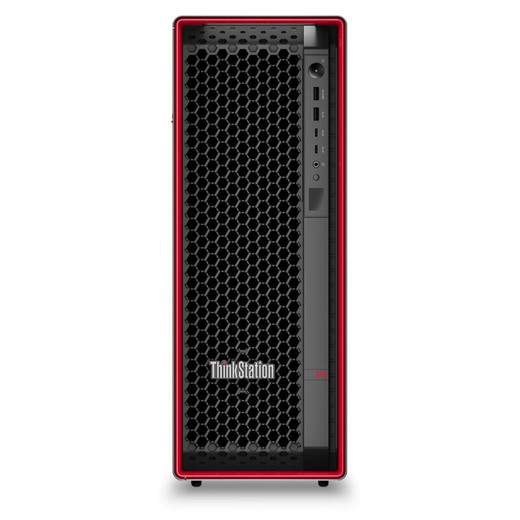

Lenovo 30GA0013US ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA0013US) is a tower workstation built around Intel's Xeon W processor platform — a deliberate choice for environments where ECC memory support, high core counts, and sustained all-day compute loads matter more than peak single-thread scores. Configured with the Intel Xeon w5-2445 (10 cores, 20 threads), 32GB of DDR5-4800 RAM across two slots, and Lenovo's ThinkStation P-series engineering pedigree, this machine targets video management server operators, forensic workstation deployments, and security operations centers that need reliable multi-stream processing without gambling on consumer-grade hardware.

The 30GA0013US ships from Mexico (country of origin MX) and carries UNSPSC code 43211515, placing it squarely in the professional workstation category for procurement classification purposes.

Key Features

• Intel Xeon w5-2445 Processor (10 Cores / 20 Threads): Base clock of 3.1 GHz with Turbo Boost up to 4.6 GHz — the extra threads matter when your video management software is simultaneously decoding streams, running motion analytics, and serving a live view to multiple operator stations. Consumer i9s hit similar peak clocks but lack Xeon's ECC memory path and validated ISV stack.
• 175W Base / 210W Max Turbo Power Envelope: The w5-2445 draws up to 210W under sustained all-core turbo — confirm your rack PDU or UPS allocation accounts for this before provisioning. The ThinkStation P5 chassis is engineered around this TDP, so thermal throttling under sustained VMS load is not expected, but site power planning is non-negotiable.
• 26.25 MB Intel Smart Cache: The large L3 cache reduces main-memory round trips during repetitive decode operations — relevant when the VMS is pulling H.265 streams from dozens of cameras simultaneously. Less cache thrashing means more consistent decode latency.
• 32 GB DDR5-4800 (2 × 16 GB, 8 DIMM Slots Available): DDR5-4800 delivers roughly 1.5× the bandwidth of DDR4-3200 — a meaningful uplift when the system is handling high-bitrate streams. More importantly, 6 slots remain open: the platform supports up to 512 GB total, so you can scale memory headroom as camera counts or analytics workloads grow without replacing the machine.
• Up to 512 GB Maximum Memory: For enterprise VMS deployments running AI-based analytics, database-backed event indexing, or virtualized management layers, the ability to expand to 512 GB on the same chassis is a meaningful TCO argument — one workstation can absorb roles that would otherwise require multiple servers.
• Tower Form Factor — 22.00 × 11.50 × 23.90 in: At just under two feet tall and nearly two feet deep, this is a floor-standing tower, not a rack unit. Plan physical footprint accordingly — it fits under a standard desk or in a dedicated workstation bay, but it will not slide into a 19-inch rack without a tower-to-rack conversion kit.
• 39.90 lb Shipping Weight: Heavier than a typical desktop, reflecting the full tower chassis and workstation-grade internal framework. Budget for two-person handling during installation in secure equipment rooms or raised-floor environments.

Integration and Compatibility

The ThinkStation P5 platform is validated by Lenovo against a broad set of ISV (independent software vendor) applications — including major VMS platforms, CAD tools, and simulation environments. The Xeon W-series processor ensures compatibility with ECC-registered memory modules, which is a prerequisite for some enterprise VMS licensing tiers and is generally expected in 24/7 always-on deployments.

The DDR5 memory architecture on the w5-2445 platform is dual-channel across the populated slots. To maintain bandwidth symmetry, populate DIMMs in matched pairs. With 2 × 16 GB installed from the factory, the system ships in optimal dual-channel configuration — adding memory later should follow the same pairing discipline to avoid dropping to single-channel operation on any bank. Pair this workstation with a managed PoE switch infrastructure and your VMS of choice for a complete surveillance backbone.

The 30GA0013US runs Windows 11 Pro for Workstations (as indicated by the W11PWS suffix in the product name), which includes ReFS file system support, persistent memory support, and SMB Direct — features that matter in high-throughput storage configurations common in video surveillance back-ends.

Frequently Asked Questions

Q: What processor does the Lenovo 30GA0013US include?

A: The 30GA0013US ships with the Intel Xeon w5-2445 — a 10-core, 20-thread processor with a 3.1 GHz base clock, 4.6 GHz Turbo Boost, and 26.25 MB Intel Smart Cache. It carries a 175W base power rating with up to 210W under maximum turbo.

Q: How much RAM does the 30GA0013US ship with, and what is the maximum?

A: The system ships with 32 GB of DDR5-4800 SDRAM in a 2 × 16 GB configuration across two of the eight available DIMM slots. Maximum supported memory is 512 GB, giving significant headroom for analytics-heavy or multi-role VMS deployments.

Q: What operating system does the 30GA0013US include?

A: Based on the product name suffix (W11PWS), the 30GA0013US ships with Windows 11 Pro for Workstations — a workstation-specific SKU that includes ReFS, SMB Direct, and persistent memory features not found in standard Windows 11 Pro.

Q: Will the 30GA0013US fit in a standard server rack?

A: No — the ThinkStation P5 is a tower workstation measuring 22.00 × 11.50 × 23.90 inches and weighing 39.90 lb. It does not mount directly in a 19-inch rack without a compatible tower-to-rack rail kit. Plan for floor or desk placement in your deployment environment.

Q: Is DDR5 memory backward compatible with the existing DIMMs in my current workstation?

A: No. DDR5 DIMMs are not physically or electrically compatible with DDR4 slots. The ThinkStation P5 platform requires DDR5 modules exclusively. If you are expanding memory post-purchase, ensure any added DIMMs are DDR5-4800 and matched to the factory-installed modules for dual-channel operation.

Q: What is the power draw of the 30GA0013US, and how should I plan for it?

A: The Xeon w5-2445 processor alone draws up to 210W at maximum turbo. Total system power — including GPU, storage, and other components — will exceed this figure. Size your UPS and PDU circuits accordingly; a 20A dedicated circuit is a reasonable minimum for a fully loaded configuration.

Karl Wilson

The spec that stands out most to me on the 30GA0013US is the memory ceiling: 512 GB across eight DIMM slots on a DDR5-4800 platform. That is not a number you see on a consumer workstation, and it is exactly what separates this machine from an i9 build when you are running a VMS that needs to hold large event indexes in memory alongside simultaneous decode threads for 50+ camera streams.

Technical Highlights:

• Xeon w5-2445 — 10C/20T at 4.6 GHz Turbo: The thread count is the operative figure here. VMS decoders, analytics engines, and live-view rendering all compete for CPU time. Twenty threads with ECC memory support means you can commit this machine to 24/7 unattended operation without the instability risk that plagues consumer builds under sustained load.
• DDR5-4800 at 32 GB (2 × 16 GB): Ships in dual-channel configuration, which is the right baseline. The 4800 MHz speed matters less than the fact that DDR5 brings higher per-DIMM density and improved error correction — relevant for long-duration surveillance recording workloads where a single bit flip can corrupt a multi-hour recording segment.
• 175W base / 210W max TDP processor: This is a significant power draw. At 210W for the CPU alone, total system power under full load (with a discrete GPU and multiple storage drives) could approach 500–600W. That calculation belongs in your UPS and circuit planning before the machine ships, not after it arrives on site.

Deployment Considerations:

• The tower form factor (22 × 11.5 × 23.9 in, 39.9 lb) requires floor or desk placement — confirm your equipment room or SOC layout has the physical space and ventilation clearance before ordering. Rack deployment requires a separate tower-to-rack conversion kit not included with this SKU.
• Six of eight DIMM slots are open from the factory. Before adding memory, verify the specific DDR5 RDIMM or UDIMM type and speed validated for this platform — mixing unvalidated modules on a Xeon W board can cause boot failures or drop the system to sub-optimal memory speeds without warning.

For a security operations center running a large-site VMS — 64 to 128 cameras, AI-based analytics, and 24/7 operator coverage — the 30GA0013US gives you a processor and memory architecture that can grow with the deployment. It is not a general-purpose desktop and should not be priced or spec'd against one.
