Lenovo 30F30080US Thinkstation P7 W93495X 16G X8 W11PWS

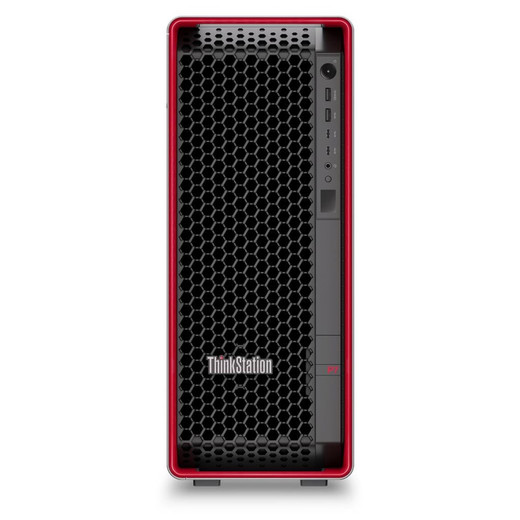

Lenovo 30F30080US ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 (30F30080US) is a single-socket tower workstation built around the Intel Xeon W9-3495X — a 56-core, 112-thread processor that sets the ceiling for single-socket compute performance. If your workload is professional workstation-class rendering, large-model simulation, forensic video analysis, or multi-stream surveillance video processing, this is the machine that eliminates the need to step up to a dual-socket chassis. It ships with 128 GB of DDR5-4800 ECC memory across 8 DIMM slots and a 1 TB SSD, running Windows 11 Pro for Workstations out of the box.

Key Features

• 56-Core Intel Xeon W9-3495X at 4.8 GHz Boost: 112 hardware threads with a 4.8 GHz single-core boost means you get both throughput and responsiveness — heavy multi-threaded jobs don't stall single-threaded UI tasks. For video operators running simultaneous decode, analytics, and export pipelines, that core count matters.
• 128 GB DDR5-4800 ECC RAM (8×16 GB): DDR5 at 4800 MHz delivers roughly double the memory bandwidth of DDR4-3200. ECC (Error-Correcting Code) silently corrects single-bit memory errors — a hard requirement in any environment where a silent data corruption would invalidate an investigation or a simulation run. 128 GB supports large in-memory datasets without paging to disk.
• Expandable to 1 TB RAM: The 8-slot DDR5 architecture supports up to 1 TB of total memory. If your workload grows — larger AI inference models, bigger video buffers, expanded VM fleets — you can upgrade DIMMs without replacing the chassis. That headroom matters when the machine needs to stay in service for 5+ years.
• 1 TB NVMe SSD: A single 1 TB SSD handles OS, applications, and active project files at NVMe speeds. For multi-stream surveillance archiving or large-file ingest workloads, plan storage expansion via additional internal bays or external NAS — the SSD keeps the OS and working set fast while bulk data lives on capacity drives.
• Windows 11 Pro for Workstations: This SKU ships with Windows 11 Pro for Workstations, which includes ReFS filesystem support, persistent memory management, and SMB Direct — features aimed at workstation-class storage and networking that the standard Pro edition omits. No OS licensing cost to add separately.
• Intel Xeon W9-3495X Base at 1.9 GHz: The 1.9 GHz base frequency reflects the power and thermal headroom being distributed across 56 cores under full load. Under lightly-threaded or bursty workloads the 4.8 GHz boost is what you'll experience. Size your cooling and power infrastructure accordingly — this processor draws substantial sustained wattage at full utilization.
• 9 lb Tower Form Factor: At 9.00 lb, the P7 is a deployable tower that fits under a desk or in a workstation rack with a tower-to-rack conversion kit. The compact weight relative to the compute class reflects the single-socket design — no second CPU, no second memory subsystem adding bulk.

Integration and Compatibility

The 30F30080US is a Windows-native platform. Any video management software with a Windows 11 client or server agent — Milestone XProtect, Genetec Security Center, Avigilon Control Center, Axis Camera Station — installs without OS compatibility friction. The Xeon W9-3495X supports Intel vPro Enterprise, enabling out-of-band remote management (KVM over network, BIOS-level remote access) useful for headless server-room deployments where physical access is limited.

DDR5 ECC memory is a hard requirement for ISV-certified workstation applications in CAD, simulation, and broadcast environments. Verify your specific Lenovo workstation ISV certification list if your VMS or engineering application has a published hardware qualification program — the P7 platform is a common target for these certifications.

For surveillance-specific deployments: the processor's core count supports running a high-channel-count NVR software instance alongside analytics engines simultaneously. If you're pairing this with network video recorders or integrating into a distributed VMS architecture, the 128 GB RAM baseline leaves ample headroom for OS, VMS server process, database, and multiple analytics modules running concurrently.

Frequently Asked Questions

Q: What processor is in the Lenovo ThinkStation P7 30F30080US?

A: The 30F30080US is configured with the Intel Xeon W9-3495X — 56 cores, 112 threads, 1.9 GHz base clock, and 4.8 GHz boost frequency.

Q: How much RAM does the 30F30080US ship with and what is the maximum?

A: It ships with 128 GB of DDR5-4800 ECC SDRAM installed as 8×16 GB across all 8 DIMM slots. The platform supports up to 1 TB of total installed memory.

Q: What storage is included in the 30F30080US?

A: One 1 TB SSD is installed. There is no optical drive included in this configuration.

Q: What operating system does the 30F30080US ship with?

A: Windows 11 Pro for Workstations is included. This is the workstation-grade edition with ReFS, SMB Direct, and persistent memory support — not standard Windows 11 Pro.

Q: How much does the Lenovo ThinkStation P7 30F30080US weigh?

A: The unit weighs 9.00 lb.

Q: Can the RAM be upgraded after purchase?

A: Yes. The 8 DIMM slots are populated with 8×16 GB at purchase. The platform supports up to 1 TB total, so higher-capacity DIMMs can be installed as workload requirements grow — provided the new modules meet the DDR5-4800 ECC specification.

Jerry Tildsen

The 30F30080US is the configuration I point architects toward when they need a single-socket platform that won't bottleneck a high-channel surveillance analytics deployment. The Xeon W9-3495X's 56 cores at 4.8 GHz boost gives you enough headroom to run a full VMS server process, a GPU-backed analytics engine, and a database service on the same machine without any of them starving for CPU cycles.

Technical Highlights:

• 56-Core / 112-Thread Xeon W9-3495X: At 4.8 GHz boost, this CPU handles both the parallelism of multi-stream video decode and the single-thread responsiveness operators expect in the UI — you don't give up one for the other.
• 128 GB DDR5-4800 ECC (8×16 GB): DDR5 at 4800 MHz doubles the memory bandwidth over previous-gen DDR4 platforms. ECC is non-negotiable for 24/7 unattended server workloads — silent bit-flip corrections prevent the kind of data corruption that invalidates video evidence or crashes analytics inference.
• Expandable to 1 TB RAM: All 8 DIMM slots populated at 16 GB each. Upgrading to 32 or 64 GB DIMMs later is a drop-in operation — the chassis and memory controller already support it, no new hardware required.

Deployment Considerations:

• Plan your power circuit before deployment. The Xeon W9-3495X at full 56-core utilization draws substantial sustained wattage — verify your rack or office circuit can support the ThinkStation P7's power supply rating under worst-case load, especially if co-located with other high-draw equipment.
• The 1 TB SSD is the only internal storage in this configuration. For a production VMS or analytics server role, you'll need to add either internal storage drives (verify bay availability for the P7 chassis) or attach network-attached storage — the SSD alone is not sized for long-retention video archives.

This machine fits a 100–200 camera analytics server role where a dedicated GPU card will be added post-purchase — the W9-3495X provides the CPU complement to a high-end GPU without the platform becoming the bottleneck. It also works well as a primary VMS server in a physical security operations center where the machine needs to stay online and responsive 24/7 without the cost or complexity of a dual-socket server chassis.
