Lenovo 30F30015US Thinkstation P7 W93495X 16G X8 W11PWS

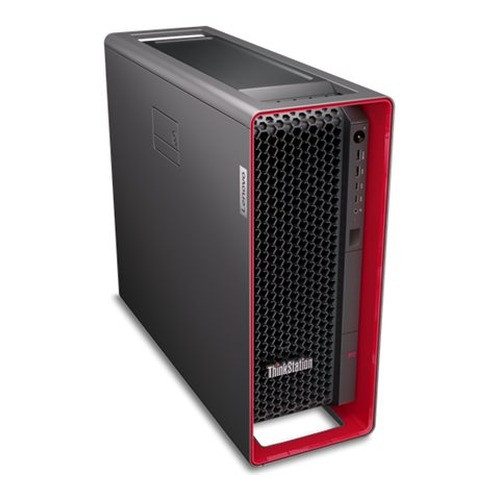

Lenovo 30F30015US ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 30F30015US is a single-socket tower workstation built around the Intel Xeon w9-3495X — Intel's 56-core Sapphire Rapids flagship — configured with 128GB of DDR5 ECC memory across eight DIMM slots. This is the machine you spec when the workflow genuinely demands thread count: large-scale VMS server duties running dozens of simultaneous AI-analytics streams, multi-camera forensic review with real-time transcoding, or compute-intensive simulation workloads that would saturate a conventional desktop CPU in minutes. The 30F30015US ships with Windows 11 Pro for Workstations, making it enterprise-domain-ready out of the box.

The Xeon w9-3495X belongs to Lenovo's Lenovo workstation lineup at the top of the W-2400 series stack. For integrators evaluating professional workstations for security operations centers or surveillance back-end infrastructure, the P7 sits at the ceiling of single-socket tower performance.

Key Features

• 56-Core / 112-Thread Intel Xeon w9-3495X: At 1.9 GHz base with 4.8 GHz boost across 56 cores and 112 threads, this CPU handles workloads that would require two mid-range servers — running a 64-channel VMS with deep-learning analytics enabled on every channel, for instance, without the software licensing overhead of a clustered solution.
• 420W Maximum Turbo Power: The w9-3495X is rated at 350W base and 420W turbo — a real factor for rack or cabinet planning. Size the UPS and circuit accordingly; this is not a machine you can run off a shared 15A office circuit with other equipment.
• 128GB DDR5-4800 ECC RAM (8 × 16GB DIMMs): DDR5-4800 delivers roughly double the bandwidth of DDR4 at equivalent speeds, which matters when you're feeding 56 cores from a shared memory bus. ECC protection is non-negotiable for 24/7 server-class operation — single-bit memory errors are silently corrected rather than causing system crashes or corrupted video archives.
• Expandable to 1TB System Memory: Eight DIMM slots with a 1TB ceiling means you can grow into larger in-memory datasets — relevant if the machine is running a database-backed VMS, AI model inference with large weight files loaded in RAM, or virtualized workloads where memory is the bottleneck before CPU.
• 105MB Smart Cache: The w9-3495X's 105MB L3 cache is large enough to hold entire working sets for many analytics workloads, reducing main-memory round-trips. On multi-stream video analytics pipelines, this translates to more consistent frame processing latency.
• Windows 11 Pro for Workstations: Ships with the OS that supports ReFS file system, persistent memory, and higher RAM ceilings than standard Windows 11 Pro — the right baseline for a machine this size rather than retrofitting an OS upgrade later.
• Tower Form Factor, 9 lb: At 9 lb the P7 is surprisingly mobile for a 56-core workstation — relevant when a system integrator needs to stage, pre-configure, and ship a pre-built VMS appliance to a remote site rather than assembling on-site.

Integration & Compatibility

The ThinkStation P7 30F30015US runs standard x86-64 Windows, which means it integrates with the full ecosystem of enterprise VMS platforms — Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and others — without driver or OS compatibility concerns. The Xeon W platform supports ECC memory and PCIe 5.0, giving headroom for high-bandwidth GPU accelerator cards used in AI-based video analytics. For integrators building a network video recorder or analytics server solution, the P7's thread count and memory bandwidth make it a viable foundation for centralized processing of feeds from large IP camera deployments.

Planning the power budget is the critical integration step — reference a UPS and power protection solution sized for the 420W turbo draw plus GPU and storage loads. The platform's PCIe expansion capacity accommodates capture cards, 10GbE NICs, and NVMe RAID controllers for high-ingest surveillance storage architectures.

Frequently Asked Questions

Q: What processor does the ThinkStation P7 30F30015US use?

A: The 30F30015US is configured with the Intel Xeon w9-3495X — a 56-core, 112-thread Sapphire Rapids processor with a 1.9 GHz base frequency and 4.8 GHz maximum turbo frequency, 105MB Smart Cache, 350W base power, and 420W maximum turbo power.

Q: How much RAM does the 30F30015US ship with, and what is the maximum?

A: It ships with 128GB of DDR5-4800 ECC SDRAM configured as 8 × 16GB DIMMs across 8 DIMM slots. The platform supports up to 1TB of system memory, giving significant headroom for memory-intensive workloads.

Q: Is the ThinkStation P7 30F30015US suitable as a VMS server for large camera deployments?

A: Yes — the 56-core Xeon w9-3495X and 128GB DDR5 ECC RAM provide the compute and memory bandwidth to run enterprise VMS platforms (Milestone, Genetec, Avigilon, etc.) with AI analytics enabled across many simultaneous camera streams. Actual channel capacity depends on the VMS software, analytics complexity, and GPU configuration.

Q: What operating system does the 30F30015US ship with?

A: The system ships with Windows 11 Pro for Workstations, which supports enterprise features including ReFS file system, higher RAM ceilings, and domain integration — appropriate for a workstation of this class.

Q: What are the power requirements for the ThinkStation P7 30F30015US?

A: The Intel Xeon w9-3495X has a 350W base power draw with a 420W maximum turbo power rating. Total system power (including GPU, storage, and memory) will exceed this — plan for a dedicated 20A circuit and appropriately rated UPS. Do not share the circuit with other high-draw equipment.

Q: Can the ThinkStation P7 30F30015US be expanded beyond its shipping configuration?

A: Yes — the 8 DIMM slots allow memory expansion up to 1TB. The Xeon W platform supports PCIe 5.0 expansion for GPUs, capture cards, 10GbE NICs, and NVMe storage controllers, making the P7 adaptable as workload requirements grow.

Eden Phillips

The ThinkStation P7 30F30015US is the machine I recommend when an integrator comes to me with a deployment that has outgrown conventional server hardware — specifically, the w9-3495X's 56-core / 112-thread configuration at 4.8 GHz boost means you're running thread-saturating workloads (multi-stream AI analytics, large-scale VMS with concurrent forensic search, or heavy transcoding) without needing to split the job across multiple nodes.

Technical Highlights:

• 56 Cores / 112 Threads at 4.8 GHz Boost: The w9-3495X sits at the top of Intel's workstation CPU stack — 56 performance cores with no efficiency cores to complicate thread scheduling. At 4.8 GHz turbo, single-threaded tasks (license plate reads, event correlation) don't stall waiting for a boost-capable core.
• 128GB DDR5-4800 ECC in 8-Slot Configuration: DDR5 at 4800 MHz delivers the memory bandwidth a 56-core processor needs. ECC is not optional for 24/7 unattended operation — without it, a single DRAM bit-flip can corrupt a video database or crash a VMS service silently.
• Up to 1TB System RAM: Eight DIMM slots with a 1TB ceiling means the platform doesn't become a memory wall as workloads scale. For VMS deployments running in-memory event indexes or large AI model weights, this headroom is the difference between one machine and two.

Deployment Considerations:

• The w9-3495X draws up to 420W at turbo — before adding GPU, NVMe drives, and memory load. Size the circuit, PDU, and UPS for at least 800W sustained system draw, more if a high-TDP GPU is installed for analytics acceleration.
• The 30F30015US ships with 8 × 16GB DIMMs filling all 8 slots. If you need to upgrade to larger DIMMs (e.g., 64GB or 128GB sticks for the 1TB ceiling), you'll be replacing all eight — factor that into the memory upgrade cost at procurement time.

This configuration is the right call for a centralized security operations center server handling 64+ camera streams with deep-learning analytics, or as the compute backbone for a large-scale access control and video integration platform where thread count and ECC memory reliability are non-negotiable requirements.
