Lenovo 30F3004MUS Thinkstation P7 W53425 16G X2 W11PWS

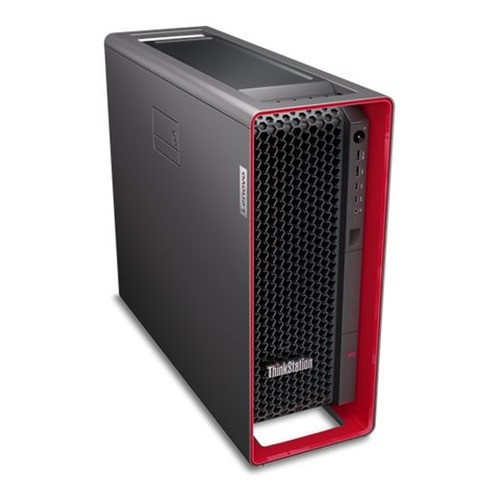

Lenovo 30F3004MUS ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 (30F3004MUS) is a single-socket professional workstation built around the Intel Xeon w5-3425 — a 12-core, 24-thread processor that runs at 3.2 GHz base and boosts to 4.6 GHz. This is the platform you reach for when a standard desktop runs out of headroom: physical simulation, large-dataset analytics, multi-stream video processing for video management and surveillance workloads, or CAD environments that punish anything less than workstation-class memory bandwidth. The 30F3004MUS ships with 32 GB of DDR5-SDRAM across two DIMMs, giving you headroom to add capacity without immediately replacing what's installed.

Key Features

• Intel Xeon w5-3425 — 12 cores, 24 threads: The Xeon W series is binned for continuous workload stability, not burst desktop use. At 3.2 GHz base with a 4.6 GHz single-core turbo, you get sustained throughput across all 12 cores — relevant when running multi-camera analytics decoding or parallel rendering tasks that collapse under thermal throttling on consumer chips.
• 30 MB Intel Smart Cache: A larger last-level cache reduces main-memory round-trips on working sets that fit — useful in analytics pipelines where the same frame buffers or model weights are accessed repeatedly. Fewer cache misses translate directly to more consistent frame decode rates.
• 270 W TDP / 324 W max turbo power: This processor is rated for sustained 270 W operation, with up to 324 W available under full turbo load. Plan your rack or workstation power circuit accordingly — this is not a device you put on a shared 15A circuit with other equipment. A dedicated 20A circuit is the safe configuration.
• 32 GB DDR5-SDRAM (2x 16 GB), expandable to 1 TB: DDR5 delivers materially higher memory bandwidth than DDR4 — important for workloads that stream large datasets through the processor. The 1 TB maximum capacity means this platform can scale to handle in-memory databases, large video frame buffers, or AI inference workloads without a board swap.
• PCIe 4.0 and PCIe 5.0 slot support: PCIe 5.0 doubles the per-lane bandwidth of PCIe 4.0 (128 GB/s vs. 64 GB/s on x16). If you're pairing this workstation with a current-generation GPU or NVMe storage array, PCIe 5.0 slots remove the I/O bottleneck that limits throughput on older platforms.
• LGA 4677 (Socket E) platform: The Xeon W-2400/3400 socket generation targets single-socket professional workstations, differentiating from dual-socket server hardware. This means you get server-class ECC memory support and PCIe lane counts without the physical footprint, power draw, or licensing overhead of a two-socket server chassis.
• Windows 11 Pro for Workstations (W11PWS): The Pro for Workstations edition includes ReFS file system support, persistent memory support, and higher RAM ceilings than standard Windows 11 Pro — practical differences for sustained read/write workloads and larger memory configurations as you expand beyond the base 32 GB.

Integration and Compatibility

The ThinkStation P7 platform is designed for professional software stacks. The Xeon w5-3425 supports ECC memory, which matters in 24/7 environments where silent data corruption is a real operational risk. For network video recorder and VMS deployments, a workstation at this specification level is appropriate when the software-based VMS server is handling decode of 32 or more high-resolution streams simultaneously — a load profile where a consumer-class CPU becomes the bottleneck. PCIe 5.0 slot availability also positions this platform for current-generation capture cards, GPU-accelerated analytics engines, or high-throughput NVMe arrays used in long-retention recording setups. For integrators evaluating the broader Lenovo workstation line, the P7 sits above the P5 (single-socket, lower core count) in the ThinkStation hierarchy — appropriate when the workload justifies the Xeon W-3400 series rather than the more modest W-2400 or Core-based options. If your deployment involves IP camera analytics processing at the edge or at a central workstation node, the 24-thread headroom and DDR5 bandwidth here are meaningful, not just spec-sheet filler. A compatible PoE switch infrastructure feeding cameras into a VMS running on this workstation closes the loop on a fully integrated security recording architecture.

Frequently Asked Questions

Q: What processor does the Lenovo 30F3004MUS include, and what are its core specifications?

A: The 30F3004MUS ships with an Intel Xeon w5-3425 — 12 performance cores, 24 threads, 3.2 GHz base clock, 4.6 GHz max turbo frequency, and 30 MB Intel Smart Cache. Processor base power is 270 W with a maximum turbo power of 324 W.

Q: How much RAM does the ThinkStation P7 30F3004MUS come with, and what is the maximum?

A: It ships with 32 GB of DDR5-SDRAM installed across two 16 GB DIMMs. The platform supports up to 1 TB of total installed memory, giving substantial room to expand as workload demands grow.

Q: What PCIe generations does the 30F3004MUS support?

A: The ThinkStation P7 30F3004MUS includes both PCIe 4.0 and PCIe 5.0 slots. PCIe 5.0 doubles the per-lane bandwidth available compared to PCIe 4.0, which is relevant when pairing with current-generation GPUs or high-throughput NVMe storage.

Q: Is the 30F3004MUS suitable for running a software VMS server or video analytics workstation?

A: Yes. The 12-core Xeon w5-3425 with 24 threads and DDR5 memory bandwidth is well-matched to multi-stream video decode, GPU-accelerated analytics (with an appropriate GPU installed), and long-retention NVMe storage arrays. It is a platform-level fit for VMS deployments handling 32 or more concurrent HD streams.

Q: What operating system does the 30F3004MUS ship with?

A: It ships with Windows 11 Pro for Workstations, which includes ReFS file system support, higher RAM ceilings, and persistent memory features not available in standard Windows 11 Pro editions.

Q: What is the weight of the ThinkStation P7 30F3004MUS?

A: The unit weighs 9.00 lb as shipped.

Eden Phillips

The 30F3004MUS is one of those platforms where the memory ceiling is the headline spec to understand before you commit: 1 TB DDR5 maximum across the LGA 4677 socket means this workstation can grow to handle in-memory datasets that would require a dedicated server on older platforms. I've seen integrators under-spec the VMS server and then buy a second unit two years later — the P7 addresses that by giving you a realistic upgrade runway on a single-socket footprint.

Technical Highlights:

• Xeon w5-3425 — 270 W sustained TDP: This is not a burst-performance chip; it's binned for sustained operation at 270 W, which is what matters in a 24/7 VMS decode environment where the CPU never really idles. The 4.6 GHz single-core turbo handles synchronous API calls and UI threads without pulling down batch decode throughput.
• PCIe 5.0 slots: Current-generation analytics GPUs and NVMe arrays are beginning to saturate PCIe 4.0 x16 at 64 GB/s. PCIe 5.0 doubles that ceiling — future-proofing GPU and storage I/O without a platform change as you scale camera counts or switch to higher-bitrate codecs.
• DDR5-SDRAM with 1 TB ceiling: DDR5 delivers higher peak bandwidth than DDR4 at equivalent capacity, which directly improves throughput in multi-stream decode pipelines. Starting at 32 GB and expanding incrementally is a realistic deployment pattern here.

Deployment Considerations:

• The 270 W processor base TDP — rising to 324 W under max turbo — means power planning matters. This unit should be on a dedicated 20A circuit; sharing a circuit with PoE switches or UPS loads that are already near capacity is a real installation risk.
• The 30F3004MUS ships without a discrete GPU specified in the evidence. If your VMS or analytics platform requires GPU acceleration (common with deep-learning video analytics), verify GPU selection and PCIe slot clearance before finalizing the order.

For a central VMS workstation in a mid-to-large commercial security deployment — 64 to 128 cameras, mixed codec streams, GPU-accelerated analytics — the P7 platform at this specification is a reasonable anchor. It's particularly well-positioned where the expected camera count or stream density will grow over a 3–5 year contract cycle and you can't afford a forklift upgrade mid-contract.
