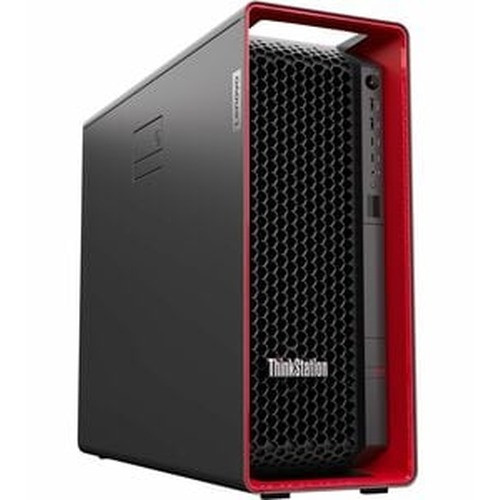

Lenovo 30F3006FUS ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 30F3006FUS is a single-socket tower workstation built around the Intel Xeon w5-3425 processor — a 12-core, 24-thread chip with a 3.2 GHz base clock and 4.6 GHz max turbo frequency, housed in an LGA 4677 (Socket E) platform. If your deployment demands dedicated compute for video management software, real-time AI-based video analytics, large-scale BIM modeling, or simulation workloads, the 30F3006FUS is sized to carry those loads without forcing you into a dual-socket chassis or a rack-mount footprint.

This configuration ships with 32 GB of DDR5-SDRAM across two modules — giving you ECC-capable memory bandwidth suited to data-intensive workloads — with the platform scaling to a maximum of 1 TB of installed memory as your needs grow. The combination of PCIe 5.0 and PCIe 4.0 expansion slots means you can install current-generation GPU accelerators or high-throughput NVMe storage arrays without a bandwidth bottleneck at the bus.

Key Features

• Intel Xeon w5-3425, 12 Cores / 24 Threads: The w5-3425 runs at 3.2 GHz base and boosts to 4.6 GHz, with 30 MB of Intel Smart Cache. For VMS deployments decoding multiple high-resolution H.265 streams simultaneously, 24 threads provide the headroom to handle codec processing, analytics inference, and recording I/O concurrently without saturating the CPU.
• 32 GB DDR5-SDRAM (Dual-Channel, Expandable to 1 TB): DDR5 delivers roughly double the bandwidth of DDR4 at equivalent speeds — important when feeding a GPU accelerator or running in-memory analytics databases. Starting at 32 GB keeps the base price contained; the 1 TB ceiling means you're not replacing the platform as workloads scale over a 5–7 year refresh cycle.
• PCIe 5.0 + PCIe 4.0 Slots: PCIe 5.0 doubles the per-lane bandwidth of PCIe 4.0 (64 GT/s vs. 32 GT/s). Pairing this platform with a PCIe 5.0-capable GPU or NVMe SSD means you won't be leaving storage or GPU throughput on the table. PCIe 4.0 slots handle secondary accelerators or capture cards without bottlenecking the primary expansion slot.
• LGA 4677 (Socket E) Platform: The Xeon W-3400 series Socket E platform supports the full w5/w7/w9 processor stack — if your workload requirements increase, the processor can be upgraded in-socket rather than requiring a full platform replacement, which matters for environments with long asset lifecycles.
• 270 W Base / 324 W Max Turbo TDP: The w5-3425 carries a 270 W processor base power rating with a 324 W max turbo power envelope. Plan your rack or office power circuit accordingly — this is not a low-wattage platform. A 20A dedicated circuit is the practical minimum for this workstation plus a professional GPU and NVR-class storage.
• Tower Form Factor, 9 lb: At 9 lb, the P7 tower is desk- or floor-deployable without rack infrastructure. For a control room or security operations center that doesn't have a server rack, the tower form factor keeps installation simple: power, display, and network connections, nothing more.
• Country of Origin — Mexico: Manufactured in Mexico, which is relevant for TAA-compliance screening on government and federal procurement projects. Verify TAA applicability for your specific contract vehicle before purchase.

Integration and Compatibility

The ThinkStation P7 platform supports major professional workstation operating environments including Windows 11 Pro for Workstations (as shipped in this configuration). The PCIe 5.0 primary slot is compatible with current-generation NVIDIA RTX Ada and AMD Radeon Pro GPU cards used in VMS-accelerated decoding and AI inferencing workflows. For security integrators deploying network video recorders or server-based VMS platforms such as Milestone XProtect, Genetec Security Center, or Avigilon Control Center, the Xeon w5-3425's 24 threads and the platform's large memory ceiling provide the processing envelope those applications require at scale. Storage expansion via PCIe 4.0 NVMe enables high-throughput local retention without relying solely on external NAS. Pair this workstation with a managed PoE network switch and a purpose-configured VMS license to build a complete on-premise surveillance compute stack. For guidance on sizing compute to camera count and retention requirements, see the security camera system buying guide.

Frequently Asked Questions

Q: What processor does the 30F3006FUS ship with, and how many cores does it have?

A: The 30F3006FUS ships with the Intel Xeon w5-3425 — a 12-core, 24-thread processor in the Xeon W-3400 family, with a 3.2 GHz base frequency and 4.6 GHz max turbo frequency.

Q: How much RAM comes installed, and what is the maximum the platform supports?

A: This configuration ships with 32 GB of DDR5-SDRAM across two modules. The ThinkStation P7 platform supports up to 1 TB of installed memory, giving significant headroom for memory-intensive workloads.

Q: What PCIe generations are available in the ThinkStation P7?

A: The P7 provides both PCIe 5.0 and PCIe 4.0 expansion slots. PCIe 5.0 is suitable for current-generation GPUs and NVMe storage; PCIe 4.0 slots handle secondary expansion cards.

Q: What is the power draw for this workstation?

A: The Intel Xeon w5-3425 has a 270 W processor base power and a 324 W maximum turbo power rating. Factor in GPU, storage, and system overhead when sizing your power circuit — a dedicated 20A circuit is recommended.

Q: Is this workstation suitable for running enterprise VMS platforms like Milestone or Genetec?

A: The 12-core Xeon w5-3425 with 24 threads, DDR5 memory bandwidth, and PCIe 5.0 GPU slot make this platform well-suited for server-class VMS deployments. Verify GPU and storage configuration against your specific VMS vendor's hardware recommendations for target camera count and retention period.

Q: What operating system does the 30F3006FUS ship with?

A: This configuration ships with Windows 11 Pro for Workstations, as indicated by the product name suffix (W11PWS).

Karl Wilson

When I'm spec'ing a VMS server for a mid-to-large camera deployment, the 30F3006FUS lands in a useful spot: the Intel Xeon w5-3425's 24 threads at up to 4.6 GHz turbo give you genuine headroom for concurrent H.265 decode, motion analytics inference, and recording I/O — workloads that will saturate a consumer desktop chip fast once you're past 40–50 camera streams.

Technical Highlights:

• Xeon w5-3425, 30 MB Smart Cache: 30 MB of L3 keeps frequently-accessed decode tables and analytics model weights close to the cores, reducing main-memory round-trips on high-stream-count workloads. It's not a spec most integrators talk about, but it shows up in sustained multi-stream latency benchmarks.
• DDR5-SDRAM, expandable to 1 TB: Starting at 32 GB is workable for a 64-camera deployment; scaling to 1 TB means you can grow the in-memory analytics footprint or add a GPU with a large VRAM requirement without hitting platform limits. DDR5's bandwidth improvement over DDR4 is particularly relevant when feeding a PCIe 5.0 GPU accelerator.
• PCIe 5.0 primary slot: A PCIe 5.0 x16 slot delivers up to 128 GB/s bidirectional bandwidth — enough to fully feed current NVIDIA RTX Ada-generation cards. If your VMS vendor supports GPU-accelerated decode (Milestone, Genetec, Avigilon all do to varying degrees), you're not leaving that acceleration on the table with this platform.

Deployment Considerations:

• The w5-3425 TDP is 270 W base, 324 W max turbo. Add a professional GPU (150–350 W) and you're looking at a sustained draw that needs a dedicated 20A circuit. Don't assume a standard 15A office outlet will hold up under full GPU + CPU load.
• This ships as a tower at 9 lb — fine for a control room floor or desk, but not rack-mountable without a tower-to-rack conversion kit. If your SOC has a rack, factor that accessory into the build cost before ordering.

The 30F3006FUS is the right call for a security operations center or enterprise VMS deployment where you're running 50–100+ cameras with server-side analytics and need a platform that won't require replacement when you add a second GPU or double your camera count two years from now.
