Lenovo 30F3006YUS Thinkstation P7 W53425 16G X4 W11PWS

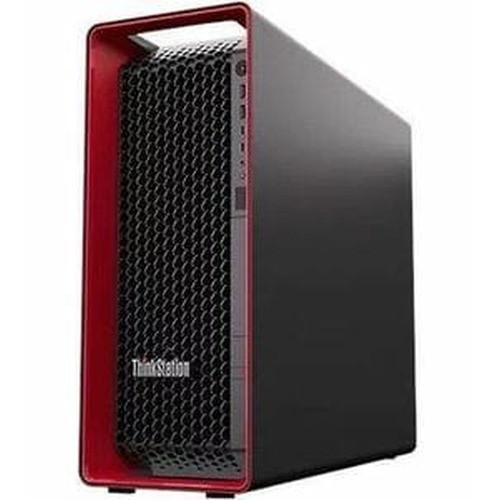

Lenovo 30F3006YUS ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 (30F3006YUS) is a single-socket tower workstation built around Intel's Xeon W processor family — specifically the 12-core w5-3425 — and configured with 64 GB of DDR5-SDRAM across four 16 GB modules. It ships with Windows 11 Pro for Workstations, making it a deployment-ready platform for compute-intensive roles: VMS server duty, AI-assisted video analytics processing, engineering simulation, or multi-stream media workloads where a consumer desktop simply cannot hold the memory or I/O bandwidth required. The 30F3006YUS is manufactured in Mexico and carries a UNSPSC code of 43211515, classifying it as a workstation-class computing device.

Key Features

• Intel Xeon w5-3425 (12C/24T, 3.2 GHz base / 4.6 GHz boost): The w5-3425 sits in the mid-tier of Intel's Xeon W-2400/W-3400 families on the LGA 4677 socket. Twelve performance cores with 24 threads handle parallelized workloads — simultaneous VMS recording, analytics inference, and administrative tasks — without the core-count penalty of binned desktop CPUs. The 4.6 GHz max turbo keeps single-threaded responsiveness high for operator console work.
• 30 MB Intel Smart Cache: A large on-die cache reduces memory latency for repeated data access patterns — relevant when running analytics engines that repeatedly reference the same classification models or when a VMS is indexing recent footage for motion search. Less cache pressure means fewer stalls on the Xeon's high-frequency cores.
• 64 GB DDR5-SDRAM (expandable to 1 TB): The factory configuration ships 64 GB, enough headroom for a mid-scale VMS host running 32–64 camera streams with software analytics enabled. The platform officially supports up to 1 TB of DDR5, so the same chassis can grow with your deployment — no forced hardware refresh when you expand the camera count or add AI workloads later.
• Dual PCIe generations — 4.0 and 5.0: The LGA 4677 platform exposes both PCIe 4.0 and PCIe 5.0 slots. PCIe 5.0 doubles the per-lane bandwidth of Gen 4, which matters when pairing high-throughput NVMe storage arrays or GPU accelerators for real-time deep-learning inference. Gen 4 slots remain available for existing add-in cards — capture cards, additional NIC, or RAID controllers — without wasting the Gen 5 lanes.
• 270 W base TDP / 324 W max turbo power: The w5-3425 is a high-TDP Xeon. At sustained turbo, the chip can draw up to 324 W on its own — factor this into UPS sizing and rack power budget if this unit is destined for a network closet or equipment room. The ThinkStation P7 chassis is engineered to handle the thermal load, but the building circuit and UPS must be sized accordingly.
• Windows 11 Pro for Workstations (factory-installed): The Pro for Workstations edition includes ReFS file system support, persistent memory support, and higher RAM ceilings compared to standard Pro — relevant for organizations running large VMS databases or requiring the additional file-system resiliency ReFS provides. Deploying from a factory-licensed OS eliminates activation complexity and ensures a clean baseline for enterprise imaging.
• 9 lb chassis weight: At 9.0 lb, the ThinkStation P7 is a tower-format unit. This is a desk-side or rack-adjacent deployment, not a rack-mounted appliance — plan accordingly for equipment room placements. A separate rack shelf or tower-to-rack conversion kit would be required if rack integration is the goal.

Integration and Compatibility

The LGA 4677 socket and Intel Xeon W platform are supported by most enterprise VMS vendors including Milestone XProtect, Genetec Security Center, and Avigilon Control Center — verify minimum server requirements against your specific VMS version and camera count before finalizing the configuration. The PCIe 5.0 lanes support current-generation GPU accelerators for analytics offload, and the DDR5 memory architecture is compatible with ECC RDIMM modules at higher capacities if the OEM supports ECC DIMMs in this SKU configuration — confirm with the memory configurator for the ThinkStation P7 platform. The 30F3006YUS ships from Mexico (country of origin confirmed) and carries standard commercial workstation classification under UNSPSC 43211515.

Frequently Asked Questions

Q: What processor does the Lenovo ThinkStation P7 30F3006YUS include?

A: The 30F3006YUS ships with the Intel Xeon w5-3425 — a 12-core, 24-thread processor on the LGA 4677 socket with a 3.2 GHz base clock and 4.6 GHz max turbo frequency, and 30 MB of Intel Smart Cache.

Q: How much RAM does this configuration include, and what is the maximum?

A: This configuration ships with 64 GB of DDR5-SDRAM (four 16 GB modules). The ThinkStation P7 platform supports up to 1 TB of internal memory, giving significant room for future expansion as workloads grow.

Q: What PCIe generations are available in the ThinkStation P7 30F3006YUS?

A: The platform includes both PCIe 4.0 and PCIe 5.0 expansion slots. PCIe 5.0 provides double the per-lane bandwidth of Gen 4, supporting high-throughput GPU accelerators or NVMe storage for demanding workloads.

Q: What operating system ships with the 30F3006YUS?

A: The unit ships with Windows 11 Pro for Workstations factory-installed, which includes ReFS file system support and higher memory ceiling support compared to standard Windows 11 Pro.

Q: Is the ThinkStation P7 30F3006YUS rack-mountable?

A: This SKU is a tower-format workstation weighing 9.0 lb. It is not a rack-mount appliance in this configuration. Rack integration would require a compatible tower-to-rack conversion kit or shelf.

Q: What is the processor TDP and what are the power requirements to consider?

A: The Intel Xeon w5-3425 has a 270 W base processor power with a maximum turbo power of 324 W. When sizing a UPS or planning circuit capacity for an equipment room installation, account for total system draw — processor alone can reach 324 W sustained under load.

Ted Perry

When I look at the 30F3006YUS, the spec that immediately shapes deployment planning is the 270 W base / 324 W max turbo draw on the Xeon w5-3425. This is not a desktop chip in a nice box — it is a full-fat workstation-class processor, and the power budget needs to match. Get that right upfront and the ThinkStation P7 becomes a very capable VMS or analytics server platform.

Technical Highlights:

• 12-core Xeon w5-3425 at 4.6 GHz turbo: Enough parallelism for 32–64 simultaneous camera stream processing in most VMS configurations, while the 4.6 GHz boost keeps operator-facing tasks snappy. The 30 MB Smart Cache reduces latency on repeated model lookups in analytics inference workflows.
• 64 GB DDR5 base / 1 TB max: The 64 GB factory config covers mid-scale deployments comfortably. The 1 TB ceiling means you can upscale the same chassis for larger analytics workloads without a hardware refresh — important when procurement cycles are long.
• PCIe 5.0 expansion: Gen 5 slots open the door to current-generation GPU accelerators for deep-learning inference offload — relevant if the VMS platform (Milestone, Genetec, Avigilon) supports GPU-accelerated analytics. Gen 4 slots handle legacy add-in cards without burning Gen 5 lanes.

Deployment Considerations:

• Plan UPS and circuit capacity for up to 324 W from the processor alone — total system draw under full load will exceed that once GPU, storage, and memory are factored in. A 1500 VA UPS minimum is a reasonable starting point for a single-unit equipment room install.
• This is a tower chassis (9.0 lb), not a 1U or 2U rack appliance. If it needs to live in a standard 19-inch rack, a tower-to-rack shelf is required — that adds height and airflow planning to the install scope.

The ThinkStation P7 30F3006YUS is a strong fit for a mid-to-large physical security operations center running a software VMS with AI analytics — where the combination of high single-thread speed, large DDR5 memory headroom, and PCIe 5.0 GPU expansion justifies the workstation-class platform over a general-purpose server.
