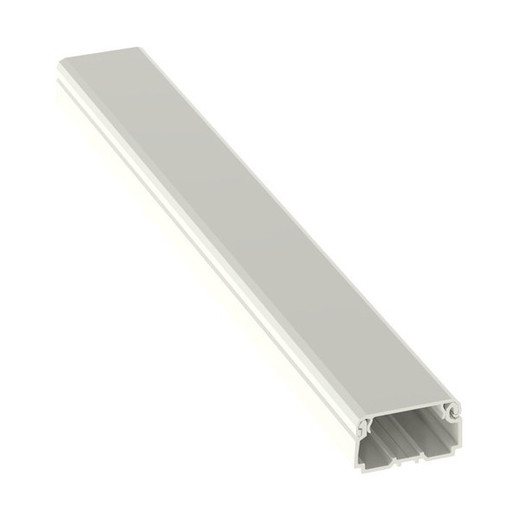

Panduit LDPH10 Hinged 2-PIECE PWR Rated Raceway

Panduit LDPH10WH6-A Single-Channel Power-Rated Surface Raceway

Overview

The Panduit LDPH10WH6-A is a two-piece, hinged-cover, power-rated surface raceway from the Pan-Way® LD family — purpose-built for routing both low-voltage signal cables and power runs up to 600 V along walls, baseboards, or ceilings in commercial and institutional settings. At 1.52 inches wide by 0.86 inches deep (39.0 mm × 21.8 mm) and 6 feet per length, this PVC raceway balances adequate cable capacity with a low-profile footprint that doesn't dominate a finished wall surface. Each package ships six 6-foot sections (36 linear feet total), making it practical to stage a full run without multiple orders.

The LDPH10WH6-A carries UL5A listing and meets TIA/EIA cabling standards, UL94V-0 flammability, and FT4 flame spread — certifications that matter when running cable inside occupied buildings where code compliance and AHJ sign-off are in play. For Panduit surface raceway systems and compatible fittings, the Pan-Way® LD line covers the breadth of what integrators need from corner pieces to outlet boxes.

Key Features

• 600 V power rating: Unlike low-voltage-only raceways, the LDPH10WH6-A is rated for circuits up to 600 V, letting you route AC power conductors alongside data or AV cables in the same channel — useful in retrofit installs where running a separate conduit isn't practical. Confirm local code allows combined routing before specifying.
• Two-piece hinged latching cover: The cover pops off and on without tools, so adding cables mid-run or making changes later doesn't require disassembly of the full run. This matters on office or hospital installs where moves and adds are routine.
• Factory-applied adhesive backing: Pressure-sensitive adhesive is already on the base — peel and stick to a clean, smooth wall surface and the raceway holds immediately. Pre-punched mounting holes are also present for screw fastening where code or substrate requires a mechanical attachment.
• Pre-punched mounting holes: On surfaces where adhesive alone isn't sufficient — concrete block, high-traffic corridors, exterior-adjacent walls — the pre-punched holes let you screw the base down without drilling through PVC and risking splits. Use both adhesive and screws on high-wear runs.
• 1.52" × 0.86" channel cross-section (39 mm × 22 mm): Sized for realistic cable fill on a single-run install: typical application handles structured cabling, low-voltage control wire, or a single power feed — not a multi-circuit distribution channel. Plan fill to 40–50% for future adds.
• PVC construction, white finish: White PVC blends into standard interior wall finishes without painting. The material is inherently non-corroding and appropriate for climate-controlled indoor environments. It is not rated for outdoor or wet-location use.
• UL5A listed / UL94V-0 / FT4: UL5A is the specific standard for surface metal and nonmetallic raceways — inspectors and AHJs recognize it. UL94V-0 flammability and FT4 flame spread ratings are required for most above-ceiling and plenum-adjacent runs in institutional occupancies; verify plenum requirements separately as this listing does not automatically confer plenum approval.
• Meets TIA/EIA cabling standards: The raceway geometry and material properties are consistent with TIA/EIA structured cabling pathway requirements — relevant when your cable plant requires documented compliance for a warranty or certification audit.
• Compatible with Panduit Mini-Com Surface Mount Boxes and surface mount outlet box solutions: Terminates cleanly into Panduit's outlet ecosystem, so jacks and faceplates integrate with the raceway rather than requiring field-fabricated terminations. Keeps the finished install looking purpose-built.
• 6-piece package, 36 linear feet per order: Six 6-foot sections ship together — enough to run a standard office perimeter or a camera drop in one order without buying by the stick. Carton quantity of 120 pieces supports bulk stocking for multi-room rollouts.

Integration and Compatibility

The LDPH10WH6-A is designed to work within the Pan-Way® LD surface raceway ecosystem. Fittings — inside corners, outside corners, flat elbows, T-fittings, and end caps — are available in the LD series and are necessary for any run that changes direction or terminates at a device. The raceway integrates directly with Panduit Mini-Com Surface Mount Boxes, enabling structured cabling terminations (RJ-45, coax, fiber) to land cleanly at the end of a surface run.

For security integrators routing IP camera drops in finished spaces — classrooms, lobbies, medical offices — this raceway provides a code-compliant, aesthetically acceptable pathway for both the Cat 5e/6 PoE cable and, where needed, a supplemental power feed in the same channel. Pair with surface raceway fittings to complete direction changes and terminations cleanly.

Broader wire management and cable routing options are available for applications requiring larger capacity, plenum-rated channels, or metal raceway systems. When specifying surface raceway for a full structured cabling deployment, review a cable pathway planning guide to confirm fill ratios and fitting requirements before ordering.

See the full Panduit catalog for compatible LD-series fittings, outlet boxes, and raceway accessories in matching white PVC.

What's in the Box

• 6× Panduit LDPH10WH6-A surface raceway sections (6 ft each, 36 linear ft total)

Frequently Asked Questions

Q: Can the LDPH10WH6-A be used to route 120V AC power conductors alongside Cat 6 data cable in the same channel?

A: The raceway is rated for circuits up to 600 V, so it can physically accommodate power conductors. However, whether combined routing of power and data is permitted depends on your local electrical code and AHJ interpretation — NEC Article 800 and Article 800.133 govern low-voltage cable separation from power conductors. Confirm with the AHJ before combining power and signal in the same channel.

Q: Does the LDPH10WH6-A install with adhesive only, or do I need to screw it to the wall?

A: The base has factory-applied pressure-sensitive adhesive for fast installation on smooth, clean surfaces — no screws required in many applications. Pre-punched mounting holes are also present if you need mechanical fastening on rough, porous, or high-traffic surfaces. For critical runs, using both adhesive and screws is the most secure approach.

Q: How many 6-ft sections come in a single purchase, and what is the carton quantity for bulk orders?

A: Each package contains 6 sections (36 linear feet total). The full carton quantity is 120 pieces, appropriate for stocking larger projects or multi-site deployments.

Q: Is the LDPH10WH6-A suitable for outdoor or wet-location use?

A: No. This raceway is white PVC designed for clean, climate-controlled interior environments. It carries no outdoor or wet-location rating. Select a raceway with an appropriate NEMA or IP wet-location rating for exterior or moisture-exposed installations.

Q: What Panduit fittings are compatible with the LDPH10WH6-A?

A: This raceway is part of the Pan-Way® LD surface raceway family. Compatible fittings include LD-series inside corners, outside corners, flat elbows, T-fittings, and end caps. It also terminates with Panduit Mini-Com Surface Mount Boxes and other LD-compatible surface mount outlet box solutions.

Q: What standards does the LDPH10WH6-A meet, and does it satisfy structured cabling pathway requirements?

A: It is UL5A Listed, meets UL94V-0 flammability and FT4 flame spread ratings, and meets TIA/EIA cabling standards for pathway compliance. UL5A is the recognized standard for nonmetallic surface raceways and satisfies most AHJ inspections in commercial occupancies. Note: UL5A listing alone does not confer plenum approval — verify plenum requirements separately if routing above a suspended ceiling in a return-air plenum.

Jerry Tildsen

The LDPH10WH6-A is the raceway I reach for on camera and access control retrofit installs in occupied institutional spaces — hospitals, schools, medical offices — where you need a code-compliant pathway that won't get kicked back by the AHJ and won't look like an afterthought on a finished wall. The 600 V power rating is what separates this from the purely low-voltage raceways; it gives you the option to route a power feed in the same channel as your PoE drop when the electrical layout makes a separate conduit run impractical. That said, always verify with the local AHJ before combining line voltage and data in one channel — NEC Article 800 has opinions.

Technical Highlights:

• 600 V rating: Enables combined power and signal routing in one 1.52" × 0.86" channel — eliminates a separate conduit for supplemental power on camera drops where PoE budget is tight.
• UL5A listing + UL94V-0/FT4: These three certifications together satisfy AHJ inspection in the vast majority of commercial occupancies. UL5A is the controlling standard for nonmetallic surface raceway — inspectors know it on sight.
• Factory adhesive + pre-punched holes: Dual fastening options on the same base. Adhesive gets the base on the wall in seconds on smooth drywall; pre-punched holes add mechanical insurance on CMU or plaster where adhesive alone won't hold long-term.

Deployment Considerations:

• The 39 mm × 22 mm cross-section handles a realistic cable fill for a single IP camera drop — Cat 6 plus a power conductor — but don't try to run multiple homerun cables in a single channel without checking fill. Budget 40–50% max fill for a run you expect to modify later.
• White PVC is not rated for outdoor or wet locations. If any portion of the run passes through an unheated vestibule, exterior wall cavity, or moisture-exposed area, you need a different raceway family entirely — this one will not hold up.

For a K-12 or healthcare retrofit project where the integrator needs 36 linear feet of code-compliant, power-rated surface pathway per camera location, the LDPH10WH6-A (often searched as LDPH10WH6 A) ships six sections per pack and 120 per carton — practical for staging material across a multi-room rollout without per-stick ordering overhead.
