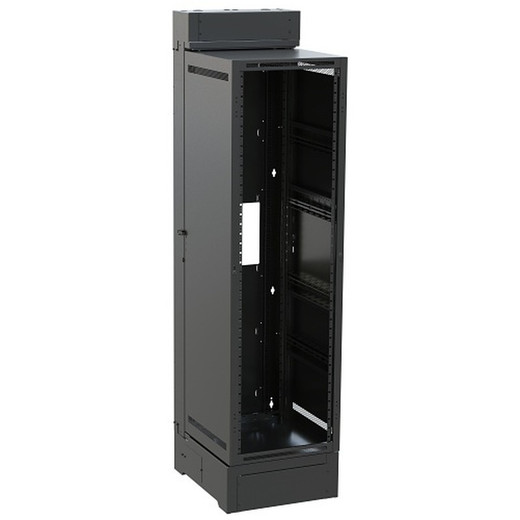

Middle Atlantic LD-1230DC 12-Space Side Rack for LD Series Desks

Overview

The Middle Atlantic LD-1230DC is a 12-rack-unit side rack cabinet engineered to pair with LD Series operator consoles and dispatch desks — the kind of installation you find in security operations centers, command and control rooms, and broadcast/surveillance monitoring suites where a separate equipment bay is needed without adding footprint to the primary work surface. At 23 inches wide and 32.24 inches deep, with a Dark Cherry wood finish, the LD-1230DC (often searched as LD 1230DC) delivers a furniture-grade enclosure for rack-mounted equipment that needs to live adjacent to the operator rather than across the room in a dedicated IT closet.

This is a purpose-built side rack, not a generic open-frame or server cabinet. If your deployment involves LD Series desk modules and you need a coordinated enclosure for NVRs, video management servers, UPS units, or patch panels within arm's reach of the operator, this is the correct unit. The matching Dark Cherry finish ensures visual consistency across the console installation — a detail that matters in high-visibility command environments where the furniture is as much a part of the room design as the displays.

Key Features

• 12 Rack Units (21" usable height): 12 RU provides enough vertical space for a compact NVR or DVR, a 1U UPS, a patch panel, and a KVM — the core of a self-contained monitoring station. The 21-inch usable height is the actual interior clearance after accounting for the enclosure structure, so size your gear against that number, not the nominal 12U count.
• 32.24-inch depth: Accommodates full-depth rack gear — most 1U and 2U servers, NVRs, and UPS units run between 16 and 30 inches deep. At 32.24 inches, this enclosure handles virtually any standard rack equipment without forcing compromise on component selection.
• 23-inch overall width: The LD-1230DC is designed to stand beside an LD Series desk module. The 23-inch width keeps the combined footprint tight — roughly two feet — so it integrates into a workstation bay without dominating the floor plan in a control room where every square foot is accounted for.
• Monitor mounting support: The enclosure includes monitor mounting capability, which matters in dispatch and SOC environments where a secondary display needs to be positioned off the side rack rather than mounted to the primary desk surface. This eliminates the need for a separate monitor arm floor stand in space-constrained layouts.
• Dark Cherry wood finish: The furniture-grade wood construction and Dark Cherry finish are matched to the LD Series desk line. This is relevant in environments where the installation faces end-user or client scrutiny — government EOCs, broadcast facilities, executive security operations — where a rack cabinet that looks like office furniture is a real requirement, not an aesthetic preference.
• 30-inch overall height: At 30 inches tall, the side rack sits at standard desk height, keeping the top surface accessible as additional workspace and ensuring the unit doesn't block sightlines across the operator's primary monitors.
• Wood material construction: The wood enclosure provides acoustic dampening benefits compared to metal cabinets — relevant when NVRs or servers with spinning-disk drives are located directly next to the operator. Fan and drive noise is attenuated rather than amplified as it would be in a bare-metal enclosure in the same position.

Integration and Compatibility

The LD-1230DC is designed specifically for the Middle Atlantic LD Series console and workstation line. It functions as a coordinated side enclosure to LD Series desk modules, matching finish, height, and design language. Before specifying this unit, confirm your LD Series desk configuration — the side rack is intended to complement specific desk widths and module combinations.

Inside the enclosure, standard 19-inch rack equipment mounts on conventional rack rails. Any rack-mount equipment — NVRs, video servers, UPS units, patch panels, KVM switches — installs using standard EIA-310 rack hardware. There are no proprietary mounting requirements for the rack interior itself.

For SOC and command-room buildouts that include network video recorders or local video management appliances, positioning the NVR in the LD-1230DC adjacent to the operator workstation keeps cabling runs short and reduces the distance between the operator and local storage — a consideration in high-availability monitoring environments where physical access to the NVR matters. Pair with a cable management solution inside the enclosure to keep the interior organized when multiple 1U devices are stacked across the 12 available rack spaces.

Given the 143-pound shipping weight, plan the installation with two-person lift in mind. Final installed weight will depend on equipment loaded into the rack — account for full rack weight when specifying floor load capacity in the control room or dispatch center.

Frequently Asked Questions

Q: How many rack units does the LD-1230DC provide, and what is the actual usable interior height?

A: The LD-1230DC provides 12 rack units of capacity. The usable interior height is 21 inches (53.3 cm) — this is the clear interior dimension after accounting for the enclosure structure. Size your rack equipment against 21 inches, not the nominal 12U count.

Q: Is the LD-1230DC compatible with standard 19-inch rack equipment?

A: Yes. The interior uses standard EIA-310 rack rail spacing, so any standard 19-inch rack-mount device — NVRs, servers, UPS units, patch panels, KVM switches — installs using conventional rack hardware. There are no proprietary mounting requirements inside the enclosure.

Q: Will the LD-1230DC fit full-depth servers and NVRs?

A: The enclosure depth is 32.24 inches (81.9 cm), which accommodates virtually all standard rack equipment. Most 1U and 2U servers and NVRs run between 16 and 30 inches deep, so full-depth gear fits without issue.

Q: Does the LD-1230DC include monitor mounting capability?

A: Yes. The LD-1230DC supports monitor mounting, making it practical for dispatch and SOC installations where a secondary display needs to be positioned off the side rack rather than on a separate stand or the primary desk surface.

Q: What finish does the LD-1230DC come in, and does it match the LD Series desk line?

A: The LD-1230DC ships in a Dark Cherry wood finish, matched to the Middle Atlantic LD Series console and workstation line. The wood material and finish are designed to coordinate visually with LD Series desk modules in the same installation.

Q: How heavy is the LD-1230DC, and do I need special installation planning?

A: The shipping weight is 143 lbs (64.9 kg). Plan for a two-person lift during installation. When fully loaded with rack equipment, total weight will be higher — verify that the floor in your control room or dispatch center is rated for the combined load before finalizing placement.

James Everett

The LD-1230DC is a unit I spec into LD Series console builds specifically when the operator needs rack equipment within arm's reach — not in a back-of-room IDF. The 32.24-inch depth is the number that unlocks full component flexibility: you're not forced into short-depth NVRs or specialty gear because the enclosure can't handle standard rack equipment. At 30 inches tall with monitor mounting built in, it sits flush with the desk surface and pulls secondary displays off the floor plan entirely.

Technical Highlights:

• 21-inch usable interior height: That's the real planning number — 21 inches of clear rack space across 12U. Enough for a 2U NVR, a 1U UPS, a patch panel, and a KVM without stacking conflicts, assuming you're not loading oversized 4U chassis.
• 32.24-inch enclosure depth: Full-depth clearance means no gear substitutions forced by enclosure constraints. Standard rack servers, enterprise-grade NVRs, and mid-depth UPS units all fit without modification.
• Dark Cherry wood construction: The wood enclosure isn't just aesthetic — in a side-by-side operator position, wood dampens drive and fan noise better than bare metal. That's a real comfort factor in 24/7 dispatch environments where the NVR sits two feet from the operator's ear.

Deployment Considerations:

• Confirm the specific LD Series desk module configuration before ordering — the LD-1230DC is designed to coordinate with LD Series desks by finish and dimension, and mismatched module combinations can create height or alignment issues at the desk-to-rack joint.
• At 143 lbs shipping weight, plan for a two-person lift and verify floor load ratings before final placement — a fully loaded 12U rack in a wood enclosure can easily reach 250–300 lbs total depending on equipment installed.

For government EOC buildouts and broadcast security operations centers where the installation is client-facing and the furniture appearance is part of the acceptance criteria, the LD-1230DC solves the problem of making a functional equipment rack look like it belongs in the room — not like it was wheeled in from the server closet.
