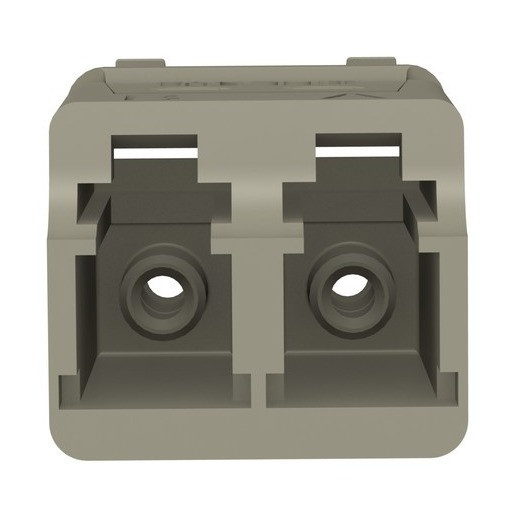

Panduit FADSLCZEI-L LC Duplex Fiber Optic Adapter Module
Overview
The Panduit FADSLCZEI-L is a Mini-Com® LC duplex fiber optic adapter module designed for OM1 multimode fiber deployments. Packaged in quantities of 50 per pack, it delivers a field-proven termination point for LANs, public networks, storage area networks, and fiber-to-the-desk runs where a reliable, standards-compliant connection is non-negotiable. If you are specifying structured cabling for a commercial building, campus backbone, or enterprise SAN, this adapter fits into the fiber optic systems framework without custom hardware.
Key Features
- OM1 Multimode Compatibility: Matched to 62.5/125µm OM1 glass fiber — the multimode standard still common in legacy enterprise and campus installations. Deploying this adapter into an existing OM1 plant means no requalification of the fiber run itself.
- LC Duplex Interface: The LC form factor is the dominant choice in high-density patching environments. Duplex configuration supports simultaneous transmit and receive on a single adapter footprint, reducing panel real estate compared to dual simplex approaches.
- Mini-Com® Module Form Factor: Designed for Panduit's Mini-Com® patch panel and faceplate ecosystem. Drop-in installation into any Mini-Com outlet — no tools required for the module itself, which cuts labor time on large port-count deployments.
- Exceeds TIA/EIA-568-B.3: Meeting the baseline is table stakes; exceeding it means insertion loss and return loss margins are tighter than the standard floor. In high-port-count installations, those margins accumulate across patch points and contribute to link budget headroom.
- RoHS Compliant: Meets Restriction of Hazardous Substances requirements — relevant for projects subject to environmental compliance mandates, government procurement specs, or EU market requirements.
- Zirconia Ceramic Sleeve (ZEI): The zirconia ceramic alignment sleeve delivers consistent ferrule alignment and low insertion loss over repeated mate/unmate cycles. In an IDF or MDF closet where patch cords get swapped regularly, ceramic outlasts phosphor bronze in long-term alignment stability.
- 50-Unit Pack Quantity: Priced and packaged for installation scale — 50 adapters per pack, 100 per carton. Ordering in pack quantities reduces per-port cost on large structured cabling projects versus single-unit procurement.
Integration and Compatibility
The FADSLCZEI-L (often searched as FADSLCZEI L) is engineered for the Panduit Mini-Com® modular platform. It installs into Mini-Com faceplates, surface mount boxes, and patch panels that accept standard Mini-Com modules. This keeps your network infrastructure components within a single ecosystem, simplifying spares management and future adds. For fiber pathway planning and port density decisions, consult a fiber cabling guide before committing panel layouts on large floor-plate deployments.
Frequently Asked Questions
Q: What fiber type is the FADSLCZEI-L compatible with?
A: The FADSLCZEI-L is designed for OM1 multimode fiber (62.5/125µm). It is not specified for OM2, OM3, OM4, or singlemode applications.
Q: What standards does the FADSLCZEI-L meet?
A: It is RoHS compliant and exceeds TIA/EIA-568-B.3 requirements for fiber optic adapters.
Q: How many adapters come in one package?
A: Each package contains 50 adapter modules. The full carton quantity is 100 units.
Q: What panel system does the FADSLCZEI-L fit into?
A: The FADSLCZEI-L is part of the Panduit Mini-Com® modular system. It installs into Mini-Com compatible faceplates, patch panels, and surface mount boxes.
Q: What does the ZEI designation indicate?
A: ZEI refers to the zirconia ceramic alignment sleeve inside the adapter. Zirconia ceramic provides tighter ferrule alignment tolerances and greater durability over repeated insertions compared to phosphor bronze sleeves.
Q: Is the FADSLCZEI-L suitable for storage area network (SAN) cabling?
A: Yes. Panduit lists SAN connectivity as a supported application alongside LANs, public networks, and fiber-to-the-desk runs — provided the installed fiber plant is OM1.
The FADSLCZEI-L is the spec I reach for when a project is built on an existing OM1 plant and the customer is standardized on the Mini-Com® platform. The zirconia ceramic sleeve is the detail that matters most here — on an IDF with 48+ ports that get repaired and re-patched over years, ceramic alignment holds insertion loss tighter across the lifecycle than bronze, and that consistency is what keeps link budgets from degrading silently.
Technical Highlights:
- Zirconia Ceramic Sleeve: Maintains ferrule alignment through repeated mate/unmate cycles — relevant in any closet where patch cords rotate frequently and you cannot afford incremental loss accumulation.
- TIA/EIA-568-B.3 Exceedance: Exceeding the standard (not just meeting it) means you have loss headroom built in across every patch point — a real factor when you are counting link budget on a longer OM1 run.
- 50-Unit Pack / 100-Unit Carton: The pack structure is sized for real installation jobs — a single 24-port panel takes half a pack; a full cabinet buildout fits in one carton, which simplifies procurement and reduces per-port cost at scale.
Deployment Considerations:
- Confirm your existing fiber plant is OM1 (62.5/125µm) before specifying — this adapter is not rated for OM3/OM4 or singlemode, and mixing adapter types in a hybrid plant is a common source of undiagnosed loss.
- The FADSLCZEI-L is designed for the Mini-Com® module footprint specifically; it will not drop into non-Mini-Com faceplates or panels, so verify your hardware ecosystem before ordering at volume.
Best fit: enterprise horizontal cabling upgrades or SAN patch field builds on established OM1 infrastructure where the Mini-Com® platform is already deployed and consistency across the structured cabling plant matters more than upgrading fiber grade.
