Panduit CMDSAGLCZBL Mini-Com LC Duplex APC OS2 Fiber Adapter Module
Overview
The Panduit CMDSAGLCZBL is a small form factor (SFF) Mini-Com® LC duplex adapter module designed for OS2 single-mode fiber infrastructure. It couples two LC duplex connectors within a single Mini-Com module space, making it a dense, clean solution for structured cabling panels and wall plates where port real estate matters. The module ships with an APC (angled physical contact) green-keyed fiber adapter and a black module housing, so it's visually distinguishable from UPC ports at a glance — a small but meaningful detail in busy IDF closets or floor-box installations.
With integrated panel retention clips, the CMDSAGLCZBL snaps securely into any Mini-Com faceplate, surface box, or patch panel without tools. It is TIA/EIA-605 FOCIS-10 compatible, ensuring the optical interface geometry meets the industry standard for low-loss LC connectivity.
Key Features
- APC Green Adapter with Zirconia Split Sleeves: APC connectors reduce back-reflection to levels below -65 dB — critical for analog RF overlay, passive optical networks, and long-haul single-mode runs where UPC return loss isn't sufficient. The zirconia ceramic split sleeves deliver consistent, repeatable ferrule alignment, maintaining low insertion loss across hundreds of mate/unmate cycles. Zirconia's hardness also resists wear that plastic or bronze sleeves accumulate over years of patching activity.
- OS2 Single-Mode Fiber Compatibility: OS2 glass (9/125 µm) supports spans well beyond the reach of any OM-series multimode — commonly 10 km and beyond at 10G, and up to 40 km in some transceiver configurations. If you're connecting buildings, linking server rooms across a campus, or feeding a fiber-to-the-desk run from a remote IDF, OS2 is the correct fiber type and this module is built for it.
- Duplex LC in One Mini-Com Module Space: Both TX and RX in a single module slot means you preserve panel density. A 24-port Mini-Com patch panel can terminate 24 duplex LC connections — 48 individual fibers — without giving up a single extra space to adapter hardware.
- Integrated Panel Retention Clips: Tool-free snap-in installation into any Mini-Com-compatible outlet, faceplate, or patch panel. No fasteners, no adhesive. The clips hold the module mechanically secure even in high-vibration environments like raised-floor data centers or equipment rooms with active cooling systems.
- TIA/EIA-605 FOCIS-10 Compatible: Conformance to this standard ensures the physical contact geometry, ferrule dimensions, and sleeve tolerances are verified against an industry benchmark — not just a proprietary spec. This matters when you're mixing vendor-sourced patch cords with Panduit infrastructure, as the mating interface is standardized.
- Exceeds TIA/EIA-568-B.3 Requirements: 568-B.3 defines optical performance minimums for structured cabling components. Exceeding this standard means the insertion loss and return loss figures clear the bar used to certify enterprise LAN infrastructure — relevant when a field tech runs a fiber certifier after installation and the report needs to pass.
- RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive. Required for projects subject to environmental compliance documentation, and standard practice for enterprise procurement in most verticals.
- Application Versatility: Documented for LANs, public networks, storage area networks (SANs), and fiber-to-the-desk deployments. The SAN use case is worth noting — APC connectors are specifically preferred in SAN environments where coherent optical signals require tighter back-reflection control than a standard UPC adapter provides.
Integration & Compatibility
The CMDSAGLCZBL installs into any Mini-Com® module-compatible housing — Panduit's full line of faceplates, surface-mount boxes, patch panels, and wall outlets that accept the Mini-Com form factor. It is designed exclusively for OS2 single-mode fiber and APC-polished LC connectors. Do not pair it with UPC-polished LC connectors: the 8-degree angled ferrule on APC connectors will physically seat differently and produce elevated insertion loss and poor return loss if mated with a flat UPC ferrule. APC ports are keyed green precisely to prevent this mistake in the field, but it bears stating explicitly in any deployment plan.
For environments running a mix of single-mode and multimode, note that this module is OS2-only. Multimode LC connections require a separate OM3 or OM4 module with UPC sleeves — maintain visual separation (aqua/violet OM3/OM4 vs. green APC) to avoid cross-connections. The module ships in a package quantity of one, with a carton quantity of 10 for project-volume procurement.
What's in the Box

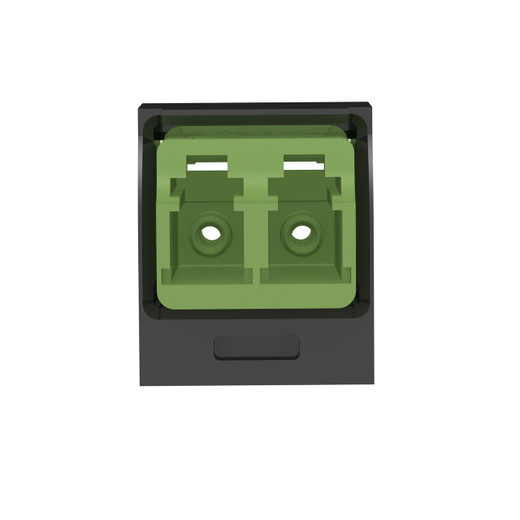

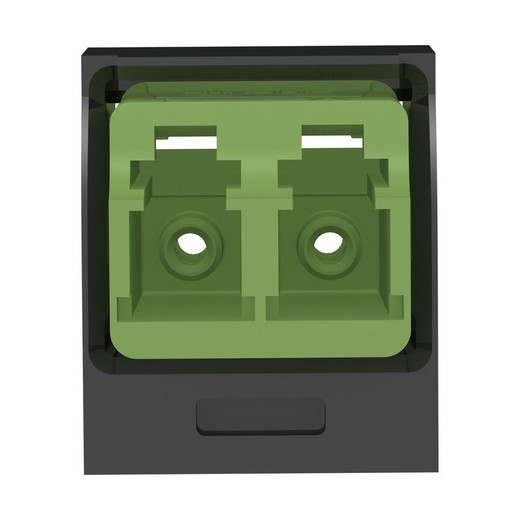

- 1x Panduit CMDSAGLCZBL Mini-Com LC Duplex APC OS2 Adapter Module (black housing, green APC adapter)
Frequently Asked Questions
Q: Is the CMDSAGLCZBL compatible with UPC LC connectors?
A: No. The CMDSAGLCZBL is an APC (angled physical contact) adapter with green-keyed housing. It is designed for APC-polished LC connectors only. Mating APC and UPC ferrules degrades return loss and increases insertion loss — keep APC and UPC ports segregated. The green color-coding is your visual indicator in the field.
Q: What fiber type does the CMDSAGLCZBL support?
A: OS2 single-mode fiber (9/125 µm). This module is not intended for OM1, OM2, OM3, or OM4 multimode fiber. If you need multimode LC connectivity in Mini-Com, you'll need a separate module with UPC sleeves and the appropriate multimode fiber classification.
Q: Does the CMDSAGLCZBL fit in standard Mini-Com faceplates and patch panels?
A: Yes. It is a Mini-Com® form factor module with integrated panel retention clips that snap into any Mini-Com-compatible faceplate, surface-mount box, or patch panel — no tools required.
Q: What standards does the CMDSAGLCZBL meet?
A: It is RoHS compliant, TIA/EIA-605 FOCIS-10 compatible, and exceeds TIA/EIA-568-B.3 optical performance requirements for structured cabling components.
Q: What applications is the CMDSAGLCZBL suited for?
A: Per Panduit's documentation, it is designed for LANs, public networks, storage area networks (SANs), and fiber-to-the-desk applications. The APC polish is specifically advantageous in SAN and coherent optical environments where back-reflection control is a requirement.
Q: What is the package quantity for the CMDSAGLCZBL?
A: The CMDSAGLCZBL ships as a single module (package quantity 1). Carton quantity is 10 for volume orders.
The CMDSAGLCZBL is one of those components that doesn't get much attention until the fiber certifier fails or someone plugs a UPC patch cord into an APC port — at which point it gets everyone's attention. The APC green adapter with zirconia split sleeves is the right spec for OS2 single-mode runs where back-reflection below -65 dB is a real requirement, not a marketing footnote.
Technical Highlights:
- Zirconia Split Sleeves: Ceramic zirconia alignment sleeves maintain precise 9/125 µm ferrule registration across repeated mating cycles — measurably more durable than bronze alternatives over years of active patching in a busy MDF or IDF.
- TIA/EIA-568-B.3 Exceeding Performance: This means the module's optical parameters — insertion loss, return loss — clear the structured cabling certification threshold, so a post-installation fiber certification test on a completed link has one fewer variable to worry about.
- APC Keying (Green Housing): The green color-code is a physical and visual safeguard. In multi-fiber panels mixing OS2 APC and multimode UPC ports, the green module immediately signals to any tech — experienced or new — that APC-only patch cords go here.
Deployment Considerations:
- This module is OS2 single-mode only. If your panel serves a mix of single-mode backbone and multimode horizontal runs, plan your layout so APC (green) and UPC modules are in clearly segregated patch panels or at minimum clearly labeled rows — color alone isn't enough when panels are dense and lighting is poor.
- APC connectors physically cannot mate cleanly with UPC connectors. A mismatch won't destroy hardware, but insertion loss spikes and return loss degrades immediately. If you're inheriting an existing fiber plant, verify connector polish before ordering this module — a quick visual with a fiber inspection scope before cutting any purchase orders saves a field call.
This module is the right fit for SAN fabric connections, coherent DWDM patch points, and fiber-to-the-desk OS2 runs in enterprise campuses where APC is the specified connector type and Mini-Com is the faceplate standard already in place.
