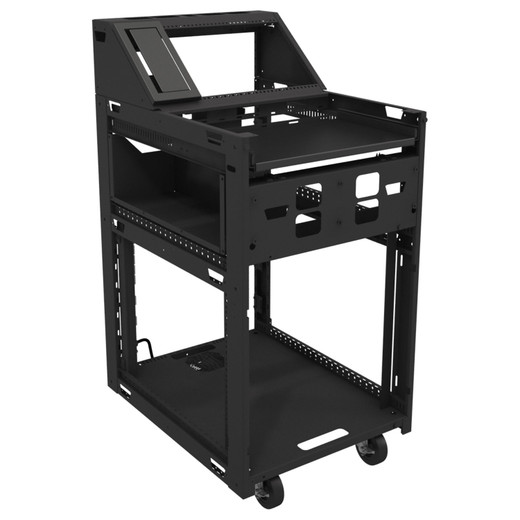

Middle Atlantic L5 Series Turret Frame - L5-TURFR23LDW

Middle Atlantic L5-TURFR23LDW 12RU Turret Rack Frame

Overview

The Middle Atlantic L5-TURFR23LDW is a 12RU turret-style rack frame built for command-and-control consoles, security operations centers, and dispatch workstations where operators need integrated equipment mounting, a dedicated worksurface, and proper airflow in a single purpose-built chassis. At 21.93 in wide, 28.31 in deep, and with 21 in of usable interior height across 12 rack units, this frame gives integrators a TAA-compliant, USA-manufactured structural foundation for operator-facing rack builds — without improvising around a standard open-frame rack that was never designed for a seated workstation environment.

If you're specifying console furniture for a rack enclosure or SOC buildout and need a frame that ships TAA-compliant and domestically sourced, the L5-TURFR23LDW (often searched as L5 TURFR23LDW) belongs on your short list alongside the broader Middle Atlantic technical furniture and rack infrastructure catalog.

Key Features

• 12 RU of usable rack space (21 in usable height): Twelve rack units fits a practical mix of a video matrix, KVM, power distribution, and patch gear without stacking two enclosures. The 21-inch usable height measurement is the number to use when laying out your equipment schedule — not the overall chassis height.
• 23.63 in usable depth: Full-depth 1U and 2U gear installs without rear-clearance compromises. That 23.63 in clear run accommodates standard 1U appliances, NVR chassis, and managed PoE switches with room for cable management behind the rear rail.
• 10-32 rack rail threading: Standard 10-32 tapped rails accept the full universe of rackmount hardware — no cage nuts, no adapters. Every piece of rackmount security and AV equipment you're specifying assumes 10-32 unless the datasheet says otherwise, so this is the correct rail type for mixed-vendor installs.
• Integrated monitor mounting: The frame supports monitor mounting directly, eliminating a separate VESA arm or bolt-on monitor stand. For operator consoles in a surveillance or dispatch environment, this keeps the display at the correct ergonomic position without adding a secondary mounting structure that complicates the furniture footprint.
• Turret worksurface included: The built-in turret worksurface gives operators a stable, integrated desk surface at the console — critical for keyboard/mouse positioning and documentation workflows in a 24/7 monitoring station. This is what distinguishes a turret frame from a plain open-frame rack; the worksurface is part of the structure, not an afterthought.
• 70 CFM airflow capacity: The frame is rated for 70 CFM of airflow, which matters in a sealed console environment where rack gear generates heat. Size your active cooling (fan trays, blanking panels) to that budget. At 70 CFM you have room for moderate thermal loads — a 1U NVR, a KVM, a power strip, and a patch panel — but verify the heat dissipation specs of your densest components before loading all 12U.
• TAA-compliant, USA-manufactured: Federal Ops Country of Origin is USA and the unit is TAA-compliant, meaning it qualifies for GSA Schedule purchases and federal/state government projects that mandate Trade Agreements Act compliance. This is a hard requirement on many government SOC and dispatch console specs — confirm with your contracting officer, but the L5-TURFR23LDW clears the TAA bar.
• Not available internationally: This SKU is a domestic (US) product only. If you're specifying for an international site, verify with Middle Atlantic for region-appropriate variants before quoting.

Integration and Compatibility

The L5-TURFR23LDW is designed to work within the broader console furniture and workstation ecosystem. Its 10-32 rails accept standard rackmount equipment from any manufacturer. The integrated monitor mounting point is compatible with Middle Atlantic monitor mounting hardware from their L5 series accessories — confirm specific monitor arm part numbers against the L5 series accessory matrix when specifying displays heavier than standard single-monitor loads.

For power distribution inside the frame, standard 1U rack-mount PDUs sized to the 12RU bay will fit within the 23.63 in usable depth. Plan cable management carefully: with monitor mounting and a worksurface integrated, cable routing to the operator position needs to account for the turret geometry. Middle Atlantic's own cable management accessories are engineered to the L5 series dimensions and are the lowest-risk fit.

At 115 lbs shipping weight, the frame requires two-person installation and should be placed on a level, load-bearing floor surface. Factor the fully-loaded equipment weight (frame + rack gear + monitor) into your floor loading calculation for raised-floor or modular floor environments common in SOC buildouts. The 21.93 in width is a key dimension for multi-console row planning — confirm aisle width and console-to-console spacing against your facility drawing before finalizing quantities.

Frequently Asked Questions

Q: Is the Middle Atlantic L5-TURFR23LDW TAA-compliant?

A: Yes. The L5-TURFR23LDW is TAA-compliant and manufactured in the USA, making it eligible for GSA Schedule and federal procurement projects that require Trade Agreements Act compliance.

Q: What rack rail type does the L5-TURFR23LDW use?

A: The frame uses standard 10-32 tapped rack rails. No cage nuts are required — standard 10-32 rackmount screws work with any compatible rackmount equipment.

Q: How much usable rack space does the L5-TURFR23LDW provide?

A: It provides 12 rack units (RU) of usable space, with a usable interior height of 21 inches (53.3 cm).

Q: Does the L5-TURFR23LDW include a monitor mount?

A: Yes. Monitor mounting is built into the frame. A separate VESA arm or bolt-on stand is not required, though you should confirm compatibility with your specific monitor weight and VESA pattern against Middle Atlantic's L5 series accessory specifications.

Q: What is the usable depth of the L5-TURFR23LDW?

A: The usable depth is 23.63 inches (60 cm), which accommodates standard full-depth 1U and 2U rackmount equipment.

Q: Is the L5-TURFR23LDW available for international orders?

A: No. This SKU is designated for domestic US sale only. Contact Middle Atlantic directly for international product availability.

Eden Phillips

The L5-TURFR23LDW is the frame I'd specify first for a government or municipal SOC console build where TAA compliance is non-negotiable and the integrator needs a single structure that handles racking, monitor positioning, and the operator worksurface in one piece. The 70 CFM airflow rating is the spec that often gets overlooked at the quote stage — in an enclosed console environment, that's your thermal ceiling, and it shapes which gear you can actually install in those 12RU.

Technical Highlights:

• 23.63 in usable depth: Fits full-depth 1U appliances and NVR chassis without rear-clearance compromises — a detail that matters when you're loading a mix of security and AV gear into the same bay.
• 10-32 tapped rails: No cage nuts, no adapters — every standard rackmount device installs directly, which accelerates on-site commissioning on a multi-unit console row.
• TAA-compliant, USA-made: Clears the federal procurement bar out of the box. For GSA Schedule or government contract jobs, this is a hard requirement that eliminates a potential bid disqualification.

Deployment Considerations:

• At 115 lbs shipping weight, plan for two-person delivery and installation. On raised-floor SOC environments, confirm floor load ratings before positioning the fully loaded console — frame plus rack gear plus monitor adds up fast.
• The 70 CFM airflow rating is a ceiling, not a guarantee. If you're loading high-wattage appliances into all 12RU, add active fan trays and account for blanking panel placement — passive convection alone won't be sufficient in a closed console form factor.

For a 24/7 dispatch or security operations center buildout requiring TAA-compliant infrastructure, the L5-TURFR23LDW delivers a structurally complete operator station in a single frame — the right call when federal procurement rules and thermal discipline both have to be satisfied at the same console.
