Middle Atlantic L5 Series Turret Frame L5-TURFR-43LDW 43IN W 2 Bays

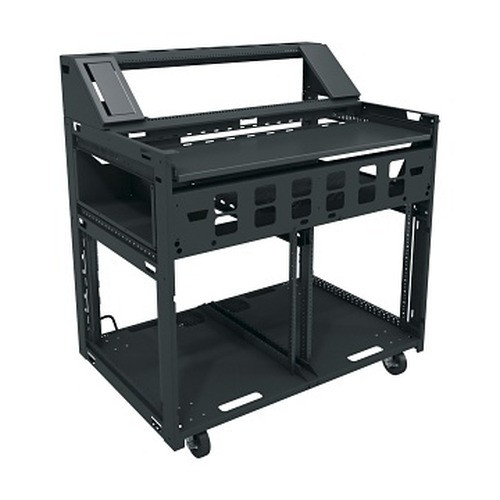

Middle Atlantic L5-TURFR-43LDW 43-Inch 2-Bay Turret Rack Frame

Overview

The Middle Atlantic L5-TURFR-43LDW is a 43-inch wide, dual-bay turret frame built for integrated AV and security control rooms where you need monitor mounting, structured rack space, and managed airflow in a single furniture-grade enclosure. At 12 RU of rack capacity with a 23.63-inch usable depth, it accommodates standard 19-inch rack gear — NVRs, video management servers, network switches — while keeping the operator display mounted at eye level. The 140 CFM airflow rating means active heat dissipation is factored into the frame design, reducing the risk of thermal throttling in a continuously staffed dispatch or security operations environment. TAA compliant and manufactured in the USA, making it eligible for federal and government procurement without additional sourcing justification.

Compatibility

Designed for the Middle Atlantic L5 Series technical furniture system. Pairs with L5 Series worksurfaces, side panels, and support columns to build out a complete operator workstation or multi-bay control room console. The 10-32 rack rail type accepts standard 10-32 threaded cage nuts and rack hardware, compatible with virtually all 19-inch rackmount equipment — including NVR/DVR chassis from Hanwha, Hikvision, Axis, and i-PRO, as well as rackmount PoE switches and patch panels. Monitor mounting support is built in, accommodating display arms and VESA-mount brackets that attach to the turret worksurface structure. Not available for international shipping — domestic deployments only.

Installation Notes

Shipping weight is 162 lbs — plan for two-person delivery and positioning. Usable interior height is 21 inches (12 RU), and usable depth is 23.63 inches, so verify equipment depth before spec'ing deep chassis. Overall width is 41.5 inches at the frame; confirm bay-to-bay clearance when integrating with adjacent L5 modules in a multi-position console run.
