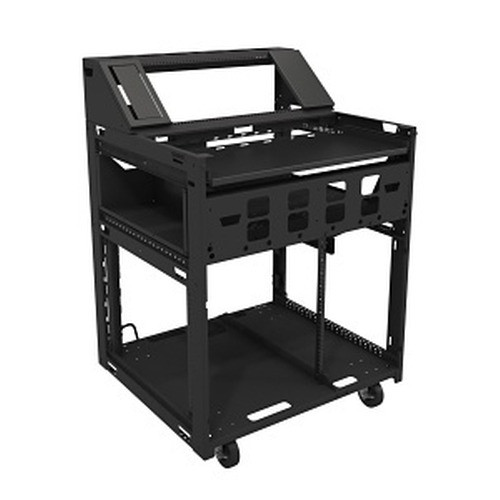

Middle Atlantic L5 Series Turret Frame L5-TURFR-33LDW 33IN W 1.5 Bays

Middle Atlantic L5-TURFR-33LDW Turret Rack Frame, 33 In Wide, 12RU

Overview

The Middle Atlantic L5-TURFR-33LDW is a 33-inch-wide, 12RU open turret frame from the Middle Atlantic L5 Series — engineered for operator workstation and command-center deployments where monitor positioning, airflow, and rackmount equipment access all need to coexist in a single furniture footprint. At 31.5 in wide and 28.31 in deep, the L5-TURFR-33LDW provides 23.63 in of usable depth — enough to house full-depth 1U/2U recorders, switches, or UPS units without forced cable compression at the rear. The integrated turret worksurface positions monitors directly above the rack bay, consolidating display and equipment into one rack enclosure solution rather than a separate desk-plus-rack arrangement. TAA-compliant and manufactured in the USA, making it eligible for federal, state, and defense procurements where country-of-origin requirements apply.

Compatibility

Designed for the Middle Atlantic L5 Series furniture system at the 1.5-bay, 33-inch-width configuration. The 10-32 rack rail type is compatible with standard EIA-310 rackmount equipment used throughout NVR and video management server deployments — including 1U/2U appliances from Axis, Hanwha, Genetec, and Milestone-based servers. Monitor mounting support accommodates flat-panel displays typically deployed in security operations centers and dispatch environments. The rack accessory ecosystem within the L5 Series (shelves, blanks, cable management) integrates directly into this frame's 12RU capacity. Not available for international shipment.

Installation Notes

Integrated cooling delivers 70 CFM of managed airflow — sufficient for moderate-density 12RU loads, but size your equipment heat output against this figure before populating all 12U with high-draw gear like GPU-based analytics appliances. Shipping weight of 133 lbs requires two-person handling and appropriate freight planning; confirm floor loading and aisle clearance before delivery. Usable height of 21 in (12RU) within a 28.31 in overall depth chassis — account for rear cable egress when positioning against a wall. Verify monitor arm or display mount compatibility with the integrated turret worksurface prior to ordering if a specific monitor mount is already selected.
