Kantech SK-CE-1M-SCM Access Control Starter Kit

Overview

The Kantech SK-CE-1M-SCM is a complete access control starter kit that bundles the KT-1 one-door controller, P225XSF ioProx card reader, and EntraPass Corporate Edition software (v6.02 and higher). It solves the problem of cobbling together compatible hardware and software separately — everything needed to deploy a functioning single-door access control system arrives pre-selected and tested. The kit targets small to medium-sized enterprises standing up access control for the first time or integrators adding a controlled entry point to an existing facility without ordering individual components.

What's Included

The kit ships with KT-1 controller hardware, P225XSF ioProx card reader, EntraPass Corporate Edition security management software, all required peripherals, and credential cards. All components are also sold separately, so expansion or replacement is straightforward if your deployment grows beyond one door.

Compatibility

The SK-CE-1M-SCM integrates with EntraPass Corporate Edition software v6.02 and higher, supporting centralized management of credentials, cardholder records, and access schedules across multiple sites. The kit supports ioProx credential format natively; additional credential types can be accommodated through reader configuration. The TCP/IP communication protocol allows the KT-1 controller to integrate into existing IP-based security networks without requiring separate serial gateways. The 12VDC power requirement suits standard access control power supplies and can be sourced via Power over Ethernet (PoE) where network infrastructure supports it.

Installation Notes

The KT-1 is engineered for plug-and-play deployment by installers — minimal custom wiring or software configuration is required for single-door installations. The kit supports both single-gang wall mount (KT-1) and cabinet mount (KT1-PCB) configurations, allowing flexibility in mounting location and aesthetic integration. Ensure 12VDC power supply capacity; the controller draws minimal current on standby but peak draw depends on reader and strike solenoid specifications. All interconnects are documented in the included hardware documentation.

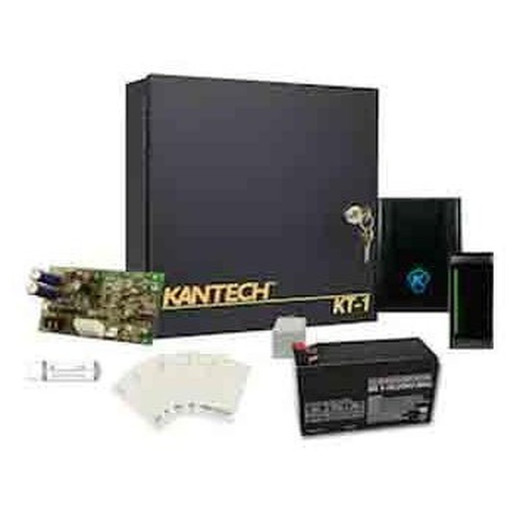

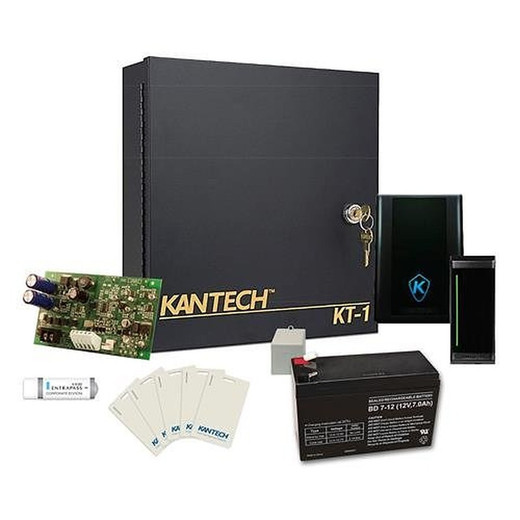

What's in the Box

• 1x KT-1 one-door access control controller
• 1x P225XSF ioProx card reader
• EntraPass Corporate Edition software (v6.02 or higher)
• Credential cards
• All required peripherals and connectors
