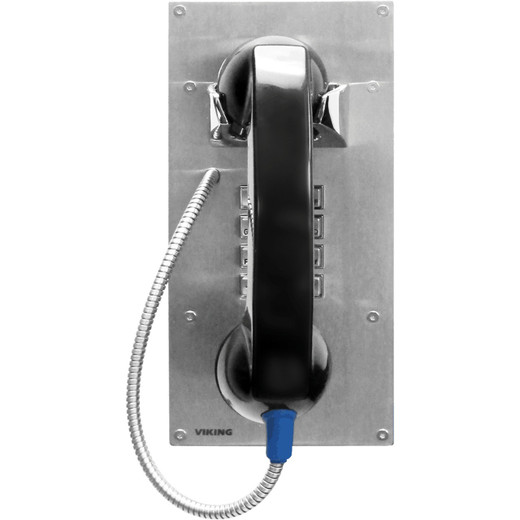

Viking K-1900-812L with Enhanced Weather Protection - K-1900-812L-EWP

Viking Electronics K-1900-812L-EWP Hot-Line Panel Phone with Enhanced Weather Protection

Overview

The Viking Electronics K-1900-812L-EWP is a SIP 2.0 hot-line panel phone engineered for outdoor and industrial environments where a standard handset would fail within a season. Built on a 14-gauge 316 stainless steel panel with permanent laser-etched graphics, this unit is designed to IP66 standards — meaning pressurized water jets and complete dust ingress won't interrupt service. If you're commissioning entry points at a manufacturing facility, a transit hub, a correctional institution, or a remote utility site, the K-1900-812L-EWP is purpose-built for exactly that kind of punishment. It draws power and data from a single PoE network connection — no separate power supply, no extra conduit run — which matters on gated sites where infrastructure access is limited.

At its core, this is a Viking Electronics intercom and panel phone that integrates directly into any SIP 2.0 PBX or hosted VoIP system. The 12-inch armored handset cable includes an internal stainless steel lanyard — both for vandal resistance and to prevent cable stress on installations subject to repeated use or deliberate abuse. The heavy-duty metal keypad and metal cradle complete a unit that won't degrade from UV exposure, freeze-thaw cycling, or casual vandalism.

Key Features

• IP66-Rated Enhanced Weather Protection: Designed to meet IP66 standards, this phone handles direct water jets and full dust ingress without degradation. Pair that with a -40°F to 140°F (-40°C to 60°C) operating range and up to 100% humidity tolerance, and you have a device that survives both desert heat and arctic cold — a specification range that eliminates most weather-related service calls on outdoor installations.
• 316 Stainless Steel, 14-Gauge Panel: Grade 316 stainless resists chloride corrosion, which matters on coastal installations and food-processing facilities where 304-grade hardware corrodes prematurely. Laser-etched graphics won't peel or fade, keeping user-facing labels legible for the life of the installation.
• 12-Inch Armored Cable with Internal Stainless Steel Lanyard: The armored handset cable resists cutting and fraying; the internal lanyard prevents the weight of the handset from fatiguing the cable at the entry point — a failure mode that ends the life of unprotected cables in high-use environments within months.
• PoE Class 2 Power (IEEE 802.3af, under 6.5W): Draws under 6.5 watts from a standard 802.3af PoE port, so it won't strain a switch's power budget even on a densely populated network switch. A single Cat5e/Cat6 run handles both power and data — eliminates the need for local AC power at the entry point.
• SIP 2.0 (RFC 3261) with G.722 Wideband Audio: Native SIP 2.0 integration means this phone registers directly to any standards-compliant IP PBX — no proprietary gateway required. G.722 wideband codec support delivers noticeably clearer voice compared to G.711 narrowband, which is a practical benefit on noisy loading docks or sites with ambient machinery.
• 250 Programmable + 250 Rollover Numbers: Supports up to 250 programmable call destinations and 250 rollover numbers from the keypad — enough for a mid-size facility to assign direct extensions to individual departments, with automatic failover if a primary line is busy or unreachable.
• 1,000 Keyless Entry Codes + 1,000 Card Numbers, 26-Bit Wiegand: Integrated access control via 26-bit Wiegand input supports up to 1,000 PIN codes and 1,000 proximity card numbers. On sites where a separate access control panel handles door strikes, the Wiegand output feeds directly into the panel without a converter. Eliminates the need for a separate entry keypad at the door.
• 14 Gel-Filled Butt Connectors Included: The package includes 14 gel-filled butt connectors — weatherproof splice connectors that resist moisture wicking into the cable terminations. On outdoor runs, this detail prevents the slow connection degradation that causes intermittent audio issues months after commissioning.
• 100BASE-Tx Ethernet, Single RJ45 Connection: One RJ45 port handles the entire installation — voice, data, and PoE power. On sites where the path to the entry point is already conduit-run with Cat6, this unit drops in without any additional wiring infrastructure.

Integration and Compatibility

The K-1900-812L-EWP (often searched as K 1900 812L EWP) is a standards-driven SIP device. It registers to any SIP 2.0-compliant IP PBX or hosted UCaaS platform — Cisco, Avaya, FreePBX, 3CX, Asterisk, and similar systems. G.711u, G.711a, and G.722 codec support covers virtually every VoIP infrastructure in active deployment. The 26-bit Wiegand output connects to most commercial access control panels for relay-driven door strike control, making this a two-function device — intercom and access entry — on a single network drop. IEEE 802.3af PoE compliance means any current-generation managed or unmanaged PoE switch will power it without special configuration. Regulatory compliance covers CE, FCC Part 15, and ICES-003 Class A, supporting deployment in the US, Canada, and the EU.

Frequently Asked Questions

Q: What weather rating does the K-1900-812L-EWP carry, and does it handle standing water or submersion?

A: The K-1900-812L-EWP is designed to meet IP66 standards, which covers complete dust ingress protection and resistance to powerful water jets from any direction. IP66 does not cover submersion — if the installation point is subject to flooding or standing water, you would need an IP67 or IP68-rated device. For rain, pressure washing, and similar outdoor exposure, IP66 is sufficient.

Q: Does this phone require a separate power supply?

A: No. The K-1900-812L-EWP is powered via IEEE 802.3af PoE (Class 2, under 6.5W) over the single RJ45 connection. A standard PoE switch or PoE injector provides both power and network connectivity — no local AC power or separate power supply is required at the mounting location.

Q: What PBX or VoIP systems is this compatible with?

A: The phone implements SIP 2.0 (RFC 3261) and supports G.711u, G.711a, and G.722 audio codecs. It will register to any SIP 2.0-compliant IP PBX or hosted VoIP platform. Proprietary gateway adapters are not required.

Q: How does the access control integration work?

A: The K-1900-812L-EWP includes a 26-bit Wiegand input that supports up to 1,000 keyless entry PIN codes and up to 1,000 proximity card numbers. The Wiegand output connects directly to compatible access control panels for door strike or relay control, so this unit can serve as both an intercom and an entry credential reader on a single installation.

Q: What is the operating temperature range, and is this suitable for cold-storage or northern outdoor deployments?

A: Operating temperature is rated -40°F to 140°F (-40°C to 60°C) with humidity tolerance up to 100%. This range covers most cold-storage facilities, northern US/Canadian outdoor installations, and desert environments without any supplemental heating or cooling enclosure.

Q: What does the Enhanced Weather Protection (EWP) package add versus the standard model?

A: The EWP configuration adds the IP66-rated weather protection housing with a 52- to 57-inch (132–145 cm) handset cable designed for the weatherproof enclosure. Overall depth increases slightly — 5.61 inches with the rough-in box versus standard. The 12-inch armored cable with internal stainless steel lanyard is part of the K-1900-812L platform and present on both the standard and EWP variants.

James Everett

The detail I keep coming back to on the K-1900-812L-EWP is the -40°F floor on operating temperature combined with 100% humidity tolerance — that combination is genuinely rare in SIP panel phones and it's what separates a device you can install at an unheated northern gate or a cold-storage facility entrance from one that will fail its first January. Most SIP entry phones are rated to 14°F or 32°F; this one goes to -40°F without a supplemental heater, which eliminates an entire line item on cold-climate installations.

Technical Highlights:

• 26-Bit Wiegand Integration: Supports up to 1,000 card numbers and 1,000 PIN codes via 26-bit Wiegand — wires directly to industry-standard access control panels without a protocol converter, making this a two-function node (intercom + credential reader) on one Cat6 run.
• G.722 Wideband Audio: G.722 delivers noticeably cleaner voice clarity compared to G.711 narrowband, which is a practical differentiator on high-ambient-noise sites — loading docks, equipment rooms, and outdoor entries near HVAC equipment where call intelligibility is a real operational concern.
• PoE Class 2 Under 6.5W: Draws under 6.5W from a standard 802.3af port — well within budget for densely populated switches. A single Cat5e or Cat6 run handles power, voice, and data. No conduit run for AC power, no J-box at the entry point.

Deployment Considerations:

• The EWP rough-in box adds 0.86 inches of depth (5.61 inches total) versus the phone-only profile (4.75 inches) — verify rough-in box depth clearance before ordering if you're retrofitting into an existing wall cutout or surface-mount backbox.
• The 14 gel-filled butt connectors in the package are there for a reason — outdoor cable splices that aren't gel-sealed will wick moisture into the termination within one wet season. Use them on every field splice, not just on runs exposed to direct rain.

This unit is the correct specification for transit authority entry points, correctional facility perimeter phones, utility substation gates, and any outdoor installation where the phone will see real weather, real use, and deliberate abuse — environments where a commercial-grade indoor SIP phone would require replacement within the first year.
