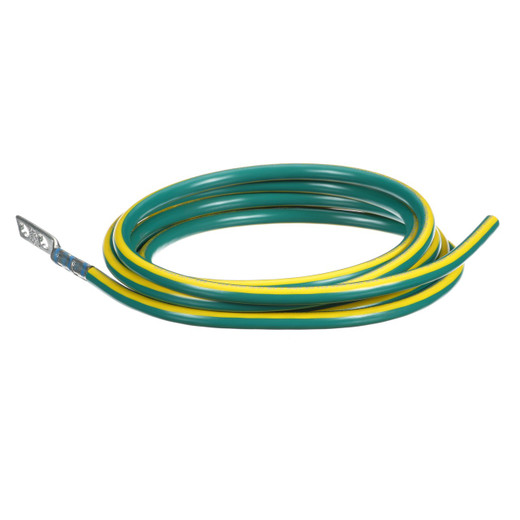

Panduit RGREJ696Y 6 AWG 96" Grounding Jumper Kit

Panduit RGREJ696Y StructuredGround™ Equipment Grounding Jumper

The Panduit RGREJ696Y is a 6 AWG (16mm²) equipment grounding jumper engineered for high-integrity bonding in data centers, telecom installations, and equipment racks. At 96 inches (2.44 meters), this factory-terminated jumper provides the reach needed for rack-to-busbar connections, cabinet-to-cabinet bonds, or equipment-to-ground-bar installations. One end arrives with a professionally crimped compression lug, eliminating field termination errors and reducing install time. The kit includes antioxidant compound and a complete hardware assortment—ensuring NEC Article 250 and TIA-607-C compliance right out of the box.

Key Features

• 6 AWG stranded copper conductor: 16mm² cross-section delivers the ampacity and low impedance required for protective earth connections in critical infrastructure
• 96-inch working length: 2.44-meter reach spans typical rack-to-busbar distances and accommodates retrofit installations without cable management headaches
• Factory-terminated compression lug: One end pre-crimped to a tinned copper lug—no field tools, no cold-flow risk, no inspector red-flags
• Antioxidant compound included: 5cc (0.16 oz) tin-based inhibitor prevents galvanic corrosion at aluminum and copper interfaces, maintaining bond integrity over equipment lifespan
• Universal hardware kit: Includes #12-24 × 1/2", M6 × 12mm, #10-32 × 1/2", and M5 × 12mm thread-forming screws—covers NEMA 19" racks, DIN rails, European cabinets, and OEM equipment taps
• StructuredGround™ system component: Integrates with Panduit's family of ground bars, busbar systems, and rack grounding solutions for end-to-end low-impedance paths
• Green/yellow PVC jacket: IEC 60446 and NEC-compliant protective earth color-coding—eliminates field ambiguity during inspections and maintenance

Data center and telecom integrators recognize that grounding isn't optional—it's the foundation of equipment protection, signal integrity, and personnel safety. The RGREJ696Y addresses the three most common install pain points: termination consistency (factory lug), corrosion management (included antioxidant), and hardware compatibility (four screw types). Whether you're bonding a new UPS lineup to a vertical busbar, retrofitting ground paths into legacy 2-post racks, or meeting local AHJ interpretations of TIA-607-C multi-point grounding, this jumper ships with everything required for a code-compliant connection.

The 6 AWG gauge strikes the balance between flexibility and current-carrying capacity. At 96 inches, you have enough slack for routing around cable trays and strain relief loops without excess that invites snagging or inductance. The factory-applied lug uses a hex crimp die and post-crimp inspection—methods field crimpers rarely match under schedule pressure. Antioxidant compound is often the forgotten step that turns a good install into a 20-year install; Panduit includes it with a measured 5cc applicator, enough for two connection points per jumper.

The hardware assortment deserves emphasis: #12-24 thread-formers fit most NEMA rack knockouts and painted-steel ground lugs; M6 screws land on European-standard bus bars and DIN-mount ground blocks; #10-32 fasteners work with legacy telco frames and smaller equipment taps; M5 hardware covers compact switches and power strips with metric threads. You're not hunting for the right screw mid-install or improvising with mismatched fasteners that fail torque spec. Panduit StructuredGround™ components are engineered as a system—ground bars, jumpers, and hardware designed together so inspectors see intent, not improvisation.

This jumper is a retrofit-kit staple because one end is open: strip the jacket, apply antioxidant, and land it on a lug, busbar hole, or compression connector sized to your target. For integrators working in operating data centers where you can't shut down a row to drill and tap, the RGREJ696Y gives you a pre-made low-impedance path that installs in minutes, not hours. Pair it with Panduit GBES-series ground bars for horizontal distribution or vertical GBRS bars for in-rack equipment bonds—every component shares the same engineering standard for contact resistance and mechanical retention.

Compliance checkpoint: NEC 250.96(A) requires that metal raceways, cable trays, and equipment enclosures be bonded with an equipment grounding conductor sized per 250.122. TIA-607-C specifies that telecommunications bonding conductors meet minimum gauge requirements and that all connections use listed hardware with antioxidant where dissimilar metals meet. The RGREJ696Y's 6 AWG conductor, factory-listed lug, included compound, and UL-recognized hardware check every box. When the inspector pulls your grounding plan, this jumper shows that you specified components purpose-built for the job—not repurposed welding cable and random fasteners.
