Panduit GJS696U Equipment Bonding Jumper
Overview

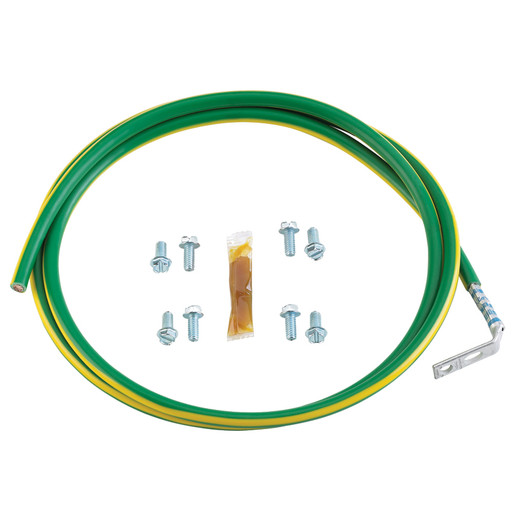

The Panduit GJS696U is a 6 AWG (16 mm²) equipment bonding jumper designed for grounding switches, cabinets, and 4-post racks in telecom and data center environments. It features a green wire with a yellow horizontal stripe for clear identification and comes factory-terminated on one end with an LCC6-14JAW-L lug, simplifying installation and ensuring proper connection. This jumper is crucial for establishing a reliable ground path, mitigating electrical hazards, and ensuring the stable operation of sensitive network equipment.
Compatibility
This jumper is specifically designed for use with 4-post racks and cabinets commonly found in telecom facilities and data centers. The LCC6-14JAW-L lug is suitable for terminating onto standard grounding studs or busbars found on network switches, servers, and rack frames. Its 96-inch length provides ample reach for most standard rack configurations, allowing for flexible placement without excessive slack.
Installation Notes
The GJS696U features a factory-terminated lug on one end, requiring only the termination of the other end. Ensure the termination point on the equipment or rack frame is clean and free of debris. The 6 AWG conductor size is appropriate for standard equipment grounding requirements in data centers. The jumper's overall length is 96 inches.
What's in the Box
- 1x Panduit GJS696U 6 AWG Equipment Bonding Jumper (96" length)
- 1x LCC6-14JAW-L Lug (factory terminated on one end)
