Panduit EV14-6LFB-Q 16-14 AWG #6 Fork Terminal

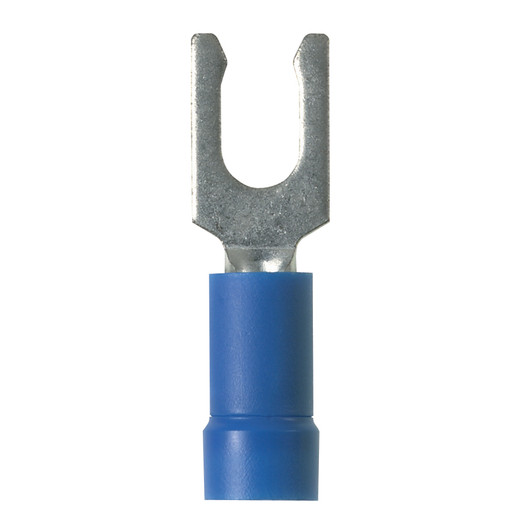

Panduit EV14-6LFB-Q StrongHold Fork Terminal

The Panduit EV14-6LFB-Q is a vinyl-insulated fork terminal engineered for 16-14 AWG wire terminations to #6 studs in access control panels, fire alarm circuits, and low-voltage power distribution. Part of Panduit's StrongHold lineup, this terminal features a mechanical locking tab that prevents wire pullout under vibration or torque stress — critical for commercial security installations where loose connections trigger false alarms or system downtime. Zinc-plated barrel construction resists corrosion in HVAC closets and outdoor-rated enclosures, and UL 587-H listing ensures compliance with NEC Article 110.3(B) for AHJ inspections. Sold in 25-piece contractor packs with 250-unit carton availability for volume jobs.

Key Features

• StrongHold locking tab prevents wire withdrawal after crimp — eliminates service callbacks from vibration-loosened connections in door controllers and power supplies
• 16-14 AWG wire range handles typical low-voltage security cable (18/2, 22/4 bundled pairs) with one terminal size — reduces inventory SKUs for install crews
• #6 screw compatibility fits standard barrier strips in Altronix, DMP, and Honeywell control panels without adapter hardware
• Vinyl insulation rated UL 587-H covers barrel and fork — prevents shorts in crowded junction boxes where terminals stack on multi-tap studs
• Zinc-plated copper barrel delivers 0.9" overall length and 0.25" width for tight-clearance panel mounting without interference
• UL E52164 and CSA LR31212 certifications satisfy NEC 110.3(B) and CEC 2-024 for commercial electrical inspections

The EV14-6LFB-Q addresses a recurring field problem: fork terminals that pull free under mechanical stress. Security technicians torque #6 screws to 7-9 in-lbs per manufacturer specs, but standard non-locking forks can slip off studs during panel vibration (HVAC equipment, door slams) or when adjacent wires tug during service. Panduit's StrongHold tab locks onto the barrel crimp, creating a secondary retention point independent of the screw clamp. This design survives UL 486A-486B pull tests at 35 lbs for 14 AWG — 3× the force of a technician accidentally snagging a wire during panel work. Vinyl insulation extends past the barrel crimp to cover the wire transition zone, preventing copper exposure where insulation stripping leaves the conductor vulnerable. The 0.9" overall length fits inside shallow 4" junction boxes alongside other terminals without stacking interference, and the 0.25" fork width clears #6 screws with 0.020" tolerance for easy installation even when studs are pre-mounted in crowded barrier strips.

Wire gauge compatibility spans 16-14 AWG, covering the majority of access control and intrusion wiring: 18/2 for door contacts and request-to-exit devices, 22/4 for card readers, and 16/2 for magnetic locks and power distribution. Installers stock one terminal size instead of separate SKUs for each gauge, and the zinc-plated finish resists galvanic corrosion when copper wire meets steel panel hardware in high-humidity environments (parking garage electrical rooms, coastal installations). The blue vinyl insulation (standard for 16-14 AWG per ANSI/NEMA WC 27500) color-codes wire gauge at a glance during troubleshooting, and the insulation's 221°F rating (UL 587-H flammability standard) prevents melting during soldering of adjacent connections or high-current transient events.

Compatible with Panduit's CT-series crimp tools (CT-100A hand tool, CT-600A ratchet tool, CT-1550/1551 hydraulic tools, and CT-2500 battery tool) for proper barrel compression — critical because under-crimped terminals fail UL pull tests and over-crimped barrels crack the conductor strands. The 25-piece contractor pack ships in a resealable bag for van stock, and the 250-unit carton (10 bags) supports multi-building projects like university campus access control retrofits or multi-tenant office build-outs. Meets UL 587-H and CSA C22.2 requirements for low-voltage control circuits, satisfying NEC 725.179(E) Class 2/3 wiring methods and ensuring acceptance during final electrical inspection on commercial security installations.
