Panduit JP2SBC50RB-L20 Rotating J-Hook Beam Clamp

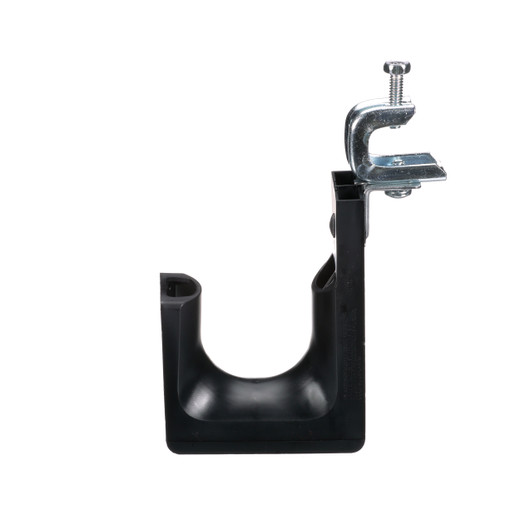

Panduit JP2SBC50RB-L20 StrongHold Rotating J-Hook with Beam Clamp

The Panduit JP2SBC50RB-L20 delivers engineered bend radius protection for high-performance structured cabling in air handling spaces. This rotating beam clamp J-Hook addresses the critical failure point in overhead pathway installations: pinch-induced signal degradation at support points. The patented design maintains complete 1" horizontal and vertical bend radius control across the entire support surface, preventing the cable deformation that causes Category 6A and fiber performance drops. UL listed for plenum use (cULus), the JP2SBC50RB-L20 mounts to flanges up to 0.5" thick with screw-on hardware, rotates 360 degrees for alignment during pulls, and supports bundle diameters to 2.0" (50.8mm). Sold in 50-unit contractor packs for large-scale datacenter, campus, or commercial deployments where maintaining installed cable specs is non-negotiable.

Key Features

• Patented 1" bend radius control — eliminates pinch points that degrade Cat 6A and fiber performance at support locations
• 360-degree rotation — aligns J-Hook orientation after mounting, simplifies pulls in congested ceiling grids
• Screw-on beam clamp design — mounts to flanges up to 0.5" (12.7mm) thick without drilling structural steel
• UL listed for air handling spaces — cULus compliant for plenum installation, RoHS compliant materials
• 2.0" (50.8mm) bundle capacity — supports high-density trunk runs, typical 24-48 Cat 6A cable loads
• Nylon 6.6 construction with metal hardware — corrosion-resistant, lightweight, non-conductive body rated for HVAC environments
• Smooth pulling surface — no burrs or sharp edges that abrade cable jackets during installation

Overhead pathway installations fail when support hardware creates localized bend radius violations. Standard J-Hooks with sharp transitions or inadequate throat geometry compress cable bundles at the contact point, introducing return loss and insertion loss that shows up in certification sweeps but not in pre-install planning. The JP2SBC50RB-L20 solves this with a formed support profile that distributes load across a 1" radius curve on both horizontal and vertical planes. For Category 6A installations targeting 10GBASE-T over 100 meters, this controlled geometry is the difference between marginal pass and 3dB headroom. Fiber trunk runs see the same benefit: no microbending attenuation from point-load stress. The rotating base allows installers to mount the clamp in the most accessible orientation, then spin the J-Hook to the optimal cable entry angle after the bundle is dressed — critical in tight ceiling grids where you can't predict pull direction until cables are in place.

The screw-on beam clamp design targets structural flanges in metal deck ceilings, bar joist construction, and rack overhead cable trays. Unlike spring-clip or toggle mounts that work loose under vibration or thermal cycling, the threaded clamp maintains constant tension on flanges from 0.25" to 0.5" thick. Installation is two screws per J-Hook; no drilling into fire-rated structure, no penetrations that require firestop. Nylon 6.6 material is specified for its plenum rating, mechanical strength at temperature extremes (-40°F to +185°F continuous), and non-conductive properties — safe for mounting near energized electrical runs in shared pathways. The metal clamp hardware is zinc-plated steel, resistant to HVAC condensation and chemical exposure from duct liner offgassing. Each J-Hook supports bundles to 2.0" diameter; for reference, a 48-cable Cat 6A bundle dressed in ladder-lay configuration measures approximately 1.8" OD. This contractor pack of 50 units is sized for typical datacenter row deployments (16-20 racks at 2-3 J-Hooks per overhead run) or mid-rise office floor build-outs (4-6 IDF closets with 6-10 pathway supports each).

Specified for structured cabling installations requiring TIA-568 bend radius compliance and UL-listed plenum support hardware. Integrators running high-density Category 6A or OM3/OM4 fiber in air handling spaces will recognize this as the standard Panduit StrongHold solution for maintaining installed cable performance across the full pathway — from cable tray exit to above-ceiling horizontal distribution. The JP2SBC50RB-L20 meets the BICSI TDMM recommendation for continuous support at 4-5 foot intervals on horizontal runs and bend radius protection at all direction changes. Contractor packs reduce per-unit cost on large projects and eliminate mid-job reordering delays.
